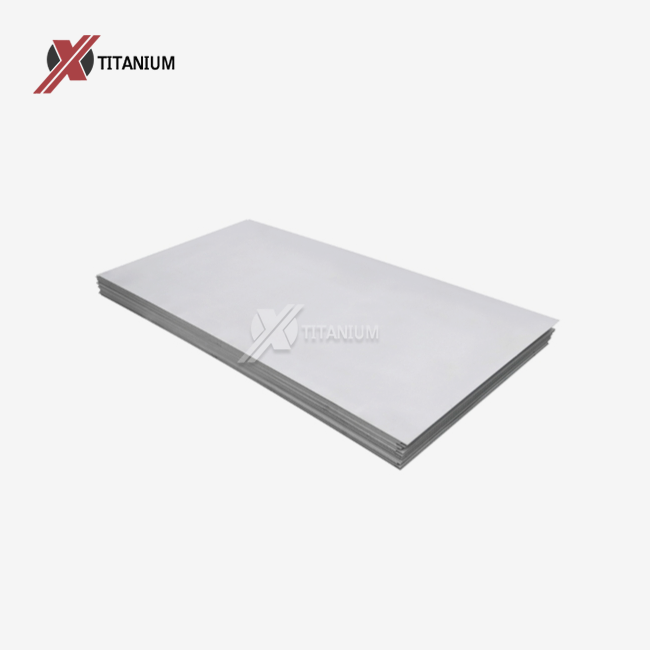

Fundamentals of 6Al 4V Titanium Plate Heat Treatment
The 6Al 4V titanium plate, composed of 90% titanium, 6% aluminum, and 4% vanadium, is renowned for its exceptional strength-to-weight ratio and corrosion resistance. Heat treatment processes for this alloy are designed to optimize its microstructure, thereby enhancing its mechanical properties. The primary heat treatment methods applied to 6Al 4V titanium plate include solution treatment, aging, and stress relieving.
Solution Treatment
Solution treatment involves heating the 6Al 4V titanium plate to temperatures above its beta transus point, typically around 995°C (1823°F). At this temperature, the alpha phase dissolves into the beta phase, creating a homogeneous microstructure. The plate is then rapidly cooled or quenched, usually in water, to lock in this structure. This process results in a supersaturated solid solution, which forms the basis for subsequent strengthening mechanisms.
Aging
Following solution treatment, the 6Al 4V titanium plate undergoes aging, also known as precipitation hardening. This process involves heating the alloy to intermediate temperatures, usually between 480°C and 595°C (896°F to 1103°F), for specific durations. During aging, fine precipitates form within the microstructure, significantly increasing the strength and hardness of the material. The precise temperature and duration of aging can be adjusted to achieve the desired balance between strength and ductility.
Stress Relieving
Stress relieving is a crucial step in the heat treatment of 6Al 4V titanium plate, particularly for components that have undergone machining or forming operations. This process involves heating the plate to moderate temperatures, typically between 480°C and 650°C (896°F to 1202°F), and holding it for a specified time before slow cooling. Stress relieving helps to reduce internal stresses that may have accumulated during manufacturing, thereby improving dimensional stability and reducing the risk of warpage or distortion in service.
Impact of Heat Treatment on Mechanical Properties
The heat treatment of 6Al 4V titanium plate significantly influences its mechanical properties, allowing manufacturers to tailor the material's performance to specific application requirements. By carefully controlling the heat treatment parameters, it is possible to achieve a wide range of property combinations, balancing strength, ductility, and fatigue resistance.
Strength and Hardness
Heat treatment can dramatically increase the strength and hardness of 6Al 4V titanium plate. Solution treatment followed by aging can result in tensile strengths exceeding 1100 MPa and yield strengths of over 1000 MPa. This represents a substantial improvement over the annealed condition, where typical tensile strengths are around 900 MPa. The increased strength is primarily due to the formation of fine alpha and beta precipitates during the aging process, which impede dislocation movement within the material's crystal structure.
Ductility and Toughness
While heat treatment can significantly enhance the strength of 6Al 4V titanium plate, it often comes at the cost of reduced ductility. The extent of this trade-off depends on the specific heat treatment parameters employed. For instance, over-aging can lead to a coarsening of precipitates, resulting in improved ductility but at the expense of some strength. Balancing these properties is crucial for applications requiring both high strength and adequate toughness, such as in aerospace components subjected to cyclic loading.
Fatigue Resistance
Heat treatment plays a vital role in optimizing the fatigue resistance of 6Al 4V titanium plate. The fatigue performance is closely linked to the microstructure developed during heat treatment. Fine, evenly distributed alpha and beta phases typically result in superior fatigue properties. Solution treatment followed by controlled cooling and aging can produce a microstructure that effectively resists crack initiation and propagation, leading to enhanced fatigue life. This is particularly important for applications involving cyclic loading, such as aircraft structural components or medical implants.
Microstructural Evolution During Heat Treatment
The remarkable changes in mechanical properties observed in 6Al 4V titanium plate after heat treatment are directly linked to transformations in its microstructure. Understanding these microstructural evolutions is key to developing optimized heat treatment protocols for specific applications.
Phase Transformations
During solution treatment, the 6Al 4V titanium plate undergoes a significant phase transformation. As the temperature rises above the beta transus, the alpha phase (hexagonal close-packed structure) transforms into the beta phase (body-centered cubic structure). Upon rapid cooling, this high-temperature beta phase partially transforms back to alpha, resulting in a complex microstructure consisting of primary alpha, transformed beta, and retained beta phases. The relative proportions and morphologies of these phases significantly influence the alloy's properties.
Precipitation Mechanisms
The aging process in 6Al 4V titanium plate involves the controlled precipitation of fine particles within the microstructure. These precipitates, primarily consisting of Ti3Al (alpha-2 phase) in the alpha phase and fine alpha particles in the beta phase, act as obstacles to dislocation movement. The size, distribution, and coherency of these precipitates are critical factors determining the alloy's strength and ductility. Optimal aging conditions produce a uniform dispersion of fine, coherent precipitates that maximize strength while maintaining acceptable ductility.
Grain Structure and Morphology
Heat treatment also affects the grain structure and morphology of 6Al 4V titanium plate. The solution treatment temperature and cooling rate influence the size and shape of the alpha and beta grains. Rapid cooling from above the beta transus can result in a fine, acicular alpha structure within prior beta grains, known as a martensitic structure. This microstructure offers high strength but limited ductility. Conversely, slower cooling rates or lower solution treatment temperatures can produce a more equiaxed alpha structure with improved ductility. The ability to control grain structure through heat treatment allows for tailoring of the 6Al 4V titanium plate's properties to meet specific application requirements.
Conclusion
The heat treatment of 6Al 4V titanium plate is a sophisticated process that profoundly influences its mechanical and microstructural properties. Through careful manipulation of solution treatment, aging, and stress relieving parameters, manufacturers can tailor the alloy's performance to meet diverse application needs. The intricate balance between strength, ductility, and fatigue resistance achieved through heat treatment makes 6Al 4V titanium plate an indispensable material in aerospace, medical, and industrial sectors. As research in heat treatment techniques continues to advance, we can expect further refinements in property optimization, potentially expanding the already wide-ranging applications of this versatile alloy.
At Baoji Chuanglian New Metal Material Co., Ltd., we specialize in producing high-quality 6Al 4V titanium plate with customized heat treatment solutions to meet your specific requirements. With over a decade of experience in titanium product manufacturing and research, we offer unparalleled expertise in delivering 6Al 4V titanium plate that excels in performance across various applications. For more information or to discuss your titanium needs, please contact us at info@cltifastener.com or djy6580@aliyun.com.
FAQ
What are the key benefits of heat treating 6Al 4V titanium plate?
Heat treatment enhances strength, improves fatigue resistance, and allows for property customization to suit specific applications.
How does heat treatment affect the corrosion resistance of 6Al 4V titanium plate?
While heat treatment primarily affects mechanical properties, it generally maintains the excellent corrosion resistance inherent to the alloy.
Can 6Al 4V titanium plate be re-heat treated to modify its properties?
Yes, 6Al 4V titanium plate can be re-heat treated, allowing for property adjustments if needed during the product lifecycle.
