Understanding the Properties of Titanium Square Rod
Composition and Characteristics

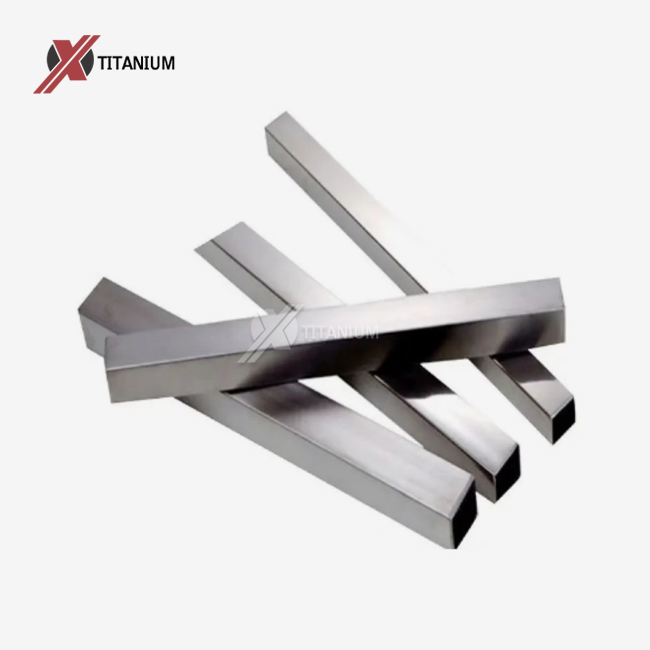

Titanium square rod, particularly Grade 5 (Ti-6Al-4V), is an alloy composed of titanium, aluminum, and vanadium. This composition results in a material with a remarkable combination of properties, including high strength, low density, and excellent corrosion resistance. The unique crystal structure of titanium contributes to its low thermal conductivity and high chemical reactivity, which directly impact machining processes.
Mechanical Behavior During Machining
When subjected to machining operations, titanium square rod exhibits distinctive behavior. Its low modulus of elasticity causes the material to spring back and deflect under cutting forces, leading to potential dimensional inaccuracies. Additionally, the high strength of titanium maintains its integrity even at elevated temperatures, resisting plastic deformation during cutting. These characteristics necessitate careful consideration when selecting machining parameters and tooling.
Advanced Machining Techniques for Titanium Square Rod
High-Speed Machining (HSM)
High-speed machining has emerged as an effective technique for processing titanium square rod. By increasing cutting speeds and feed rates while reducing depth of cut, HSM minimizes heat buildup in the cutting zone. This approach not only enhances productivity but also mitigates tool wear and improves surface finish. Implementing HSM requires rigid machine tools, balanced cutting tools, and optimized toolpaths to manage the increased forces and vibrations associated with high-speed operations.
Cryogenic Cooling
Cryogenic cooling represents an innovative solution to the heat management challenges in titanium machining. By applying super-cooled gases such as liquid nitrogen directly to the cutting zone, this technique dramatically reduces cutting temperatures. The cryogenic environment suppresses chemical reactions between the tool and workpiece, extending tool life and enabling higher cutting speeds. Moreover, cryogenic cooling can improve surface integrity by minimizing the formation of the heat-affected zone in the machined titanium square rod.
Ultrasonic-Assisted Machining
Ultrasonic-assisted machining integrates high-frequency vibrations into conventional cutting processes. When applied to titanium square rods, this advanced technique improves machining efficiency by promoting chip breaking and reducing cutting forces. The intermittent contact between the cutting tool and workpiece enhances coolant penetration, prevents heat buildup, and facilitates chip evacuation. Ultrasonic assistance is especially valuable in drilling and milling operations on titanium, where it not only improves surface finish and hole accuracy but also extends tool life, reduces wear, and minimizes machining-induced residual stresses.
Optimizing Tool Selection and Parameters
Cutting Tool Materials and Coatings
Selecting appropriate cutting tool materials is crucial for successful titanium machining. Carbide tools with cobalt binders offer a good balance of hardness and toughness, while polycrystalline diamond (PCD) tools excel in finish machining operations. Advanced coatings such as TiAlN and AlCrN provide enhanced wear resistance and thermal stability. When machining titanium square rod, tools with positive rake angles and sharp cutting edges are preferred to minimize work hardening and improve chip formation.
Cutting Parameters Optimization
Optimizing cutting parameters is essential for balancing productivity and tool life when machining titanium square rod. Generally, moderate cutting speeds, high feed rates, and shallow depths of cut are recommended. This strategy maintains cutting temperatures within acceptable limits and promotes stable chip formation. Implementing adaptive feed control systems can dynamically adjust machining parameters based on real-time monitoring of cutting forces and vibrations, ensuring consistent performance throughout the machining cycle.
Toolpath Strategies
Developing effective toolpath strategies is critical for maximizing the efficiency of titanium square rod machining. Trochoidal milling, which combines circular tool motions with linear feed, has demonstrated significant advantages in machining titanium. This method maintains a constant tool engagement angle, minimizing cutting forces and reducing heat generation, which is crucial for preserving tool life. High-efficiency milling techniques further optimize material removal by utilizing the full flute length of end mills while limiting radial engagement. These approaches enhance productivity, improve surface quality, and reduce the risk of tool wear, making them essential for precise and cost-effective titanium machining.
Conclusion
Machining titanium square rod presents unique challenges that demand innovative solutions and meticulous planning. By leveraging advanced techniques such as high-speed machining, cryogenic cooling, and ultrasonic-assisted machining, manufacturers can overcome the inherent difficulties associated with titanium's properties. Careful selection of cutting tools, optimization of machining parameters, and implementation of sophisticated toolpath strategies further enhance the efficiency and quality of titanium machining operations. As industries continue to push the boundaries of material performance, mastering the art of machining titanium square rod becomes increasingly crucial for maintaining competitiveness in high-tech manufacturing sectors.
If you're looking for high-quality titanium square rod or need expert advice on machining titanium products, Baoji Chuanglian New Metal Material Co., Ltd. is here to help. With over a decade of experience in titanium product manufacturing and research, we offer a wide range of titanium solutions for various industries. Contact us at info@cltifastener.com or djy6580@aliyun.com to discuss your titanium square rod requirements and discover how we can support your projects with our expertise and top-quality products.
FAQ
What are the main challenges in machining titanium square rod?
The main challenges include high tool wear, heat buildup, and work hardening due to titanium's low thermal conductivity and high strength-to-weight ratio.
How does cryogenic cooling improve titanium machining?
Cryogenic cooling reduces cutting temperatures, extends tool life, and improves surface integrity by minimizing chemical reactions between the tool and workpiece.
What cutting tool materials are best for machining titanium square rod?
Carbide tools with cobalt binders and polycrystalline diamond (PCD) tools are effective for machining titanium, especially when coated with advanced materials like TiAlN or AlCrN.
References
1. Ezugwu, E. O., & Wang, Z. M. (1997). Titanium alloys and their machinability—a review. Journal of Materials Processing Technology, 68(3), 262-274.
2. Bermingham, M. J., Palanisamy, S., & Dargusch, M. S. (2012). Understanding the tool wear mechanism during thermally assisted machining Ti-6Al-4V. International Journal of Machine Tools and Manufacture, 62, 76-87.
3. Shokrani, A., Dhokia, V., & Newman, S. T. (2016). Investigation of the effects of cryogenic machining on surface integrity in CNC end milling of Ti–6Al–4V titanium alloy. Journal of Manufacturing Processes, 21, 172-179.
4. Ulutan, D., & Ozel, T. (2011). Machining induced surface integrity in titanium and nickel alloys: A review. International Journal of Machine Tools and Manufacture, 51(3), 250-280.
5. Veiga, C., Davim, J. P., & Loureiro, A. J. R. (2013). Properties and applications of titanium alloys: A brief review. Reviews on Advanced Materials Science, 32(2), 133-148.
