Understanding Grade 5 Titanium Plate Properties
Composition and Characteristics

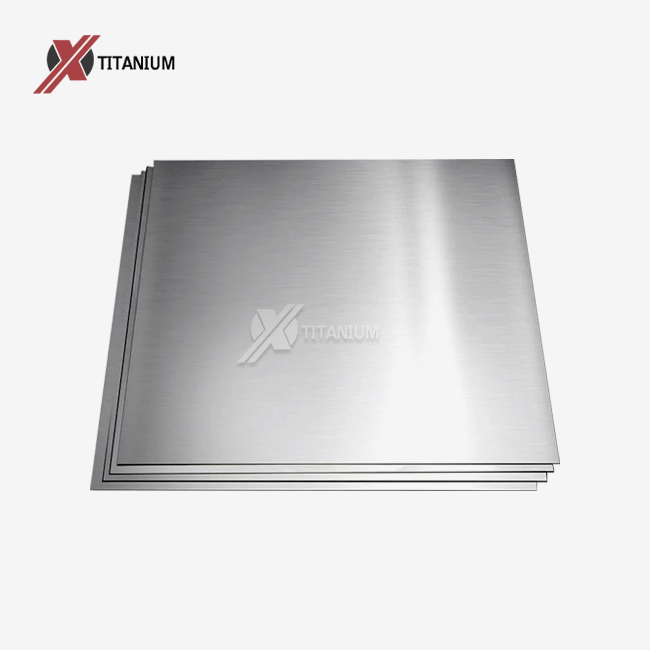

Grade 5 titanium plates, composed of 90% titanium, 6% aluminum, and 4% vanadium, boast a unique combination of properties that make them highly sought after in various industries. This alloy exhibits remarkable strength-to-weight ratio, surpassing many other metals in this aspect. The addition of aluminum and vanadium to pure titanium enhances its mechanical properties, resulting in a material that is both strong and lightweight.
One of the standout features of grade 5 titanium plates is their exceptional corrosion resistance. This characteristic stems from the formation of a stable oxide layer on the surface, which provides protection against various corrosive environments. This makes grade 5 titanium plates particularly suitable for applications in marine, chemical, and aerospace industries where exposure to harsh conditions is common.
Mechanical Properties
The mechanical properties of grade 5 titanium plates are truly impressive. With a tensile strength of approximately 900 MPa and a yield strength of around 800 MPa, these plates offer superior load-bearing capabilities. The material's elastic modulus, which measures its stiffness, is about 114 GPa, providing a good balance between rigidity and flexibility.
Grade 5 titanium plates also demonstrate excellent fatigue resistance, making them ideal for applications involving cyclic loading. This property, combined with their high strength-to-weight ratio, explains their widespread use in aerospace and automotive industries where weight reduction and durability are crucial.
Thermal and Electrical Characteristics
When it comes to thermal properties, grade 5 titanium plates exhibit relatively low thermal conductivity compared to other metals. This characteristic can be advantageous in applications where heat insulation is desired. The material's coefficient of thermal expansion is also lower than that of many other metals, which contributes to its dimensional stability across a wide range of temperatures.
In terms of electrical properties, grade 5 titanium plates have a higher electrical resistivity compared to pure titanium. While not typically used as an electrical conductor, this property can be beneficial in certain specialized applications where electrical insulation is required.
Applications of Grade 5 Titanium Plates
Aerospace and Aviation
The aerospace industry is one of the primary consumers of grade 5 titanium plates. These plates are utilized in various aircraft components, including airframes, engine parts, and structural elements. The material's high strength-to-weight ratio allows for the construction of lighter aircraft, which in turn leads to improved fuel efficiency and performance.
In spacecraft and satellite applications, grade 5 titanium plates play a crucial role due to their ability to withstand extreme temperature variations and resist the corrosive effects of atomic oxygen in low Earth orbit. From propulsion systems to structural components, these plates contribute significantly to the reliability and longevity of space vehicles.
Medical and Biomedical Engineering
The biocompatibility of grade 5 titanium plates makes them an excellent choice for medical implants and prosthetics. These plates are used in orthopedic applications such as bone plates, dental implants, and joint replacements. The material's ability to osseointegrate, or bond with bone tissue, coupled with its corrosion resistance in bodily fluids, ensures long-lasting and reliable medical devices.
In the field of biomedical engineering, grade 5 titanium plates are employed in the development of advanced medical equipment and instruments. From surgical tools to components in medical imaging devices, these plates offer the necessary strength and durability while minimizing the risk of allergic reactions in patients.
Marine and Chemical Industries
The exceptional corrosion resistance of grade 5 titanium plates makes them invaluable in marine and chemical applications. In shipbuilding, these plates are used for propeller shafts, heat exchangers, and other components exposed to seawater. Their resistance to pitting and crevice corrosion ensures prolonged service life even in harsh marine environments.
Chemical processing plants benefit from the use of grade 5 titanium plates in reactors, storage tanks, and piping systems. The material's ability to withstand a wide range of corrosive chemicals, including chlorine compounds and organic acids, makes it an ideal choice for handling aggressive substances. This resistance not only enhances safety but also reduces maintenance costs and downtime in chemical processing facilities.
Factors to Consider When Selecting Grade 5 Titanium Plates
Project-Specific Requirements
When selecting grade 5 titanium plates for your project, it's crucial to carefully evaluate the specific requirements of your application. Consider factors such as the expected load-bearing capacity, operating temperature range, and exposure to corrosive substances. By clearly defining these parameters, you can ensure that the chosen titanium plates will meet the performance demands of your project.
It's also important to consider any regulatory standards or industry-specific certifications that may apply to your project. For instance, aerospace applications may require compliance with specific standards set by organizations like the Federal Aviation Administration (FAA) or the European Aviation Safety Agency (EASA).
Dimensional Considerations
The dimensions of the grade 5 titanium plates you select can significantly impact your project's success. Consider the required thickness, width, and length of the plates, keeping in mind any limitations imposed by your manufacturing or assembly processes. It's worth noting that while standard sizes are readily available, many suppliers offer custom dimensions to meet specific project needs.
When determining the optimal plate thickness, factor in not only the structural requirements but also weight considerations, especially for applications where minimizing overall weight is crucial. The ability to achieve the desired strength with thinner plates is one of the advantages of using grade 5 titanium.
Surface Finish and Treatment Options
The surface finish of grade 5 titanium plates can affect both their appearance and performance. Common finish options include mill finish, polished, brushed, and various degrees of surface roughness. The choice of finish depends on factors such as aesthetic requirements, friction considerations, and the need for further surface treatments.
Consider whether additional surface treatments are necessary for your application. Anodizing, for example, can enhance the already excellent corrosion resistance of grade 5 titanium plates while also allowing for color customization. Heat treatments can be employed to modify the material's mechanical properties, tailoring them to specific project requirements.
Cost and Availability Considerations
While grade 5 titanium plates offer superior performance in many applications, it's important to evaluate the cost implications within the context of your project budget. Consider not only the initial material cost but also potential long-term savings due to the material's durability and low maintenance requirements.
Availability and lead times are also crucial factors to consider. Working with reputable suppliers who maintain adequate stock levels and offer reliable delivery timelines can help ensure your project stays on schedule. For projects requiring large quantities or specialized dimensions, it may be beneficial to discuss your needs with suppliers well in advance to avoid potential delays.
Conclusion
Selecting the ideal grade 5 titanium plates for your project requires a comprehensive understanding of the material's properties and careful consideration of your specific application requirements. By evaluating factors such as mechanical properties, dimensional needs, surface finish options, and cost considerations, you can make an informed decision that optimizes performance and value. The versatility and exceptional characteristics of grade 5 titanium plates make them a superior choice for a wide range of industries, from aerospace and medical to marine and chemical processing. As technology advances and new applications emerge, the importance of grade 5 titanium plates in innovative engineering solutions is likely to grow even further.
If you're looking for high-quality grade 5 titanium plates for your next project, look no further than Baoji Chuanglian New Metal Material Co., Ltd. With over a decade of experience in titanium manufacturing and processing, we offer unparalleled expertise and a wide range of titanium products to meet your specific needs. Contact us today at info@cltifastener.com or djy6580@aliyun.com to discuss how our grade 5 titanium plates can contribute to the success of your project.
References
1. Leyens, C., & Peters, M. (2003). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH.
2. Donachie, M. J. (2000). Titanium: A Technical Guide (2nd ed.). ASM International.
3. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
4. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium Alloys for Aerospace Applications. Advanced Engineering Materials, 5(6), 419-427.
5. Rack, H. J., & Qazi, J. I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
