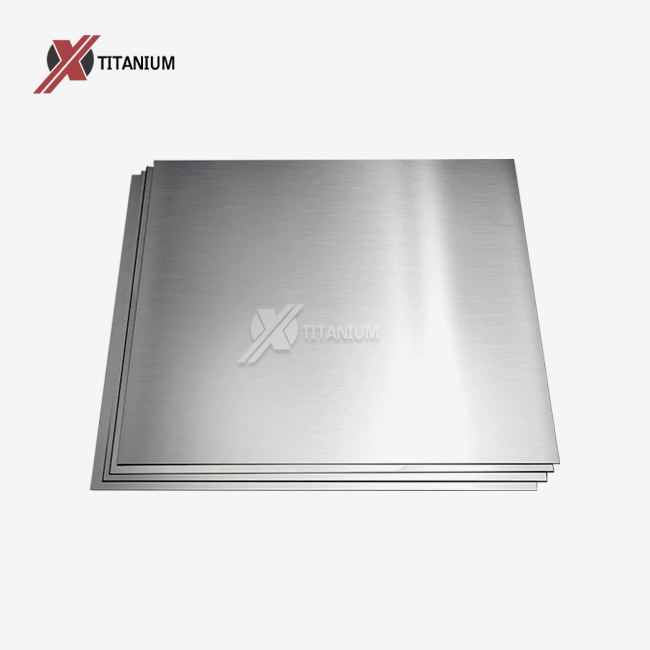

Properties and Advantages of Grade 5 Titanium Plate in Aerospace Applications
Grade 5 titanium plate possesses a unique combination of properties that make it invaluable in aerospace engineering. Its high strength-to-weight ratio allows for the construction of lighter yet robust aircraft structures, contributing to fuel efficiency and improved performance. The material's excellent corrosion resistance ensures longevity in harsh environments, reducing maintenance requirements and enhancing safety.
Moreover, Grade 5 titanium plate exhibits remarkable heat resistance, maintaining its structural integrity at elevated temperatures. This characteristic is particularly crucial for engine components and supersonic aircraft parts exposed to extreme thermal conditions. The material's low thermal expansion coefficient also contributes to dimensional stability, a critical factor in precision aerospace engineering.
Another significant advantage of Grade 5 titanium plate is its compatibility with composite materials, facilitating the creation of advanced hybrid structures in modern aircraft design. This compatibility allows for innovative manufacturing techniques, such as diffusion bonding and superplastic forming, which enable the production of complex, lightweight components.
Mechanical Properties and Performance
The mechanical properties of Grade 5 titanium plate are impressive, with a typical tensile strength of approximately 900 MPa and a yield strength of around 800 MPa. These values can vary depending on the specific heat treatment and processing methods employed. The material's high strength-to-density ratio surpasses that of many steel alloys, making it an ideal choice for weight-critical aerospace applications.
Grade 5 titanium plate also demonstrates excellent fatigue resistance, a crucial property for components subjected to cyclic loading during flight. This characteristic ensures the longevity of critical aircraft parts, reducing the risk of structural failures and enhancing overall safety. Additionally, the material's good fracture toughness provides resistance to crack propagation, further contributing to the reliability of aerospace structures.
Manufacturing Processes for Grade 5 Titanium Plate in Aerospace Components
The production of aerospace components using Grade 5 titanium plate involves sophisticated manufacturing processes to ensure the highest quality and performance standards. Advanced techniques such as precision forging, CNC machining, and additive manufacturing are employed to create complex geometries while maintaining tight tolerances.
One of the key challenges in working with Grade 5 titanium plate is its reactivity at high temperatures. To address this, specialized heat treatments and surface treatments are often applied. These processes may include solution treating and aging to optimize mechanical properties, as well as surface hardening techniques like nitriding to enhance wear resistance.
Joining methods for Grade 5 titanium plate components in aerospace applications require careful consideration. Welding techniques such as electron beam welding and laser welding are commonly used, as they provide high-quality, precise joins while minimizing heat-affected zones. Additionally, diffusion bonding has emerged as a valuable method for creating complex, seamless structures from multiple titanium plate pieces.
Quality Control and Certification
Rigorous quality control measures are essential in the production of aerospace components from Grade 5 titanium plate. Non-destructive testing methods, including ultrasonic inspection and X-ray analysis, are routinely employed to detect any internal defects or inconsistencies in the material. Surface finish and dimensional accuracy are meticulously verified to ensure compliance with stringent aerospace standards.
Certification processes for Grade 5 titanium plate used in aerospace applications are comprehensive and stringent. Manufacturers must adhere to industry standards such as AMS 4911 for titanium and titanium alloy sheet, strip, and plate. Additionally, aerospace companies often impose their own specifications and quality requirements, necessitating close collaboration between material suppliers and aircraft manufacturers.
Future Trends and Innovations in Grade 5 Titanium Plate for Aerospace
The aerospace industry continues to push the boundaries of material science, and Grade 5 titanium plate remains at the forefront of innovation. Researchers are exploring ways to further enhance the material's properties through advanced alloying techniques and novel processing methods. One area of focus is the development of nanostructured titanium alloys, which promise even greater strength and fatigue resistance.
Additive manufacturing technologies are revolutionizing the production of complex titanium components. 3D printing techniques, such as electron beam melting (EBM) and selective laser melting (SLM), enable the creation of intricate, lightweight structures that were previously impossible to manufacture using traditional methods. These advancements are opening up new possibilities for optimizing aircraft design and performance.
Sustainability is becoming an increasingly important consideration in aerospace manufacturing. Efforts are underway to improve the recyclability of titanium alloys and reduce the energy intensity of production processes. Additionally, research into bio-inspired design principles is leading to more efficient use of Grade 5 titanium plate in aerospace structures, mimicking nature's ability to create strong yet lightweight forms.
Integration with Smart Materials and Systems
The integration of Grade 5 titanium plate with smart materials and systems represents an exciting frontier in aerospace technology. Researchers are exploring ways to incorporate sensors and actuators directly into titanium structures, enabling real-time monitoring of structural health and adaptive performance. This fusion of advanced materials with intelligent systems has the potential to revolutionize aircraft maintenance and enhance overall safety.
Moreover, the development of hybrid materials that combine Grade 5 titanium plate with other advanced composites is gaining traction. These hybrid structures aim to leverage the unique properties of each material, creating components that offer an optimal balance of strength, weight, and functionality. As these technologies mature, they are expected to play a crucial role in the next generation of aerospace vehicles, from more efficient commercial airliners to advanced space exploration craft.
Conclusion
Grade 5 titanium plate has proven to be an indispensable material in the aerospace industry, finding applications in a wide range of critical components. Its exceptional strength-to-weight ratio, corrosion resistance, and thermal stability make it ideal for use in aircraft structures, engine parts, and spacecraft components. As manufacturing technologies continue to evolve, the potential for innovation in Grade 5 titanium plate applications expands, promising even more efficient and capable aerospace systems in the future. The ongoing research into enhancing its properties and developing novel processing techniques ensures that Grade 5 titanium plate will remain at the forefront of aerospace material science for years to come.
Are you looking for high-quality Grade 5 titanium plate for your aerospace project? Baoji Chuanglian New Metal Material Co., Ltd. is a leading grade 5 titanium plate factory with over a decade of experience in titanium product manufacturing and machining. Our expertise in producing aerospace-grade titanium components ensures that you receive materials that meet the highest industry standards. Contact us today at info@cltifastener.com or djy6580@aliyun.com to discuss your specific requirements and learn how our Grade 5 titanium plate can elevate your aerospace applications.
FAQs
What surface finishes are available for Grade 5 titanium plate?
We offer various surface finishes including bright, polished, pickled, acid-cleaned, and sandblasted surfaces to meet different aerospace requirements.
Can Grade 5 titanium plate be cold rolled or hot rolled?
Yes, we can provide Grade 5 titanium plate in both cold-rolled and hot-rolled forms, as well as annealed or pickled as per customer specifications.
What quality tests are performed on your Grade 5 titanium plate?
Our quality assurance process includes hardness tests, bending tests, and hydrostatic tests to ensure the material meets aerospace industry standards.
What are the key features of Grade 5 titanium plate?
Grade 5 titanium plate offers high corrosion resistance, low density, and excellent thermal stability, making it ideal for aerospace applications.
Besides aerospace, where else is Grade 5 titanium plate used?
While primarily used in aerospace, Grade 5 titanium plate also finds applications in chemical industries, sports equipment manufacturing, and various other industrial sectors.
References
1. Boyer, R. R. (1996). An overview on the use of titanium in the aerospace industry. Materials Science and Engineering: A, 213(1-2), 103-114.
2. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced Engineering Materials, 5(6), 419-427.
3. Donachie, M. J. (2000). Titanium: a technical guide. ASM international.
4. Inagaki, I., Takechi, T., Shirai, Y., & Ariyasu, N. (2014). Application and features of titanium for the aerospace industry. Nippon Steel & Sumitomo Metal Technical Report, 106, 22-27.
5. Lütjering, G., & Williams, J. C. (2007). Titanium (engineering materials and processes). Springer Science & Business Media.
