Introducing Grade 5 Titanium Plate Properties and Challenges

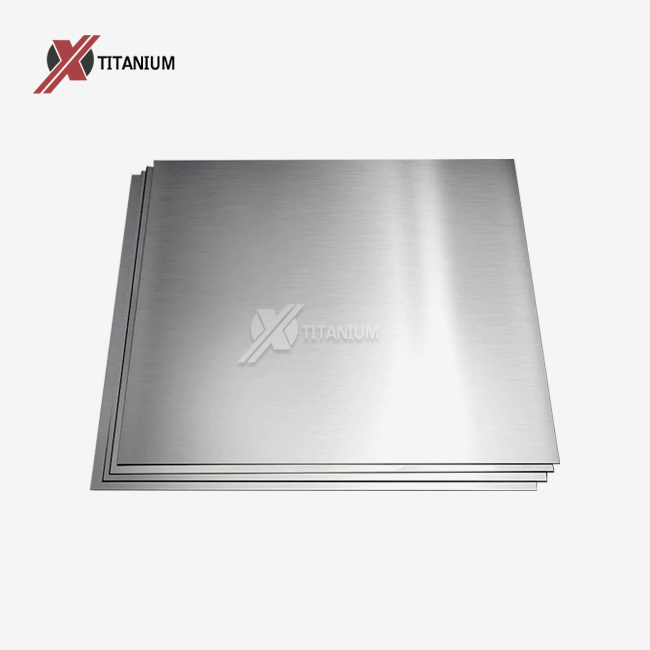

Grade 5 titanium plate, also known as Ti-6Al-4V, is a high-strength titanium alloy prized for its exceptional strength-to-weight ratio and corrosion resistance. This alloy consists of 90% titanium, 6% aluminum, and 4% vanadium, creating a material that outperforms many other metals in demanding applications. The unique properties of Grade 5 titanium plate make it a preferred choice in aerospace, medical, and marine industries.
However, working with Grade 5 titanium plate presents several challenges. The material's high strength and low thermal conductivity can lead to difficulties during machining and forming processes. Moreover, titanium is highly reactive at elevated temperatures, which can result in surface contamination and embrittlement if not properly managed. These challenges necessitate specialized manufacturing techniques to ensure the final product maintains its desirable properties without succumbing to embrittlement or other forms of degradation.
Mechanical Properties of Grade 5 Titanium Plate
Grade 5 titanium plate boasts impressive mechanical properties that contribute to its widespread use. With a tensile strength of approximately 900 MPa and a yield strength of 800 MPa, this alloy offers exceptional load-bearing capacity. Its density of 4.43 g/cm³ makes it significantly lighter than steel, while still providing comparable strength. These properties, combined with its excellent fatigue resistance and fracture toughness, make Grade 5 titanium plate an ideal material for critical components in various industries.
Embrittlement Risks in Titanium Processing
Embrittlement is a significant concern when processing Grade 5 titanium plate. This phenomenon can occur due to various factors, including hydrogen absorption, oxygen diffusion, and improper heat treatment. Hydrogen embrittlement, in particular, is a severe issue that can lead to catastrophic failure of titanium components. Oxygen embrittlement, which occurs at high temperatures, can create a brittle surface layer that compromises the material's overall performance. Understanding these risks is crucial for implementing appropriate manufacturing processes that mitigate embrittlement while achieving the desired shape and properties of the Grade 5 titanium plate.
Optimal Manufacturing Processes for Shaping Grade 5 Titanium Plate
Selecting the appropriate manufacturing processes for shaping Grade 5 titanium plate is crucial to maintain its exceptional properties while achieving the desired form. Several techniques have proven effective in working with this alloy, each offering unique advantages depending on the specific application requirements.
Hot Forming Techniques
Hot forming is a preferred method for shaping Grade 5 titanium plate, especially for large-scale deformations. This process involves heating the material above its beta transus temperature, typically around 980°C (1796°F), where the alloy becomes more malleable. At these elevated temperatures, the titanium's crystal structure changes, allowing for easier deformation without the risk of cracking or embrittlement. Hot forming techniques include hot rolling, forging, and extrusion. These methods can produce complex shapes while maintaining the material's strength and ductility. However, careful control of the heating and cooling rates is essential to prevent undesired microstructural changes that could affect the final product's properties.
Cold Forming Approaches
Cold forming of Grade 5 titanium plate offers several advantages, including tighter dimensional tolerances and improved surface finish compared to hot forming. This process is typically carried out at room temperature or slightly elevated temperatures below the recrystallization point. Common cold forming techniques for titanium include bending, drawing, and stamping. While cold forming can induce work hardening, which increases strength, it also reduces ductility. To mitigate this, manufacturers often employ intermediate annealing steps to restore the material's formability. The key to successful cold forming of Grade 5 titanium plate lies in gradual deformation and proper stress relief procedures to prevent residual stresses that could lead to delayed cracking or embrittlement.
Superplastic Forming
Superplastic forming is an advanced technique particularly well-suited for shaping Grade 5 titanium plate into complex geometries. This process exploits the material's ability to undergo extensive plastic deformation under specific conditions of temperature and strain rate. Typically performed at temperatures around 900°C (1652°F), superplastic forming allows for elongations of several hundred percent without necking or failure. This method is especially valuable for creating intricate aerospace components or medical implants with complex curvatures. The superplastic forming process minimizes residual stresses and maintains a fine-grained microstructure, resulting in parts with excellent mechanical properties and resistance to fatigue and corrosion.
Post-Processing and Quality Control Measures
After shaping Grade 5 titanium plate through various manufacturing processes, post-processing and quality control steps are crucial to ensure the final product meets the required specifications and maintains its integrity. These measures help identify and mitigate any potential issues that may have arisen during the shaping processes.
Heat Treatment and Stress Relief
Heat treatment plays a vital role in optimizing the mechanical properties of shaped Grade 5 titanium plate. Stress relief annealing is often performed to alleviate residual stresses introduced during forming operations. This process typically involves heating the material to temperatures between 480°C and 650°C (896°F to 1202°F) for a specified duration, followed by controlled cooling. Solution treating and aging can also be employed to further enhance strength and toughness. Proper heat treatment not only improves the material's performance but also helps prevent delayed cracking or distortion that could occur due to residual stresses.
Surface Treatment and Cleaning
Surface treatment is essential for removing any contamination or oxide layers that may have formed during the shaping processes. Chemical milling or pickling in hydrofluoric-nitric acid solutions is commonly used to remove the alpha case layer, which can form during hot working and lead to surface embrittlement. Mechanical cleaning methods such as grinding or shot peening may also be employed to improve surface finish and induce beneficial compressive stresses. For applications requiring enhanced corrosion resistance, anodizing or other surface treatments may be applied to the Grade 5 titanium plate components.
Non-Destructive Testing and Quality Assurance
Rigorous quality control measures are implemented to verify the integrity of shaped Grade 5 titanium plate components. Non-destructive testing methods such as ultrasonic inspection, radiography, and dye penetrant testing are used to detect any internal defects or surface imperfections. Mechanical testing, including tensile tests and hardness measurements, ensures that the material meets the specified strength requirements. Microstructural analysis through metallography helps confirm that the desired grain structure has been achieved and that no detrimental phases have formed during processing. These comprehensive quality assurance procedures are critical for ensuring that the shaped Grade 5 titanium plate components will perform reliably in their intended applications.
Conclusion
In conclusion, shaping Grade 5 titanium plate without embrittlement requires a nuanced approach that leverages various manufacturing processes. Hot forming, cold forming, and superplastic forming each offer unique advantages in shaping this high-performance alloy. The choice of process depends on factors such as component geometry, production volume, and final application requirements. Post-processing steps, including heat treatment and surface cleaning, are crucial for optimizing material properties and ensuring long-term performance. By carefully selecting and controlling these manufacturing processes, engineers can harness the full potential of Grade 5 titanium plate, creating components that exhibit exceptional strength, durability, and resistance to environmental factors.
At Baoji Chuanglian New Metal Material Co., Ltd., we specialize in the production and machining of high-quality Grade 5 titanium plate. As a leading grade 5 titanium plate factory, we are committed to delivering precision, durability, and superior performance for demanding industrial applications. Our expertise in titanium manufacturing ensures that every product meets the highest industry standards. Whether you need custom-sized plates or specialized finishes, our team is ready to assist you. For more information about our Grade 5 titanium plate offerings or to discuss your specific requirements, please contact us at info@cltifastener.com or djy6580@aliyun.com.
FAQs
What is the typical lead time for Grade 5 titanium plate orders?
Lead times can vary depending on order size and specifications, but generally range from 2 to 6 weeks.
Can Grade 5 titanium plate be welded?
Yes, Grade 5 titanium plate can be welded using various methods, including TIG welding, with proper shielding to prevent contamination.
What surface finishes are available for Grade 5 titanium plate?
We offer several finishes including mill finish, polished, brushed, and anodized surfaces to meet diverse application needs.
How does Grade 5 titanium plate compare to other titanium grades in terms of strength?
Grade 5 titanium plate generally offers higher strength than pure titanium grades, making it suitable for more demanding applications.
Are there any special handling or storage requirements for Grade 5 titanium plate?
While Grade 5 titanium plate is corrosion-resistant, it's best to store it in a clean, dry environment to maintain its surface quality.
References
1. Peters, M., & Leyens, C. (2003). Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH.
2. Donachie, M. J. (2000). Titanium: A Technical Guide. ASM International.
3. Lutjering, G., & Williams, J. C. (2007). Titanium (Engineering Materials and Processes). Springer.
4. Froes, F. H. (2015). Titanium: Physical Metallurgy, Processing, and Applications. ASM International.
5. Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
