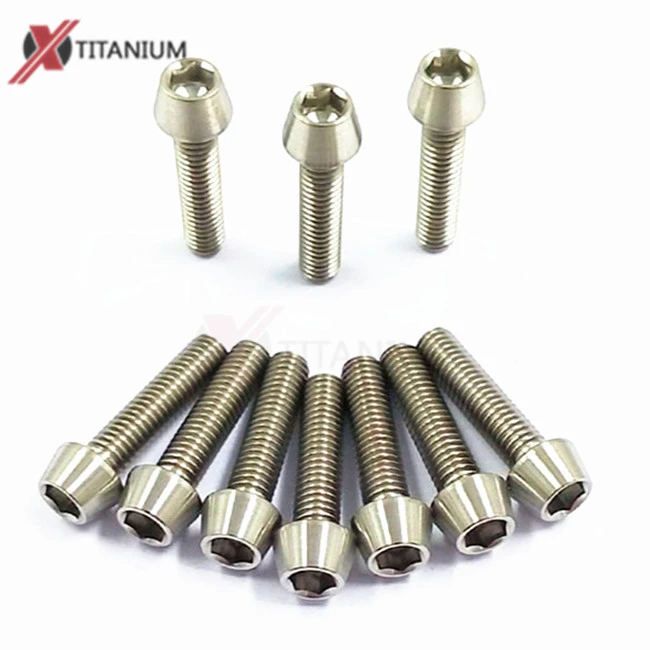

Titanium Cone Head Hex Socket Bolt

Titanium Cone Head Hex Socket Bolt – Precision Aerospace-Grade Fasteners for High-Performance Engineering

Baoji Chuanglian New Metal Material Co., Ltd. manufactures Titanium Cone Head Hex Socket Bolt using certified Ti-6Al-4V (Grade 5) alloy, delivering a tensile strength of 950 MPa with dimensional precision across M5×0.8 and M6×1.0 thread specifications. Our production facility in Baoji City—the renowned Titanium Capital—combines over ten years of specialized machining experience with ISO 9001-certified quality control systems. Each bolt features 82° or 90° countersunk angles and weighs approximately 1.2g (M5) to 2.0g (M6) per 10mm length, offering up to 60% weight reduction versus steel while maintaining structural integrity. Our advanced CNC machining and passivation finishing processes ensure consistent thread accuracy and corrosion resistance for aerospace, motorsport, and marine applications.

Why Countersunk Design Matters in Critical Assemblies

The cone head profile provides flush mounting capabilities essential for aerodynamic surfaces and weight-sensitive structures. Unlike raised-head fasteners, this design eliminates protrusions that create drag or interfere with mating components.

Engineers specify countersunk bolts when surface continuity affects performance. In carbon fiber fairings or aluminum panels, the tapered head distributes clamping force evenly across the hole edge, preventing stress cracking that occurs with flat washers on thin materials.

Our 4mm and 5mm hex socket depths accommodate standard Allen keys while providing sufficient wall thickness to resist cam-out during torque application. The Ti-6Al-4V alloy maintains thread integrity even under repeated assembly cycles, unlike softer commercially pure titanium grades.

Technical Specifications

Superior Corrosion Resistance for Harsh Environments

Titanium naturally forms a protective oxide layer that regenerates instantly when scratched. This passive film resists chloride attack, acidic condensation, and saltwater exposure far better than stainless steel alternatives.

Marine engineering applications benefit from titanium's immunity to pitting corrosion in seawater environments. Offshore rigging hardware and desalination equipment regularly specify these fasteners to avoid the catastrophic failures associated with corroded steel bolts.

The passivation process we apply creates a uniform oxide layer thickness, enhancing the material's inherent corrosion resistance. Your assemblies maintain clamping force integrity throughout their service life without the oxide jacking that loosens conventional fasteners.

Weight Optimization Without Strength Compromise

Titanium Cone Head Hex Socket Bolt assemblies achieve 43% of steel's density while delivering comparable strength to Grade 8.8 steel fasteners. This specific strength advantage transforms vehicle dynamics in motorsport and extends flight range in UAV platforms.

Racing teams replace steel fasteners with titanium to reduce unsprung mass in suspension components and rotational weight in drivetrain assemblies. A complete wheel assembly conversion can shed 200-400 grams per corner, directly improving acceleration response and braking efficiency.

Aerospace engineers calculate payload gains when substituting titanium fasteners across airframe structures. A mid-size UAV might carry an additional 2-3kg of sensors or fuel by systematically replacing steel hardware with properly torqued Titanium Cone Head Hex Socket Bolt equivalents.

Anti-Galling Measures for Reliable Installation

Titanium's high friction coefficient creates cold-welding risks during installation if proper procedures aren't followed. We recommend applying molybdenum disulfide or copper-based anti-seize compounds to threads before assembly.

Our manufacturing process includes controlled surface roughness specifications that balance thread engagement with galling resistance. The passivation layer itself provides some lubricity, but external lubricants remain essential for torque consistency.

Use a calibrated torque wrench and follow reduced torque specifications compared to steel—typically 65-70% of equivalent steel values. This prevents plastic deformation of the threads while achieving proper preload in the joint.

Application Versatility Across Industries

High-performance motorsport teams install these fasteners in turbocharger manifolds, carbon fiber body panels, and split-rim wheel assemblies where thermal expansion cycles and vibration demand fatigue-resistant solutions.

Medical device manufacturers utilize titanium fasteners in surgical instrument assemblies and implantable device housings, leveraging the material's biocompatibility and non-magnetic properties for MRI-compatible equipment.

Petrochemical processing facilities specify Titanium Cone Head Hex Socket Bolt hardware for pump casings and valve bodies exposed to corrosive process fluids. The material withstands temperature fluctuations from cryogenic to 400°C without embrittlement.

Electrolysis equipment and battery manufacturing machinery benefit from titanium's electrochemical stability in acidic and alkaline environments where conventional fasteners degrade within months.

Frequently Asked Questions

What torque specifications should I use for M5 and M6 titanium cone head bolts?

Apply 4-6 Nm for M5 and 8-12 Nm for M6 when using anti-seize lubricant. These values represent approximately 70% of dry steel equivalents and prevent thread damage while achieving proper preload.

Can these bolts replace Grade 10.9 or 12.9 steel fasteners directly?

Grade 5 titanium matches Grade 8.8 steel strength. For higher-grade steel replacements, engineering validation is required to ensure adequate safety factors, as Ti-6Al-4V has different elastic properties than ultra-high-strength steels.

Do cone head bolts cause galvanic corrosion with aluminum structures?

Titanium acts as the cathode when paired with aluminum. In marine environments, use dielectric washers or insulating paste to prevent accelerated aluminum corrosion, though the galvanic potential difference is smaller than steel-aluminum pairings.

Are different countersink angles interchangeable?

No—82° and 90° angles require matching hole preparations. Using mismatched angles creates point contact instead of full bearing surface engagement, dramatically reducing joint strength and causing premature failure.

What packaging prevents damage during shipping?

We supply bolts in compartmentalized boxes with anti-scratch dividers, packaged in quantities of 50-200 pieces depending on size. This prevents thread damage and surface scratches that compromise corrosion resistance.
