Titanium Taper Head Bolts with Washer

Titanium Taper Head Bolts with Washer – Precision Aerospace-Grade Fastening Solutions for High-Performance Applications

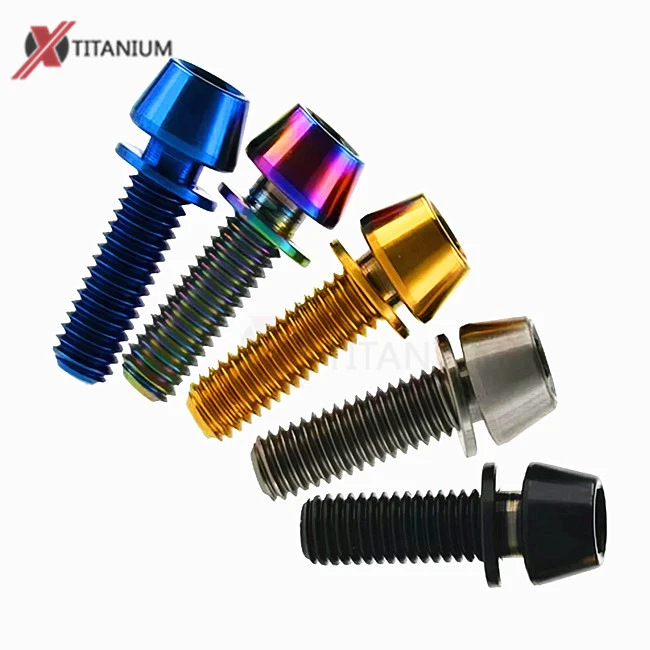

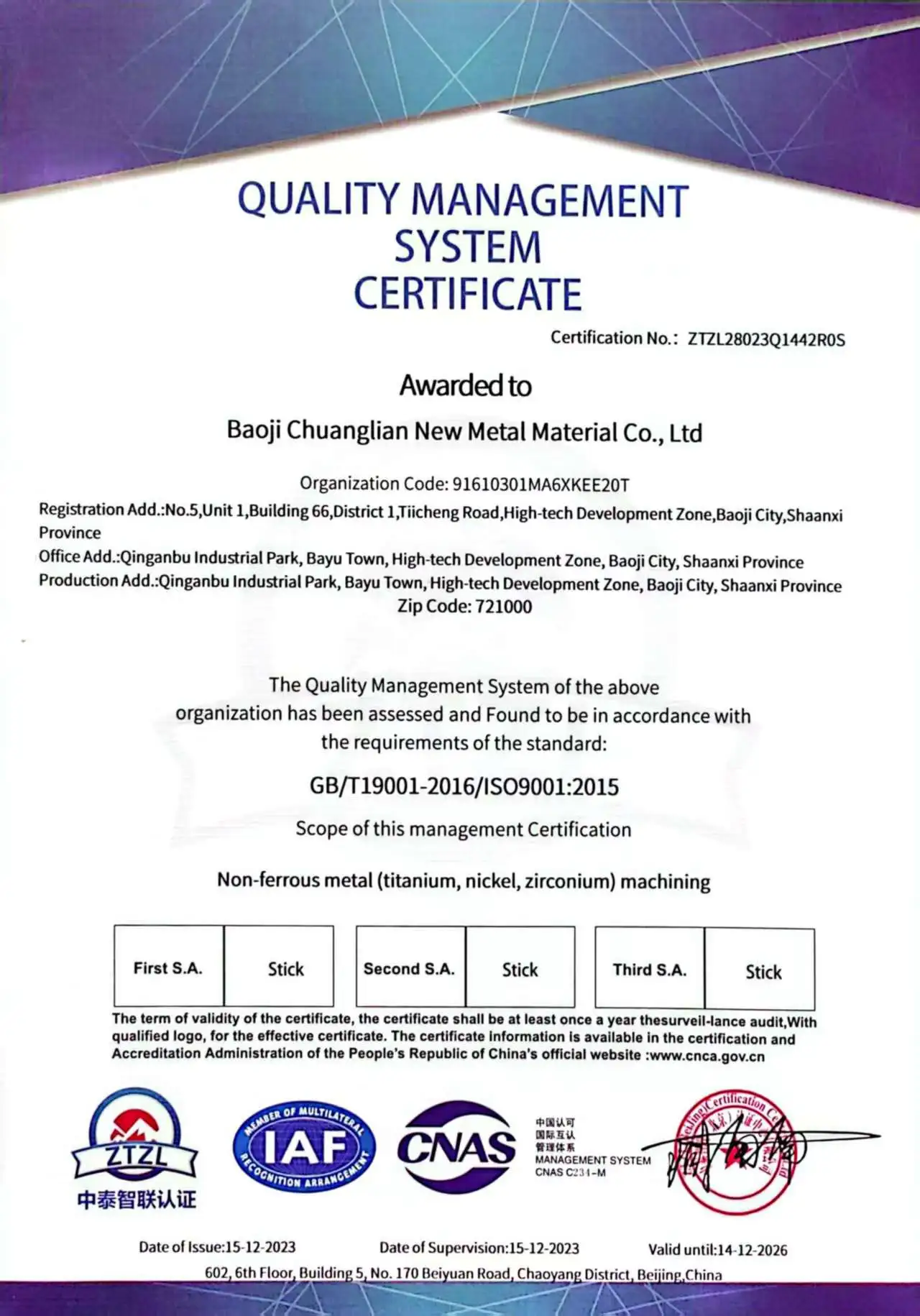

Baoji Chuanglian New Metal Material Co., Ltd. manufactures precision-engineered Titanium Taper Head Bolts with Washer, specifically designed for weight-critical and corrosion-resistant fastening systems. Constructed from certified Ti-6Al-4V Gr.5 titanium alloy, these bolts deliver exceptional strength-to-weight performance with a density of just 4.43 g/cm³—approximately 43% lighter than stainless steel. Available in M5x0.8 and M6x1.0 thread configurations, with lengths ranging from 10mm to 35mm, each bolt features an 82° countersunk taper head paired with a matching taper washer. A complete M5x20mm assembly weighs only 2.5 grams while maintaining tensile strength exceeding 895 MPa. Backed by ISO 9001 certification and over ten years of titanium machining expertise, these fasteners meet strict aerospace and motorsport standards.

Superior Material Properties of Ti-6Al-4V Grade 5 Alloy

The Ti-6Al-4V composition—comprising 90% titanium, 6% aluminum, and 4% vanadium—creates a fastener that outperforms traditional materials across multiple parameters. This aerospace-grade alloy achieves tensile strength between 895-1000 MPa while weighing nearly half that of grade 10.9 steel.

Your fastening systems benefit from exceptional corrosion immunity. The alloy spontaneously forms a stable oxide layer that resists saltwater, chlorides, and oxidizing acids indefinitely. Unlike 304 stainless steel which suffers pitting in low-oxygen marine environments, these titanium bolts maintain structural integrity across extreme conditions.

Thermal stability extends to 400°C without creep deformation. This makes them ideal for brake caliper mounts and engine bay applications where aluminum fasteners would fail under sustained heat cycling.

Technical Specifications & Dimensions

Engineered Taper Head Design for Flush Installation

The 82° countersunk taper head geometry ensures completely flush installation in performance applications. Your components achieve smooth surface continuity critical for aerodynamic efficiency in cycling and motorsport applications.

Each bolt includes a precision-matched taper washer that distributes clamping force evenly across composite materials. This prevents stress concentration and fiber crushing in carbon fiber frames, handlebars, and drone chassis assemblies. The tapered profile eliminates sharp edges that could compromise rider safety or snag equipment during maintenance operations.

Thread engagement follows rolled thread manufacturing rather than cut threads. This process preserves grain flow alignment along the fastener body, resulting in up to 30% improvement in fatigue resistance under constant vibration—essential for drone motor mounts and handlebar stem applications.

Industrial Applications Across Multiple Sectors

Motorsport & Performance Cycling: These Titanium Taper Head Bolts with Washer serve as critical fasteners for brake caliper assemblies, handlebar stems, and disc rotor mounts. The weight reduction directly improves unsprung mass performance while the flush taper head minimizes aerodynamic drag. Professional teams require this combination for competitive advantage without compromising clamping integrity.

Aerospace & UAV Drone Manufacturing: Every gram impacts flight duration in unmanned aerial systems. Engineers specify these bolts for motor mounts and frame assemblies where high vibration resistance meets strict weight budgets. The 45% weight saving compared to steel equivalents translates directly to increased payload capacity or extended mission duration.

Marine & Yacht Rigging Systems: Saltwater environments destroy conventional fasteners through galvanic corrosion and chloride pitting. Your rigging hardware and underwater sensor housings gain indefinite service life when secured with these titanium fasteners, eliminating the recurring maintenance costs associated with stainless steel replacement cycles.

Production workshop

​​

​

Production process

Our Services

Custom solutions, fast delivery, competitive pricing, and excellent service.

​​

01

Titanium Product Manufacturing

Baoji Chuanglian New Metal Material Co., Ltd specializes in manufacturing high-quality titanium and rare metal products. With over ten years of experience, we produce titanium rods, plates, tubes, fasteners, and customized components. Our products meet strict national and international standards, ensuring durability and reliability. We cater to industries such as aerospace, medical, and petrochemical, providing high-performance titanium solutions tailored to customer needs.

02

Precision Titanium Machining

Equipped with advanced CNC machines, we offer precision machining services, including cutting, milling, drilling, and turning. Our experienced technicians ensure high accuracy and quality in every component. By continuously upgrading our technology, we meet complex machining demands for various industries. Whether you need standard titanium parts or custom-designed solutions, we provide efficient and reliable services.

​​

​​

03

Strict Quality Control

We maintain a rigorous quality control system from raw material selection to final inspection. Every product undergoes thorough testing to ensure superior performance and longevity. Our titanium products have been trusted by global companies for years, earning a reputation for reliability. With strict adherence to quality standards, we guarantee high-quality products with on-time delivery.

04

Global Titanium Solutions

Serving industries worldwide, we provide professional titanium solutions, from production to after-sales support. Our products are widely used in aerospace, medical, marine, and industrial fields. We focus on customer satisfaction, offering customized services and technical assistance. With a commitment to innovation and quality, we strive to build long-term partnerships and deliver high-value titanium products globally.

​​

Be used in a wide range of industries.



​​

Automotive Industry

​​

Electronics Industry

​​

Aerospace Industry

​​

Medical Industry

​​

Cars and Racing

​​

Consumer Electronics

Rigorous Quality Control & Manufacturing Standards

Our CNC machining centers maintain thread precision within 6g tolerance standards, verified through go/no-go gauge testing. This ensures consistent fitment without damaging threaded inserts or hub materials during installation.

Each production batch undergoes Positive Material Identification (PMI) testing to verify the 6% aluminum and 4% vanadium content. Tensile testing per ISO 898-1 standards confirms minimum 950 MPa yield strength across every manufacturing run.

Metallographic cross-section analysis verifies grain flow continuity in forged head sections. This quality checkpoint distinguishes authentic forged components from inferior machined alternatives that lack fatigue resistance. Surface hardness testing maintains Rockwell C 30-36 range—balancing surface durability with necessary ductility for shock load absorption.

Installation Guidelines for Optimal Performance

Proper installation prevents the galling phenomenon where titanium cold-welds to dissimilar metals. You must apply copper paste, ceramic anti-seize compound, or titanium-specific lubricant to all thread surfaces and washer contact points before assembly.

Torque specifications should match your component manufacturer's recommendations—typically 5-6 Nm for M5 and 8-10 Nm for M6 applications. Due to titanium's lower modulus of elasticity compared to steel, calibrated torque wrenches are mandatory. Over-tightening causes thread stretching and head separation failures in critical applications.

Thread engagement depth should exceed 1.5 times the bolt diameter for full strength development. Ensure mounting holes are deburred and cleaned of abrasive particles that could score the taper head during installation.

Frequently Asked Questions

Q: Can I use Grade 2 pure titanium for structural applications?

A: Grade 2 lacks sufficient tensile strength for safety-critical fastening. Only Ti-6Al-4V (Grade 5) meets industry standards for stem bolts, brake mounts, and load-bearing assemblies where clamping force integrity is mandatory.

Q: Will these bolts rust in marine environments?

A: Titanium is virtually immune to corrosion in natural saltwater and freshwater conditions. Any discoloration observed is typically iron contamination from tools, not corrosion of the bolt material itself.

Q: How do these compare to aluminum bolts in high-temperature applications?

A: Titanium Taper Head Bolts with Washer maintain full mechanical properties at temperatures up to 400°C where aluminum fasteners experience creep deformation and strength loss. This makes them superior for brake caliper and exhaust system applications.

Q: What is the expected service life in vibration-prone installations?

A: The rolled thread manufacturing process creates grain flow alignment that delivers 30% superior fatigue resistance compared to cut threads. In drone motor mounts and suspension applications, this translates to multi-year service intervals without structural degradation.

Q: Are special tools required for installation?

A: Standard hex keys fit the Allen socket heads. However, you must use a calibrated torque wrench and apply titanium-compatible anti-seize compound to prevent galling during installation and ensure accurate torque application.

Packaging & Logistics

Each order ships in individual protective bags, organized in export-grade cartons containing 20-100 sets depending on size configuration. FOB terms from China with standard lead times of 15-20 days ensure predictable supply chain integration for your production schedules.

Partner with Titanium Manufacturing Experts

Baoji Chuanglian New Metal Material Co., Ltd. combines over a decade of titanium machining expertise with complete CNC manufacturing capabilities to deliver precision fasteners that meet your exact specifications. Our rigorous quality control ensures every batch meets international standards verified by global aerospace and motorsport customers.

For technical specifications, custom length requirements, or volume pricing on Titanium Taper Head Bolts with Washer, contact our engineering team at info@cltifastener.com.
