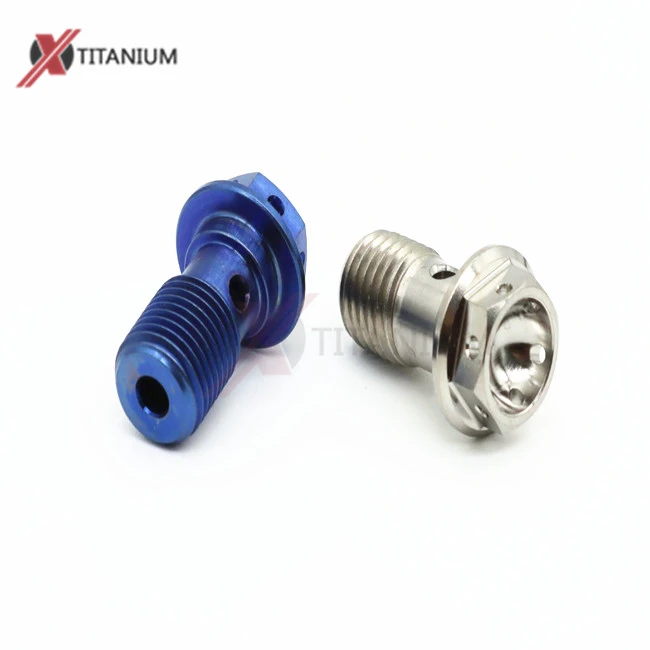

Titanium Alloy Brake Caliper Banjo Bolt M10

Titanium Alloy Brake Caliper Banjo Bolt M10 with Double Hole and Integrated Bleeder for High-Performance Applications

Baoji Chuanglian New Metal Material Co., Ltd. manufactures precision-engineered Titanium Alloy Brake Caliper Banjo Bolt M10 components using aerospace-grade Gr.5 Ti-6Al-4V material with a tensile strength of 950 MPa. Each bolt measures M10×1.0 or M10×1.25 with lengths ranging from 28mm to 32mm, featuring double cross holes for dual fluid passages and an integrated M8 bleeder screw with cap. Weighing approximately 12g per unit—substantially lighter than stainless steel equivalents—these ISO 9001 certified bolts undergo rigorous pressure testing before shipment. With over ten years of titanium machining experience and advanced CNC equipment, the company delivers precision-machined brake components trusted across motorsports, automotive racing, and high-performance cycling applications worldwide.

Why Titanium Alloy Material Outperforms Steel in Brake Systems

Traditional stainless steel banjo bolts suffer from three critical weaknesses: excessive weight contributing to unsprung mass, susceptibility to galvanic corrosion when paired with aluminum calipers, and thread galling under repeated thermal cycling.

Titanium Grade 5 solves these problems simultaneously. The material's density of 4.43 g/cm³ delivers a 45% weight reduction compared to steel while maintaining yield strength above 828 MPa. This strength-to-weight advantage directly improves suspension response in racing applications where every gram of rotational mass impacts damping characteristics.

The natural oxide layer on titanium surfaces prevents galvanic reactions with aluminum caliper housings. Unlike steel fasteners that seize into aluminum threads after exposure to brake fluid contamination or road salt, your Titanium Alloy Brake Caliper Banjo Bolt M10 remains removable even after thousands of heat cycles. The material's low thermal conductivity also reduces heat transfer from the caliper body into the brake fluid circuit during aggressive braking.

Technical Specifications and Material Properties

Dual-Hole Design and Fluid Flow Engineering

The double cross-hole configuration machined into each Titanium Alloy Brake Caliper Banjo Bolt M10 serves a specific hydraulic purpose. This design permits simultaneous fluid flow from both inlet and outlet ports on the banjo fitting, eliminating single-point pressure bottlenecks common in traditional single-hole designs.

During brake bleeding procedures, the integrated M8 bleeder screw allows air purging without disconnecting hydraulic lines. The screw's titanium construction prevents corrosion-induced seizure—a frequent maintenance issue with brass or steel bleeders exposed to hygroscopic brake fluid. The included cap protects threads from environmental contamination between service intervals.

Precision CNC drilling ensures hole alignment within ±0.02mm tolerance, preventing cross-threading during installation. Deburred edges eliminate sharp transitions that could score copper crush washers or damage banjo fitting surfaces.

Installation Torque and Maintenance Considerations

You should apply 45-60 Nm torque when installing M10 titanium banjo bolts—approximately 30% lower than equivalent steel fasteners. This reduced specification accounts for titanium's different elastic modulus (114 GPa versus steel's 200 GPa) and prevents thread galling.

Always coat threads with copper-based anti-seize compound before assembly. Titanium's tendency to cold-weld under high friction makes lubrication essential. Never reuse crush washers; replace with new copper or aluminum sealing washers matched to your caliper's specifications.

For safety-critical racing applications, titanium's pre-drillable head allows lock-wiring per motorsport regulations. This mechanical retention prevents fastener rotation under vibration—a mandatory requirement in MotoGP, WSBK, and track-day events.

Performance Advantages in Harsh Environments

Racing motorcycles and off-road vehicles expose brake components to temperature extremes, moisture, mud, and chemical contaminants. Steel bolts corrode in these conditions, creating maintenance challenges and safety risks.

Your Titanium Alloy Brake Caliper Banjo Bolt M10 maintains structural integrity through river crossings, salted winter roads, and repeated thermal shock from carbon-ceramic braking systems. The material's chemical inertness prevents degradation from DOT 3/4/5.1 brake fluids, while its low coefficient of thermal expansion matches aluminum caliper housings more closely than steel.

Professional racing teams value the weight reduction in unsprung components. Removing 6-8 grams per corner (compared to steel) lowers rotational inertia, improving suspension damping response and tire contact consistency during corner transitions.

Production workshop

​​

​

Production process

Our Services

Custom solutions, fast delivery, competitive pricing, and excellent service.

​​

01

Titanium Product Manufacturing

Baoji Chuanglian New Metal Material Co., Ltd specializes in manufacturing high-quality titanium and rare metal products. With over ten years of experience, we produce titanium rods, plates, tubes, fasteners, and customized components. Our products meet strict national and international standards, ensuring durability and reliability. We cater to industries such as aerospace, medical, and petrochemical, providing high-performance titanium solutions tailored to customer needs.

02

Precision Titanium Machining

Equipped with advanced CNC machines, we offer precision machining services, including cutting, milling, drilling, and turning. Our experienced technicians ensure high accuracy and quality in every component. By continuously upgrading our technology, we meet complex machining demands for various industries. Whether you need standard titanium parts or custom-designed solutions, we provide efficient and reliable services.

​​

​​

03

Strict Quality Control

We maintain a rigorous quality control system from raw material selection to final inspection. Every product undergoes thorough testing to ensure superior performance and longevity. Our titanium products have been trusted by global companies for years, earning a reputation for reliability. With strict adherence to quality standards, we guarantee high-quality products with on-time delivery.

04

Global Titanium Solutions

Serving industries worldwide, we provide professional titanium solutions, from production to after-sales support. Our products are widely used in aerospace, medical, marine, and industrial fields. We focus on customer satisfaction, offering customized services and technical assistance. With a commitment to innovation and quality, we strive to build long-term partnerships and deliver high-value titanium products globally.

​​

Be used in a wide range of industries.



​​

Automotive Industry

​​

Electronics Industry

​​

Aerospace Industry

​​

Medical Industry

​​

Cars and Racing

​​

Consumer Electronics

Quality Control and Manufacturing Standards

Every batch undergoes multi-stage inspection at our Baoji facility. Raw Ti-6Al-4V material certification confirms chemical composition per ASTM B348 standards before machining. CNC operations maintain dimensional tolerances within ISO 2768-m specifications for medium-grade fasteners.

Pressure testing simulates hydraulic loads exceeding 200 bar—well above normal braking system pressures—to verify structural integrity. Thread gauges confirm class 6g tolerance on external threads, ensuring compatibility with standard M10 tapped caliper bores.

Individual plastic tube packaging protects thread integrity during shipping. Cartons contain 10-50 pieces depending on order volume, with clear labeling for size identification and batch traceability.

Frequently Asked Questions

Q: Can I directly replace steel M10 banjo bolts with these titanium versions?

A: Yes, for most automotive and motorcycle applications using Grade 8.8 steel. If your system specifies Grade 10.9 or 12.9 fasteners for extreme racing use, consult your brake system engineer to validate load requirements, as titanium has different shear characteristics.

Q: What's the recommended torque specification?

A: Apply 45-60 Nm with copper-based anti-seize on threads. This lower range compared to steel accounts for titanium's elastic properties and prevents galling. Always use a calibrated torque wrench.

Q: Will titanium bolts cause galvanic corrosion with my aluminum calipers?

A: No. Unlike steel, titanium is electrochemically compatible with aluminum. The natural oxide layer prevents galvanic reactions even in wet or contaminated environments.

Q: How do I service the integrated bleeder screw?

A: Use a 7mm wrench on the M8 bleeder. Open 1/4 turn during bleeding procedures, then retorque to 8-10 Nm. Replace the cap after servicing to protect threads.

Q: What's the lead time for custom lengths?

A: Standard 28-32mm lengths ship within 15-20 days FOB or CIF. Custom specifications require tooling setup; contact us at info@cltifastener.com with your technical drawings for timeline estimates.

Contact Us for Custom Brake Component Solutions

Need specific thread pitches, extended lengths, or pre-drilled heads for safety wiring? Our engineering team customizes titanium brake hardware to your exact specifications. Reach out to info@cltifastener.com with your technical requirements for prompt quotation and samples.
