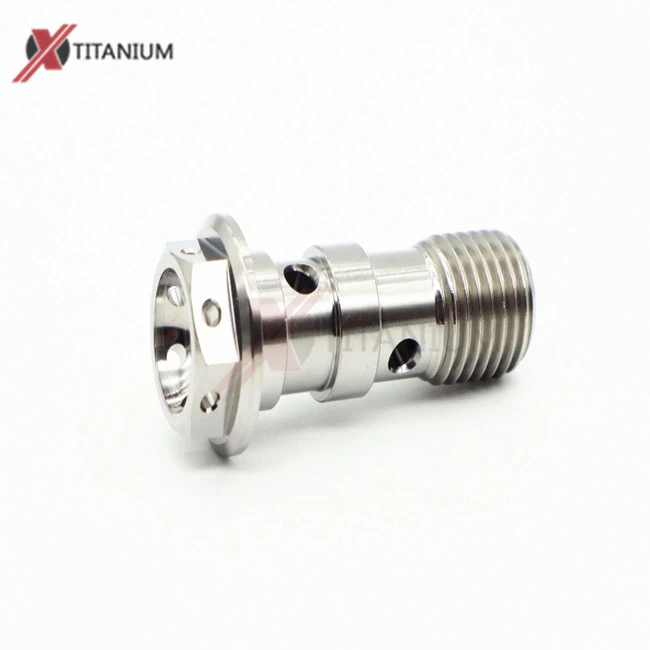

Titanium Alloy Double Hole Exhaust Nippe Screws M10

High-Performance Titanium Alloy Double Hole Exhaust Nippe Screws M10 for Motorcycle Exhaust System Applications

Baoji Chuanglian New Metal Material Co., Ltd. manufactures Titanium Alloy Double Hole Exhaust Nippe Screws M10 engineered specifically for high-temperature exhaust caliper mounting systems. Constructed from aerospace-grade Gr.5 (Ti-6Al-4V) titanium alloy, these fasteners deliver superior heat resistance up to 400°C while maintaining a weight of approximately 8g per 30mm length—45% lighter than traditional steel alternatives. The M10x1.25 thread specification with customizable lengths ranging from 25mm to 45mm ensures precise fitment for diverse motorcycle exhaust hanger configurations. Certified under ISO 9001 quality standards, each double-hole tube design provides exceptional clamping force distribution while preventing thermal expansion seizure common in conventional steel fasteners.

Why Choose Double-Hole Tube Design for Exhaust Systems

The innovative double-layer tube construction in our Titanium Alloy Double Hole Exhaust Nippe Screws M10 addresses critical challenges in motorcycle exhaust mounting. Traditional solid screws often fail due to thermal stress concentration and limited vibration dampening.

Our dual-hole architecture creates a structural buffer zone that absorbs vibrational energy from engine operation. This design significantly reduces the risk of fastener fatigue cracking—a common failure mode in racing and high-performance applications.

The hollow core configuration also minimizes contact surface area with exhaust components. This reduces heat transfer to mounting hardware, preserving the integrity of surrounding materials. Your maintenance intervals extend considerably compared to steel alternatives that corrode and seize under thermal cycling.

Material Specifications and Performance Data

The Gr.5 titanium alloy composition contains 6% Aluminum and 4% Vanadium, providing exceptional strength-to-weight ratio. This material maintains structural integrity even when exposed to extreme exhaust gas temperatures and corrosive combustion byproducts.

Your exhaust system benefits from reduced unsprung weight, which directly improves suspension response and handling characteristics. The natural titanium dioxide layer forms spontaneously, offering permanent corrosion protection without additional coatings.

Technical Advantages Over Traditional Fasteners

Standard stainless steel exhaust screws suffer from galvanic corrosion when paired with aluminum exhaust components. This electrochemical reaction causes material degradation and eventual seizing.

Titanium Alloy Double Hole Exhaust Nippe Screws M10 eliminate this problem entirely. The passive oxide layer prevents galvanic coupling, ensuring easy disassembly even after years of high-temperature service.

Thermal expansion coefficients closer to aluminum reduce differential movement stress. Steel fasteners expand at different rates than aluminum mounting brackets, creating micro-movements that wear threads and loosen connections. Our titanium solution maintains consistent clamping force throughout temperature fluctuations.

The material's inherent resistance to chloride exposure proves invaluable for coastal riders or winter operation. Salt spray and road chemicals that destroy steel fasteners leave titanium components unaffected.

Production workshop

​​

​

Production process

Our Services

Custom solutions, fast delivery, competitive pricing, and excellent service.

​​

01

Titanium Product Manufacturing

Baoji Chuanglian New Metal Material Co., Ltd specializes in manufacturing high-quality titanium and rare metal products. With over ten years of experience, we produce titanium rods, plates, tubes, fasteners, and customized components. Our products meet strict national and international standards, ensuring durability and reliability. We cater to industries such as aerospace, medical, and petrochemical, providing high-performance titanium solutions tailored to customer needs.

02

Precision Titanium Machining

Equipped with advanced CNC machines, we offer precision machining services, including cutting, milling, drilling, and turning. Our experienced technicians ensure high accuracy and quality in every component. By continuously upgrading our technology, we meet complex machining demands for various industries. Whether you need standard titanium parts or custom-designed solutions, we provide efficient and reliable services.

​​

​​

03

Strict Quality Control

We maintain a rigorous quality control system from raw material selection to final inspection. Every product undergoes thorough testing to ensure superior performance and longevity. Our titanium products have been trusted by global companies for years, earning a reputation for reliability. With strict adherence to quality standards, we guarantee high-quality products with on-time delivery.

04

Global Titanium Solutions

Serving industries worldwide, we provide professional titanium solutions, from production to after-sales support. Our products are widely used in aerospace, medical, marine, and industrial fields. We focus on customer satisfaction, offering customized services and technical assistance. With a commitment to innovation and quality, we strive to build long-term partnerships and deliver high-value titanium products globally.

​​

Be used in a wide range of industries.



​​

Automotive Industry

​​

Electronics Industry

​​

Aerospace Industry

​​

Medical Industry

​​

Cars and Racing

​​

Consumer Electronics

Manufacturing Precision and Quality Assurance

Every screw undergoes comprehensive quality verification following aerospace industry standards. Our CNC machining centers maintain thread tolerances within Class 6g specifications, ensuring proper engagement without galling.

Chemical composition analysis via spectrometry confirms the precise Vanadium and Aluminum content in each production batch. This prevents material substitution and guarantees consistent mechanical properties.

Mechanical testing includes tensile strength verification and Rockwell Hardness measurements (HRC 30-39 range). These destructive tests validate heat treatment effectiveness and material integrity.

Thread metrology using Go/No-Go gauges ensures dimensional accuracy. Surface integrity inspection identifies potential defects like laps or seams that could compromise performance. You receive fasteners that meet the demanding requirements of racing and aerospace applications.

Installation Guidelines and Torque Specifications

Proper installation maximizes the performance advantages of titanium fasteners. Clean all mating surfaces thoroughly to remove old gasket material and corrosion residue.

Apply a thin layer of anti-seize compound specifically formulated for titanium. Never use copper-based anti-seize, as it can cause galvanic reactions. Nickel or ceramic-based products work best.

Tighten screws gradually in a cross-pattern sequence to distribute clamping pressure evenly. Recommended torque for M10 titanium fasteners ranges from 35-40 Nm, depending on your specific exhaust system configuration.

Avoid impact tools during installation. The reduced ductility compared to steel means titanium requires controlled tightening to prevent thread damage. Use a calibrated torque wrench for consistent results.

Applications Across Performance Categories

Motorcycle exhaust systems represent the primary application for these specialized fasteners. Track racing bikes benefit from weight reduction and reliability under extreme vibration.

Street performance motorcycles gain improved durability in variable weather conditions. The corrosion resistance extends component life significantly compared to stock hardware.

Custom builders appreciate the aesthetic appeal of exposed titanium fasteners. The natural metallic finish complements polished exhaust systems and high-end components.

Industrial exhaust systems in marine engines also utilize these fasteners. The saltwater environment demands corrosion-resistant materials, making Titanium Alloy Double Hole Exhaust Nippe Screws M10 an ideal choice for yacht and commercial vessel applications.

Packaging and Logistics Information

We pack your order with protective bubble wrap inside reinforced cartons. Standard packaging quantities range from 10 to 50 pieces per box, depending on your volume requirements.

All shipments comply with FOB terms with typical production and delivery timeframes of 15-20 days. Custom length specifications may require additional manufacturing time, which we communicate clearly during order confirmation.

Larger orders qualify for optimized packaging solutions that reduce shipping costs while maintaining product protection. Our logistics team coordinates with reliable international carriers to ensure safe, timely delivery.

Frequently Asked Questions

Can these screws be reused after removal?

Yes, unlike steel fasteners that corrode and damage threads, titanium screws can be removed and reinstalled multiple times. Inspect threads for damage before reuse and apply fresh anti-seize compound.

What is the temperature limit for continuous use?

The Gr.5 titanium alloy maintains mechanical properties up to 400°C. Short-duration exposure to higher temperatures is acceptable, but continuous operation above this threshold may affect long-term strength.

Do I need special tools for installation?

Standard hex socket tools work perfectly. Use quality 6-point sockets to prevent rounding. A calibrated torque wrench is essential for proper installation tension.

How do these compare to stainless steel A2-70 fasteners?

Titanium offers 45% weight savings, superior corrosion resistance, and better thermal expansion matching with aluminum components. While initial cost is higher, lifecycle value exceeds stainless steel significantly.

Are custom lengths available beyond the standard range?

Absolutely. Our CNC machining capabilities support custom lengths and thread specifications. Contact our engineering team with your specific requirements for quotation.

Partner With Titanium Fastener Specialists

Baoji Chuanglian New Metal Material Co., Ltd. combines over ten years of titanium manufacturing expertise with advanced CNC technology to deliver fasteners that exceed industry standards. Contact us at info@cltifastener.com for technical specifications, custom orders, or volume pricing information.
