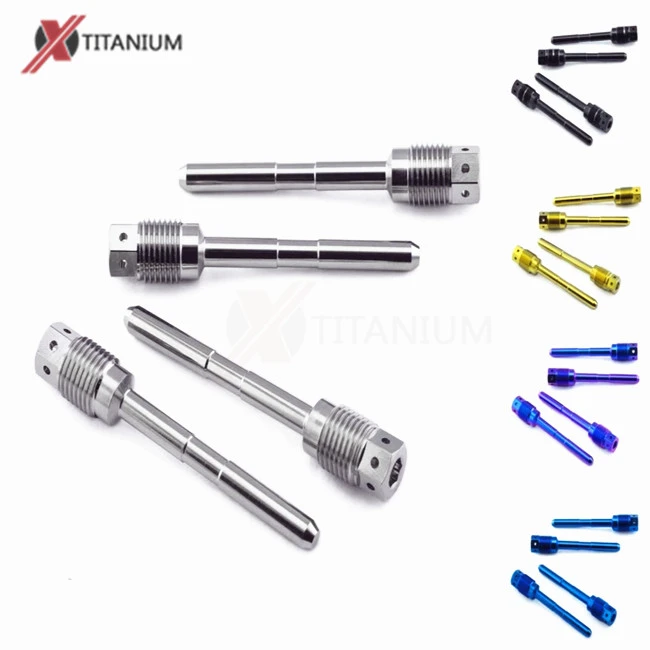

Titanium Brake Caliper Pad Pin For Motorcycle Oil Disc Clamp Guide

High-Performance Titanium Brake Caliper Pad Pin For Motorcycle Oil Disc Clamp Guide – Precision Engineered for Safety-Critical Applications

Baoji Chuanglian New Metal Material Co., Ltd. specializes in manufacturing high-precision Titanium Brake Caliper Pad Pin For Motorcycle Oil Disc Clamp Guide, crafted from aerospace-grade Gr.5 Ti-6Al-4V alloy. With over ten years of titanium machining expertise, our pins feature hardness ratings of HRC 32-36, precision ground tolerances of ±0.01mm, and available diameters from 4mm to 6mm with custom lengths ranging from 30mm to 60mm. Weighing approximately 5g-12g per unit, these components deliver 45% weight reduction compared to steel equivalents while maintaining tensile strength ≥895 MPa, ensuring reliable performance in professional racing and demanding brake systems.

Why Choose Titanium Alloy for Brake Caliper Guide Pins

Steel guide pins frequently fail in harsh operating environments due to corrosion and thermal degradation. Our titanium brake pad retention pins solve these critical issues through superior material science.

The Gr.5 Ti-6Al-4V alloy composition (90% Titanium, 6% Aluminum, 4% Vanadium) creates a natural passive oxide layer that resists road salts, brake fluid exposure (DOT 3/4/5.1 compatible), and atmospheric corrosion. This prevents the common "rust-welding" effect where steel pins seize inside aluminum caliper bodies.

With thermal conductivity of just 6.7 W/m·K versus steel's 50 W/m·K, these pins act as thermal barriers. They reduce heat transfer from brake pads to caliper fluid during aggressive braking cycles, helping maintain consistent brake performance and preventing vapor lock in extreme conditions.

The density of 4.43 g/cm³ delivers measurable unsprung weight reduction. For track motorcycles and performance applications, this directly improves suspension damping characteristics and steering response.

Technical Specifications and Material Properties

Production workshop

​​

​

Production process

Our Services

Custom solutions, fast delivery, competitive pricing, and excellent service.

​​

01

Titanium Product Manufacturing

Baoji Chuanglian New Metal Material Co., Ltd specializes in manufacturing high-quality titanium and rare metal products. With over ten years of experience, we produce titanium rods, plates, tubes, fasteners, and customized components. Our products meet strict national and international standards, ensuring durability and reliability. We cater to industries such as aerospace, medical, and petrochemical, providing high-performance titanium solutions tailored to customer needs.

02

Precision Titanium Machining

Equipped with advanced CNC machines, we offer precision machining services, including cutting, milling, drilling, and turning. Our experienced technicians ensure high accuracy and quality in every component. By continuously upgrading our technology, we meet complex machining demands for various industries. Whether you need standard titanium parts or custom-designed solutions, we provide efficient and reliable services.

​​

​​

03

Strict Quality Control

We maintain a rigorous quality control system from raw material selection to final inspection. Every product undergoes thorough testing to ensure superior performance and longevity. Our titanium products have been trusted by global companies for years, earning a reputation for reliability. With strict adherence to quality standards, we guarantee high-quality products with on-time delivery.

04

Global Titanium Solutions

Serving industries worldwide, we provide professional titanium solutions, from production to after-sales support. Our products are widely used in aerospace, medical, marine, and industrial fields. We focus on customer satisfaction, offering customized services and technical assistance. With a commitment to innovation and quality, we strive to build long-term partnerships and deliver high-value titanium products globally.

​​

Be used in a wide range of industries.



​​

Automotive Industry

​​

Electronics Industry

​​

Aerospace Industry

​​

Medical Industry

​​

Cars and Racing

​​

Consumer Electronics

Manufacturing Excellence and Quality Assurance

Our CNC machining facilities maintain strict dimensional controls throughout production. Each Titanium Brake Caliper Pad Pin For Motorcycle Oil Disc Clamp Guide undergoes multi-stage inspection protocols.

Positive Material Identification (PMI) using X-Ray Fluorescence verifies genuine Ti-6Al-4V composition. This prevents substitution with inferior Grade 2 titanium or stainless steel that lack necessary mechanical properties.

Thread profiles meet 6g tolerance class standards, confirmed through Go/No-Go gauge testing. This ensures proper fitment without galling or vibration-induced backing out during operation.

Random batch sampling undergoes destructive tensile testing to verify minimum 895 MPa strength requirements. Visual inspection checks for machining burrs, surface defects, and dimensional accuracy using calibrated measuring equipment.

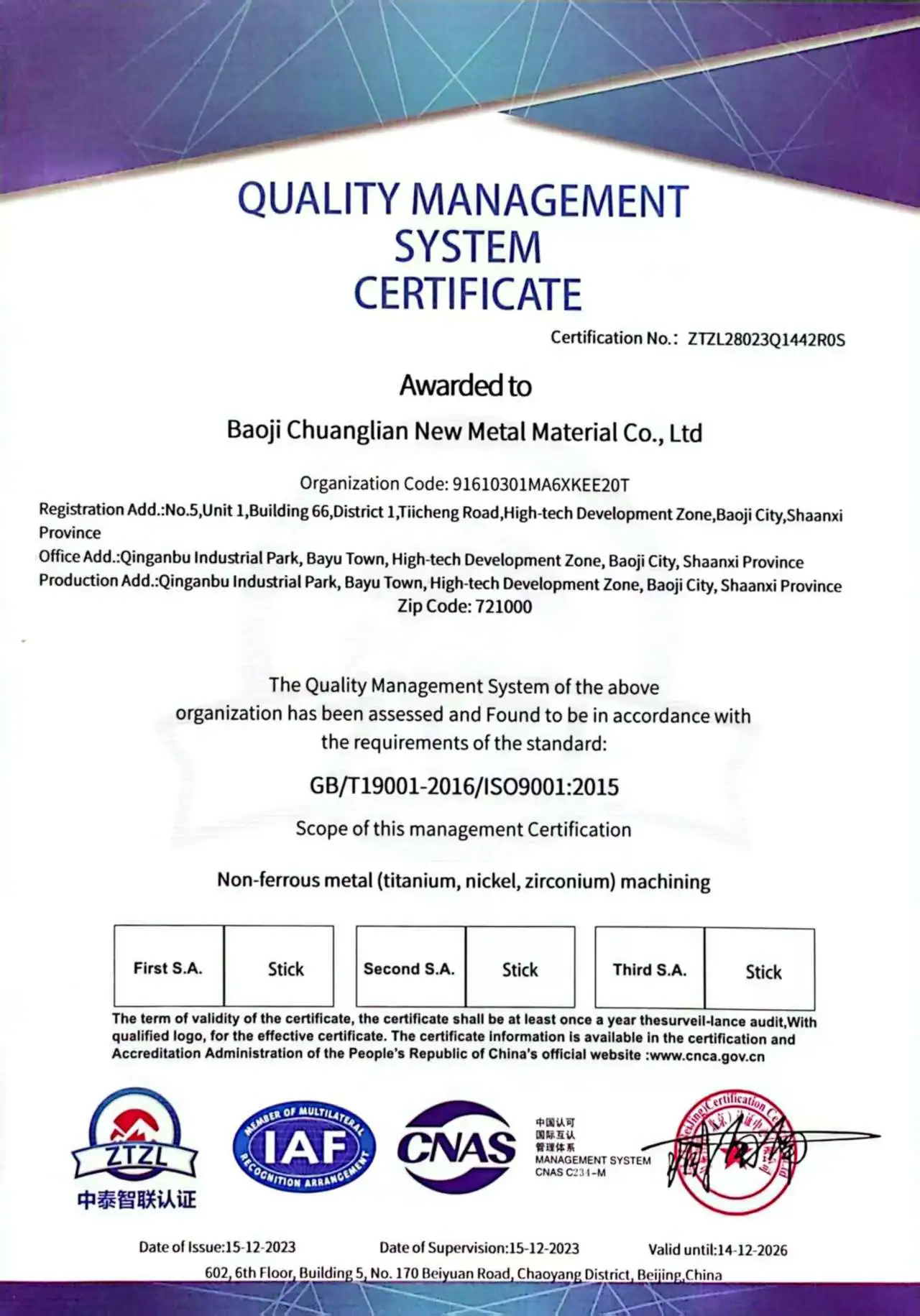

Every production lot includes detailed dimension reports and ISO 9001 certification documentation. This traceability supports safety-critical applications and regulatory compliance requirements.

Application Scenarios Across Motorsports and Premium Builds

Professional racing teams in MotoGP and World Superbike competitions rely on titanium caliper hardware for unsprung weight optimization. Every gram removed from brake components improves suspension performance and cornering stability at championship-level speeds.

Adventure touring motorcycles crossing rivers and operating in salted winter conditions benefit immensely. Unlike steel pins that corrode and seize into aluminum caliper mounts through galvanic reaction, titanium remains chemically neutral and easily serviceable even after thousands of harsh-weather miles.

High-performance street motorcycles equipped with Brembo, Nissin, or Tokico multi-piston calipers gain reliability upgrades. Off-road applications in motocross and enduro prevent field maintenance nightmares where corroded steel pins require drilling out for pad replacement.

Custom motorcycle builders and restoration specialists choose these pins for both functional performance and aesthetic appeal. Optional PVD coating in gold, blue, or black finishes maintains surface integrity while matching high-end build themes.

Supercar brake system refurbishments specify titanium guide pins for 4-piston and 6-piston calipers. They withstand aggressive chemical wheel cleaners that strip plating from standard hardware, maintaining appearance and function over extended service intervals.

Installation Guidance and Maintenance Benefits

Your brake system deserves components that simplify maintenance while enhancing safety. These pins install using standard procedures with improved long-term serviceability.

Clean caliper bores thoroughly before installation. Apply high-temperature ceramic brake grease to pin contact surfaces following manufacturer torque specifications for your specific caliper model.

The corrosion-resistant properties eliminate periodic replacement cycles common with steel hardware. Pads remain freely movable throughout their service life, ensuring even wear patterns and consistent brake feel.

During pad changes, titanium pins extract cleanly without penetrating oil or heat application. This reduces maintenance time and prevents damage to expensive caliper bodies from extraction procedures.

Thread integrity remains intact through multiple service cycles. The rolled thread manufacturing process preserves grain structure, providing superior fatigue resistance against repeated installation torque.

Frequently Asked Questions

What makes Ti-6Al-4V superior to stainless steel for brake caliper pins?

Ti-6Al-4V offers tensile strength matching Grade 8.8 steel bolts while weighing 45% less. It forms a stable oxide layer preventing galvanic corrosion with aluminum calipers, unlike stainless steel which can still corrode under brake fluid exposure and high temperatures.

Can these pins handle the heat generated during track day braking?

Absolutely. The pins maintain structural integrity and dimensional stability at temperatures exceeding 500°C. Low thermal conductivity prevents heat transfer to caliper fluid, reducing brake fade risk during sustained aggressive braking.

Are custom dimensions available for specialized caliper applications?

Yes. We manufacture custom lengths from 30mm to 60mm and diameters from 4mm to 6mm with ±0.01mm precision grinding. Contact our technical team with your specific caliper measurements and quantity requirements.

How does the precision tolerance benefit brake performance?

The ±0.01mm tolerance ensures proper sliding fit within caliper bores. This prevents binding while eliminating excessive play that causes pad rattle, delivering consistent brake modulation and pedal feel throughout the service interval.

What certification documentation is provided with orders?

Every shipment includes ISO 9001 certification, dimensional inspection reports, and material composition verification. This documentation supports traceability requirements for professional racing teams and OEM applications.

Do the pins require special tools or procedures for installation?

No special tools are needed. Standard installation procedures apply using manufacturer-specified torque values. The corrosion resistance and dimensional accuracy actually simplify installation compared to seized or improperly fitting steel components.

Partner With a Trusted Titanium Manufacturer

Baoji Chuanglian New Metal Material Co., Ltd. delivers precision-engineered titanium brake components backed by comprehensive quality systems and responsive technical support. Our 15-20 day production lead times, secure packaging in capped plastic tubes, and flexible shipping options support both prototype development and volume production requirements.

For technical specifications, custom dimension quotes, or bulk pricing on Titanium Brake Caliper Pad Pin For Motorcycle Oil Disc Clamp Guide, contact our engineering team at info@cltifastener.com today.
