The Unique Properties of Titanium Rods and Their Impact on Welding

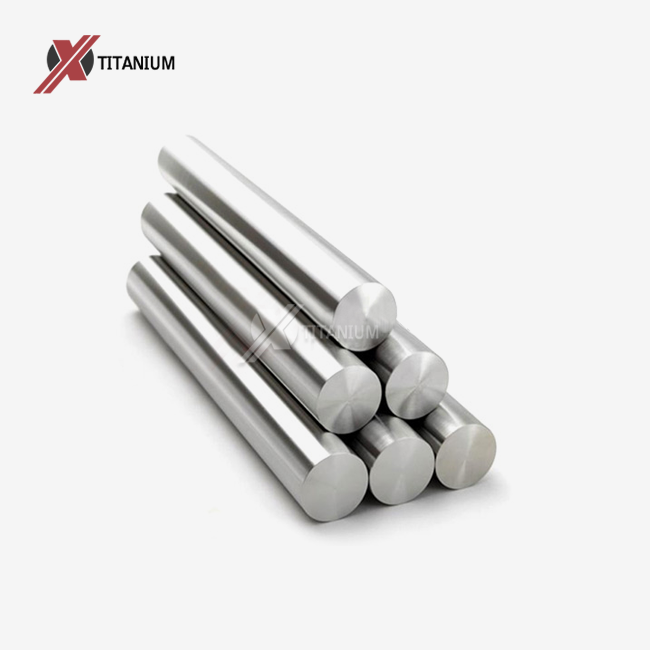

Titanium rods possess a remarkable combination of properties that make them highly desirable in various industries. Their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility have led to widespread use in aerospace, medical, and marine applications. However, these same characteristics that make titanium rods so valuable also contribute to the complexities of welding them.
The high melting point of titanium (approximately 1668°C or 3034°F) requires significant heat input during welding. This, coupled with titanium's low thermal conductivity, can lead to localized overheating and potential warping of the material. Additionally, titanium's affinity for oxygen and nitrogen at high temperatures can result in embrittlement of the weld zone if proper shielding is not maintained throughout the process.
Another crucial factor to consider is the alloy composition of the titanium rods. Different grades of titanium, such as commercially pure (CP) titanium or alloys like Ti-6Al-4V, may require slightly different welding parameters and filler materials to achieve optimal results. The crystal structure of titanium also undergoes a phase transformation at elevated temperatures, which can affect the mechanical properties of the welded joint if not properly managed.
Overcoming Challenges in Titanium Rod Welding
To address the unique challenges posed by titanium rods, welders employ several specialized techniques:
- Inert Gas Shielding: Maintaining a clean, oxygen-free environment is paramount. Welders use high-purity argon or helium as shielding gases to protect the molten weld pool and surrounding heat-affected zone from atmospheric contamination.
- Proper Cleaning and Preparation: Meticulous cleaning of the titanium rods before welding is essential to remove any surface contaminants that could compromise weld quality.
- Controlled Heat Input: Precise control of welding parameters, including current, voltage, and travel speed, helps prevent excessive heat buildup and minimize distortion.
- Post-Weld Heat Treatment: In some cases, heat treatment after welding can help relieve residual stresses and optimize the mechanical properties of the welded joint.
Advanced Welding Techniques for Titanium Rods
While Gas Tungsten Arc Welding (GTAW) remains the most common method for welding titanium rods, other advanced techniques have emerged to address specific challenges or improve efficiency:
Laser Beam Welding
Laser beam welding offers several advantages for joining titanium rods, particularly in applications requiring high precision and minimal heat input. This process uses a focused laser beam to create a narrow, deep weld with a small heat-affected zone. The concentrated energy allows for rapid welding speeds, reducing the time that the material is exposed to high temperatures and potentially minimizing distortion.
One of the key benefits of laser welding for titanium rods is the ability to perform autogenous welds without filler material in many cases. This can be particularly advantageous when working with thin-walled titanium tubing or in applications where the addition of filler metal is undesirable.
Electron Beam Welding
Electron beam welding (EBW) is another high-precision technique well-suited for titanium rods. This process takes place in a vacuum chamber, which inherently provides excellent protection against atmospheric contamination. The high-energy electron beam can penetrate deeply into the material, allowing for single-pass welds on thick sections that would require multiple passes with traditional methods.
EBW is particularly valuable for welding titanium rods in aerospace applications, where stringent quality requirements and the need for high-integrity joints are paramount. The process can produce extremely narrow welds with minimal distortion, making it ideal for joining critical components in aircraft engines or spacecraft structures.
Friction Stir Welding
Friction stir welding (FSW) is a solid-state joining process that has gained traction for welding titanium rods in certain applications. This technique uses a rotating tool to generate frictional heat and plastically deform the material, creating a bond without melting the base metal. FSW offers several advantages for titanium, including:
- Reduced risk of contamination, as the process occurs below the melting point of titanium
- Minimal distortion and residual stress compared to fusion welding methods
- Ability to join dissimilar materials or alloys that may be challenging to weld conventionally
While FSW equipment can be expensive and has limitations in terms of joint geometry, it has found applications in aerospace and automotive industries for joining titanium rods and other components.
Quality Control and Inspection of Welded Titanium Rods
Ensuring the integrity of welded titanium rods is crucial for maintaining their performance in demanding applications. A comprehensive quality control program typically includes several inspection methods:
Visual Inspection
Visual examination is the first line of defense in identifying potential weld defects. Trained inspectors look for signs of inadequate penetration, undercutting, porosity, or discoloration that may indicate contamination. The characteristic silver color of a properly shielded titanium weld serves as a quick visual indicator of weld quality.
Non-Destructive Testing
Various non-destructive testing (NDT) methods are employed to evaluate the integrity of welded titanium rods without compromising the part:
- Radiographic Testing (RT): X-ray or gamma-ray imaging can reveal internal defects such as porosity, inclusions, or lack of fusion.
- Ultrasonic Testing (UT): High-frequency sound waves are used to detect subsurface flaws and measure weld penetration.
- Liquid Penetrant Testing (PT): This method can reveal surface-breaking defects that may be invisible to the naked eye.
- Eddy Current Testing: Particularly useful for detecting surface and near-surface defects in titanium welds.
Mechanical Testing
To verify the structural integrity of welded titanium rods, various mechanical tests may be performed:
- Tensile Testing: Evaluates the strength and ductility of the welded joint.
- Bend Testing: Assesses the ductility and soundness of the weld.
- Hardness Testing: Measures the hardness profile across the weld to identify any significant changes in material properties.
- Fatigue Testing: Particularly important for applications where the welded titanium rods will be subjected to cyclic loading.
These quality control measures help ensure that welded titanium rods meet the stringent requirements of industries such as aerospace, medical device manufacturing, and chemical processing.
Conclusion
Welding titanium rods presents unique challenges due to the metal's reactive nature and specific material properties. However, with the right techniques, equipment, and expertise, high-quality welds can be achieved. Advanced welding methods like laser beam welding, electron beam welding, and friction stir welding offer new possibilities for joining titanium rods in specialized applications. Rigorous quality control measures, including visual inspection, non-destructive testing, and mechanical evaluation, are essential to ensure the integrity of welded titanium components. As technology continues to evolve, new innovations in titanium welding are likely to emerge, further expanding the possibilities for this versatile material in various industries.
At Baoji Chuanglian New Metal Material Co., Ltd., we specialize in manufacturing high-quality titanium rods and other titanium products. With over a decade of experience in titanium machining and research, we offer customized solutions to meet your specific needs. Whether you're in the aerospace, medical, or chemical processing industry, our titanium rods provide exceptional performance and reliability. To learn more about our titanium products or discuss your welding requirements, please contact us at info@cltifastener.com or djy6580@aliyun.com.
FAQ
What are the most common welding techniques for titanium rods?
Gas Tungsten Arc Welding (GTAW) or TIG welding is the most common technique. Other methods include laser beam welding and electron beam welding for specialized applications.
How does the surface finish of titanium rods affect welding?
The surface finish can significantly impact weld quality. Polished, ground, or machined surfaces may require different preparation techniques to ensure optimal welding results.
Can titanium rods be welded to other metals?
While possible, welding titanium to dissimilar metals is challenging due to differences in melting points and thermal expansion. Special techniques and transition materials may be required.
