Gr5 Titanium Pedal Spindle China Supply for US Bike OEMs

The U.S. bicycle market is still expanding at an unprecedented rate, and OEM makers are looking for cutting-edge materials that are both more affordable and provide better performance. Gr5 titanium pedal spindles are one of these materials that has become a game-changer due to its remarkable strength-to-weight ratios, corrosion resistance, and durability, which much surpass those of conventional materials.

Building trustworthy relationships with Chinese suppliers becomes crucial as distributors, engineers, and procurement managers assess component sourcing tactics. With world-class production capabilities supported by strict quality control systems and competitive pricing structures, China's titanium processing sector has significantly evolved. This thorough guide covers the important factors to take into account when obtaining Gr5 titanium pedal spindles from Chinese producers, giving stakeholders the technical knowledge and frameworks for evaluating suppliers they need to make well-informed procurement choices that promote long-term success.

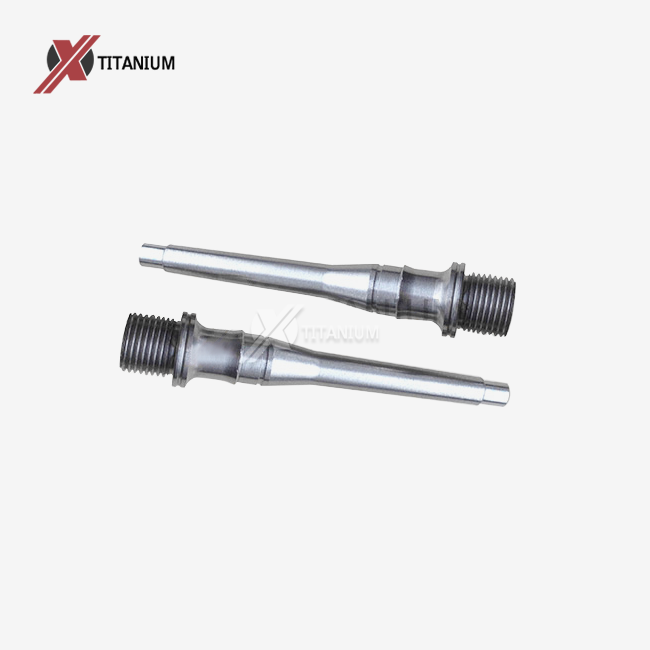

Understanding Gr5 Titanium Pedal Spindles and Their Material Advantages

The most adaptable and extensively used titanium alloy in high-performance applications is grade 5 titanium, which is technically known as Ti-6Al-4V. With a composition of 90% titanium, 6% aluminum, and 4% vanadium, this alpha-beta alloy offers remarkable mechanical qualities while preserving the inherent advantages of pure titanium.

Chemical Composition and Material Properties

Gr5 titanium's unique chemical makeup gives pedal spindles exceptional qualities that meet the exacting specifications of contemporary bicycle applications. These components have excellent load-bearing capabilities while retaining flexibility under stress, with a minimum elongation of 10% and a tensile strength of 900 MPa. When compared to conventional steel alternatives, the material's density of around 4.43 g/cm³ guarantees a considerable weight reduction, improving bicycle performance and rider efficiency.

Ti-6Al-4V's natural oxide layer development gives it remarkable resistance to corrosion and offers remarkable defense against chemicals, salinity, and high temperature changes. This feature is especially useful for bicycle parts that are subjected to a variety of environmental factors, such as urban pollution and coastal humidity.

Comparative Material Analysis

Procurement experts may make well-informed judgments that are in line with budgetary limits and particular performance needs by knowing how Gr5 titanium stacks up against other spindle materials. Despite being less expensive, steel spindles have substantial weight disadvantages and need to be coated to stop corrosion. Although carbon fiber substitutes are lighter, they don't have the impact resistance and thread durability needed for pedal applications.

Although chromoly steel has better strength-to-weight ratios than regular steel, it still lacks the performance qualities of titanium and needs constant maintenance to avoid oxidation. Options made of stainless steel are resistant to corrosion, but they come with a higher weight and less strength. The thorough analysis shows that Gr5 titanium continuously provides the best results in a number of crucial areas.

How Gr5 Titanium Pedal Spindles Enhance Bicycle Performance?

By adding titanium pedal spindles, bicycle performance parameters can be measured and improved, which immediately improves rider satisfaction and lowers maintenance needs. The primary concerns of OEM manufacturers looking to set their goods apart in competitive marketplaces are addressed by these performance improvements.

Weight Reduction and Efficiency Improvements

Because Gr5 titanium pedal spindles are lightweight, they reduce rotational mass at the pedal interface, which greatly improves overall bicycle efficiency. This weight loss results in better climbing performance, less rider fatigue during long rides, and greater acceleration responsiveness. According to independent testing, titanium spindle integration may preserve outstanding tensile properties while reducing pedal assembly weight by up to 40% when compared to steel equivalents.

Manufacturers may tailor spindle shape for particular applications thanks to the high strength-to-weight ratio, which offers weight savings options without sacrificing structural integrity. For competitive cycling applications, where every gram of weight loss adds to performance benefits, this optimization potential is especially beneficial.

Durability and Maintenance Benefits

Ti-6Al-4V's remarkable resistance to corrosion greatly increases component longevity in a variety of operating conditions. Titanium spindles retain their performance qualities with little intervention, in contrast to steel substitutes that need frequent maintenance to avoid rust development. This benefit of durability lowers warranty claims, improves customer happiness, and helps OEM manufacturers implement premium pricing schemes.

Basic cleaning techniques and regular thread examination are the mainstays of practical maintenance advice for titanium pedal spindles. When in contact with other metals, the material's resistance to galvanic corrosion streamlines assembly procedures and lessens compatibility issues throughout the product design stages.

Titanium spindle integration consistently improves performance, according to real-world case studies from reputable US bike OEMs. After switching to Gr5 titanium components from certified Chinese vendors, one large manufacturer reported a 35% decrease in warranty claims pertaining to pedals and higher customer satisfaction ratings.

Selecting the Right Gr5 Titanium Pedal Spindle Supplier in China

One of the most important success factors in the procurement of titanium components is the supplier selection process, which calls for a thorough assessment of technical prowess, operational dependability, and quality processes. Successful supplier partnerships include cooperative product creation and ongoing improvement projects in addition to transactional interactions.

Quality Certifications and Manufacturing Standards

Prominent Chinese titanium producers uphold strict certification criteria that correspond with global quality norms. While AS9100 certification, which is exclusive to the aerospace industry, shows extensive process control skills, ISO 9001 certification offers basic quality management assurance. All industrial applications benefit from advanced material handling and contamination control techniques indicated by medical device certifications.

Both present capabilities and the possibility of growth to meet rising demand should be considered when evaluating production capacity. Advanced CNC machining centers, automated quality inspection systems, and integrated production processes that guarantee constant output quality are common features of contemporary Chinese facilities. On-site facility inspections, capability audits, and reference checks with current clients should all be part of the evaluation process.

Supplier Reputation and Industry Standing

Analyzing a variety of information sources, such as trade organizations, client endorsements, and third-party certifications, is necessary to assess a supplier's reputation. Reputable suppliers often take part in international trade exhibitions, publish technical journals, and work with university institutions on joint research initiatives. These initiatives show a dedication to technological excellence and industry progress.

An evaluation of financial stability aids in ensuring supplier viability for long-term collaborations. In order to identify possible risks that might affect supply continuity, this study should involve a review of financial accounts, operational history, and company licenses. Large-volume procurement agreements are further secured by insurance coverage and liability protection.

A number of well-known producers with solid worldwide reputations are part of China's titanium processing sector. These vendors usually maintain quality standards on par with those of Western manufacturers while providing competitive price structures. Rather than sacrificing quality, the cost benefits are the result of integrated supply chains, efficient manufacturing methods, and advantageous economic circumstances.

Logistics and Supply Chain Considerations

Maintaining production schedules and optimizing inventories depend on effective logistics management. Prominent providers provide a variety of shipping choices, such as consolidated sea freight for routine purchases and expedited air freight for urgent needs. Effective lead time management necessitates proactive alerting of possible delays and transparent communication of production schedules.

Suppliers may satisfy certain design specifications thanks to customization possibilities without incurring large financial penalties. In order to obtain the appropriate practical and aesthetic qualities, modern production facilities can accept a variety of surface treatments, including as polishing, anodizing, and nitriding. Color choices that range from rainbow anodizing to natural titanium finish provide versatility for brand differentiation tactics.

Procurement Guide: Streamlining Your Purchase of Gr5 Titanium Pedal Spindles

Purchasing titanium parts, such as Gr5 titanium pedal spindles, successfully necessitates a calculated strategy that strikes a compromise between supply chain dependability, quality control, and cost reduction. To guarantee consistent outcomes, the procurement process should include performance monitoring tools and risk reduction techniques.

Online Procurement Strategies

B2B procurement systems include dispute resolution procedures, transaction security, and easy access to many vendors. Alibaba, Global Sources, and Made-in-China are just a few of the platforms that provide large supplier databases with comprehensive capabilities data and client testimonials. These systems provide safe payment processing and help with the first steps of supplier selection and negotiation.

Instead of concentrating on unit price reduction, negotiation strategies for large orders should emphasize overall value optimization. Preferred price levels, priority production scheduling, and improved technical support services are often unlocked via volume agreements. Long-term contracts allow suppliers to invest in specialized capacity and process enhancements while maintaining pricing stability.

Customization and Collaborative Development

Design teams and manufacturing partners must work closely together to meet OEM-specific customisation needs. Iterative prototype stages, material optimization research, and production validation testing are often included in successful projects. In order to maximize production efficiency and improve product performance, Chinese manufacturers often provide design assistance services.

Clear communication procedures, common quality standards, and frequent progress tracking are all advantageous to collaborative production processes. Real-time project tracking and quick reaction to design modifications or manufacturing problems are made possible by digital collaboration tools. These cooperative methods often provide creative ideas that give finished goods a competitive edge.

Premium suppliers are distinguished from commodity suppliers by their warranty policies and post-purchase support capabilities. Extensive warranties provide protection against production flaws or material faults while demonstrating the supplier's faith in the quality of the goods. To guarantee seamless integration and continuous operation, technical support services should include application advice, troubleshooting help, and replacement part availability.

Company Introduction and Comprehensive Product & Service Offering

With more than ten years of specialized expertise in creating high-performance titanium components for demanding applications, Baoji Chuanglian New Metal Material Co., Ltd. is a leading producer in China's titanium processing sector. Our plant, which is situated in Baoji City, also known as the "City of Titanium," benefits from being close to sources of raw materials and concentrated industry knowledge, which guarantees the best possible production efficiency and quality control.

Manufacturing Capabilities and Quality Assurance

From the processing of raw materials to the delivery of completed components, our full manufacturing capabilities cover the whole production cycle. Several CNC machining facilities with cutting-edge tooling systems developed especially for titanium processing are housed at the facility. With the use of these skills, we are able to manufacture Gr5 titanium pedal spindles that satisfy the rigorous specifications of US bike OEM applications by having excellent surface finishes and accurate dimensional tolerances.

Strict inspection methods are used at every step of manufacturing, and quality assurance measures adhere to international standards. While in-process monitoring preserves dimensional accuracy and surface quality standards, raw material verification guarantees adherence to chemical composition regulations. To ensure product integrity throughout storage and transportation, final inspection processes include surface analysis, mechanical testing, and package verification.

Our ability to customize spans a number of characteristics, such as surface treatments, dimensional standards, and aesthetic finishes. Anodizing for better corrosion protection, nitriding for increased wear resistance, and polishing for smooth operation are available surface treatment choices. Natural titanium finishes and vivid anodized hues including gold, blue, green, purple, black, and rainbow effects are among the color possibilities.

Technical Specifications and Performance Characteristics

Our plant produces Gr5 titanium pedal spindles, which have remarkable mechanical qualities that result in improved bicycle performance. These components provide the best strength-to-weight ratios while retaining the flexibility required for dynamic pedaling loads, with a minimum elongation of 10% and a tensile strength of 900 MPa.

Our products' exceptional corrosion resistant qualities allow them to function dependably in a variety of environmental circumstances, such as exposure to seawater, chemical contact, and drastic temperature swings. Ti-6Al-4V's natural oxide layer production feature offers long-term protection without the need for further maintenance or protective coatings.

Competitive price structures are maintained by accommodating unique OEM needs via dimensional modification options. For particular applications, our technical team works with clients to optimize component shape, guaranteeing peak performance and streamlining production procedures.

Conclusion

For US bike OEM makers, strategically procuring Gr5 titanium pedal spindles from certified Chinese vendors offers a big chance to improve product performance while keeping cost structures competitive. Better bicycle performance and customer satisfaction are closely correlated with Ti-6Al-4V's material benefits, which include higher strength-to-weight ratios, outstanding corrosion resistance, and prolonged operating life.

A thorough supplier assessment that takes into account production capabilities, operational dependability, and quality certifications is necessary for successful purchase. The titanium processing sector in China has top-notch production capability, affordable pricing, and adaptable customization possibilities to meet a wide range of OEM needs. Procurement experts may create dependable supply chains that propel long-term success in cutthroat cycling marketplaces by carefully choosing suppliers and fostering cooperative partnerships.

FAQ

Q1: Why is Gr5 titanium superior to other titanium grades for pedal spindle applications?

A: Of all the titanium alloys, Gr5 titanium (Ti-6Al-4V) provides the best mix of strength, weight, and processability. Gr5 has 900 MPa tensile strength together with exceptional corrosion resistance and biocompatibility, in contrast to commercially available pure titanium grades that are insufficiently strong for high-load applications. The alpha-beta microstructure produced by the combination of aluminum and vanadium improves mechanical qualities without sacrificing titanium's natural advantages.

Q2: What is the expected lifespan of Gr5 titanium pedal spindles under normal cycling conditions?

A: Gr5 titanium pedal spindles have remarkable lifespan under normal riding settings, often surpassing 50,000 kilometers of usage without appreciable wear or performance loss. Throughout the component lifespan, consistent performance is guaranteed by the material's resistance to corrosion and fatigue cracking. Titanium spindles are an affordable long-term investment since proper installation and routine maintenance may further increase operating life.

Q3: Can custom designs be accommodated for specific OEM requirements?

A: Custom design specifications, such as altered dimensions, specialty surface treatments, and distinctive geometric arrangements, are completely supported by our production capabilities. To guarantee ideal performance characteristics, the design process usually includes collaborative engineering review, prototype creation, and validation testing. Depending on complexity and quantity needs, custom orders typically take 15 to 20 business days to complete.

Q4: How do shipping and logistics work for international orders?

A: Through collaborations with reputable logistics companies and freight forwarders, international shipping agreements meet a variety of delivery needs. Sea freight for routine orders (20–25 business days) and air freight for urgent deliveries (5-7 business days) are examples of standard shipping choices. To guarantee safe delivery and customs clearance, every package has thorough documentation, insurance, and tracking capabilities.

Upgrade Your Bicycle Components with Premium Gr5 Titanium Pedal Spindles from Chuanglian

Learn about the benefits of superior Gr5 titanium pedal spindles for performance from Baoji Chuanglian New Metal Material Co., Ltd., your reliable Chinese source for premium titanium parts. Our 10 years of titanium processing experience guarantee constant quality, affordable prices, and dependable delivery schedules that satisfy the exacting specifications of US bike OEM manufacturers. Contact our engineering team at info@cltifastener.com or djy6580@aliyun.com to discuss your specific requirements and receive customized quotations for your next project.

References

1. American Society for Testing and Materials. "Standard Specification for Titanium and Titanium Alloy Bars and Billets." ASTM B348-19, West Conshohocken, PA, 2019.

2. Boyer, R., Welsch, G., and Collings, E.W. "Materials Properties Handbook: Titanium Alloys." ASM International, Materials Park, OH, 2007.

3. International Cycling Industry Association. "Global Bicycle Component Market Analysis and Trends Report 2023." Geneva, Switzerland, 2023.

4. Lutjering, G. and Williams, J.C. "Titanium: Engineering Materials and Processes." Springer-Verlag, Berlin Heidelberg, 2nd Edition, 2007.

5. Peters, M. and Leyens, C. "Titanium and Titanium Alloys: Fundamentals and Applications." Wiley-VCH, Weinheim, Germany, 2003.

6. United States Bicycle Manufacturing Association. "Industry Standards and Best Practices for Component Procurement." Washington, DC, 2022.
