Comprehending Titanium and Titanium Alloys
The Basics of Titanium
Titanium, in its pure form, is a remarkable metal with a unique combination of properties. It boasts an impressive strength-to-weight ratio, making it lighter than steel but just as strong. This elemental metal also exhibits excellent corrosion resistance, thanks to a protective oxide layer that forms on its surface when exposed to air or water. These characteristics have made pure titanium a popular choice in various industries, from aerospace to jewelry manufacturing.
However, pure titanium has limitations. It can be challenging to work with due to its high melting point and reactivity at elevated temperatures. Moreover, while strong, it may not meet the demanding requirements of certain high-stress applications. This is where titanium alloys come into play, offering enhanced properties that expand the metal's utility across diverse sectors.
The Evolution to Titanium Alloys
Titanium alloys represent an evolution in metallurgy, designed to amplify the inherent strengths of titanium while mitigating its weaknesses. By introducing additional elements into the titanium matrix, metallurgists have created materials that surpass the performance of pure titanium in many aspects. These alloys retain titanium's core benefits - lightweight nature and corrosion resistance - while introducing improvements in strength, ductility, and heat resistance.
Common alloying elements include aluminum, vanadium, molybdenum, and zirconium. Each of these elements brings specific enhancements to the alloy. For instance, aluminum increases strength and reduces density, while vanadium improves heat treatability and overall strength. The result is a range of titanium alloys, each tailored for specific applications and environmental conditions.
Titanium Alloy Rods: A Prime Example

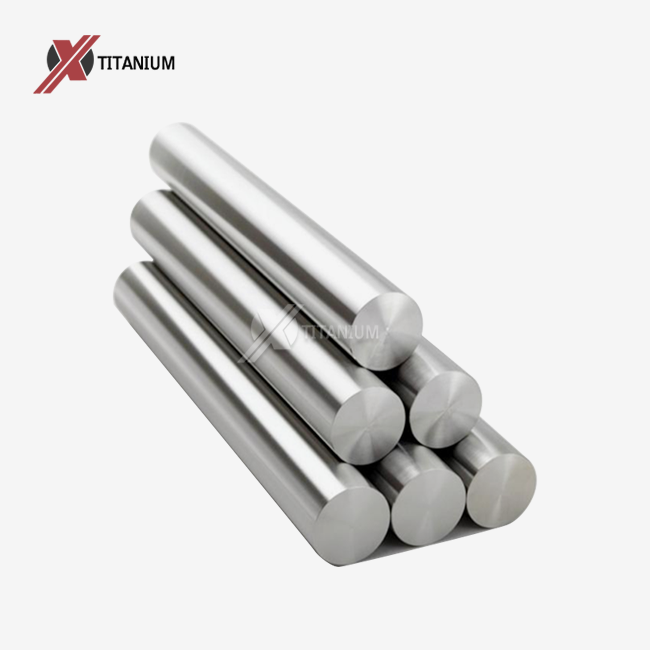

Titanium alloy rods exemplify the advantages of these engineered materials. These rods, often made from alloys like Ti-6Al-4V (Grade 5) or Ti-3Al-2.5V (Grade 9), offer a superior balance of strength, weight, and corrosion resistance. The alloying process allows for the creation of rods with tensile strengths ranging from 900 to 1100 MPa and yield strengths between 700 and 950 MPa - figures that significantly outperform pure titanium.
The versatility of titanium alloy rods is evident in their wide diameter range, typically from 5mm to 200mm, and the ability to customize lengths to meet specific project requirements. This flexibility, combined with their exceptional properties, makes titanium alloy rods indispensable in industries ranging from aerospace and medical implants to chemical processing and sports equipment manufacturing.
Comparative Analysis: Titanium vs. Titanium Alloy
Strength and Durability
When comparing pure titanium to titanium alloys, the difference in strength and durability becomes apparent. Pure titanium, while strong in its own right, cannot match the superior strength of many titanium alloys. Titanium alloy rods, for example, can achieve tensile strengths up to 1100 MPa, significantly higher than pure titanium. This enhanced strength allows titanium alloys to withstand greater loads and stresses, making them ideal for applications in aerospace, where components must endure extreme conditions.
The improved strength of titanium alloys doesn't come at the cost of weight. In fact, some alloys maintain a density similar to or only slightly higher than pure titanium, preserving the excellent strength-to-weight ratio that titanium is known for. This balance of strength and lightweight properties is particularly valuable in the design of high-performance aircraft and spacecraft, where every gram matters.
Corrosion Resistance
Both pure titanium and titanium alloys exhibit exceptional corrosion resistance, but there are subtle differences. Pure titanium forms a stable, protective oxide layer when exposed to oxygen, providing excellent resistance to corrosion in many environments. Titanium alloys, depending on their composition, can offer comparable or even superior corrosion resistance in specific conditions.
Titanium alloy rods, particularly those made from grades like Ti-6Al-4V, demonstrate outstanding corrosion resistance in marine and chemical environments. This makes them invaluable in industries such as offshore oil and gas, where materials must withstand the corrosive effects of seawater and harsh chemicals. The ability to maintain structural integrity in these challenging conditions contributes to the long-term durability and safety of equipment and structures.
Workability and Fabrication
The workability of titanium and its alloys is another area where significant differences emerge. Pure titanium, while relatively soft and ductile, can be challenging to machine due to its tendency to gall and its relatively low thermal conductivity. Titanium alloys, on the other hand, can be engineered to improve machinability and formability.
Titanium alloy rods benefit from improved workability, allowing for more precise manufacturing processes. This enhanced workability enables the production of complex shapes and components, expanding the potential applications of titanium alloys. Additionally, some titanium alloys respond well to heat treatment, allowing for further optimization of their mechanical properties through controlled heating and cooling processes.
Applications and Industries: Titanium Alloy Rods in Focus
Aerospace and Defense
The aerospace industry has been a driving force behind the development of titanium alloys, and titanium alloy rods play a crucial role in this sector. These rods are used in the construction of aircraft frames, engine components, and landing gear systems. The high strength-to-weight ratio of titanium alloy rods contributes to fuel efficiency and overall performance of aircraft.
In defense applications, titanium alloy rods find use in armored vehicles, missile systems, and naval vessels. Their ability to withstand high stresses and resist corrosion makes them ideal for these demanding environments. The customizable nature of titanium alloy rods, with diameters ranging from 5mm to 200mm, allows for precise engineering solutions in various defense-related projects.
Medical and Biomedical Engineering
The biocompatibility of titanium alloys has revolutionized the field of medical implants and devices. Titanium alloy rods are extensively used in orthopedic implants, such as hip and knee replacements, as well as in dental implants. The material's ability to integrate with bone tissue (osseointegration) makes it an excellent choice for long-term implants.
Beyond implants, titanium alloy rods are utilized in the manufacturing of surgical instruments and medical devices. Their corrosion resistance and ability to withstand sterilization processes without degradation ensure the longevity and reliability of these critical tools. The customizable surface finish of titanium alloy rods, which can be polished, rough, or tailored to specific requirements, allows for optimal functionality in various medical applications.
Chemical and Industrial Processing
In the realm of chemical and industrial processing, titanium alloy rods shine due to their exceptional corrosion resistance and durability. These rods are employed in the construction of heat exchangers, pressure vessels, and piping systems in chemical plants and refineries. Their ability to withstand aggressive chemicals and high temperatures makes them indispensable in these harsh environments.
The versatility of titanium alloy rods is further exemplified in their use across various industrial sectors. From pulp and paper mills to desalination plants, these rods contribute to the longevity and efficiency of critical equipment. The customizable lengths of titanium alloy rods allow for precise fitting in diverse industrial applications, ensuring optimal performance and minimal maintenance requirements.
Conclusion
In conclusion, while titanium and titanium alloys share some fundamental properties, the differences between them are significant and impactful. Titanium alloys, particularly in the form of titanium alloy rods, offer enhanced strength, improved workability, and tailored performance characteristics that pure titanium cannot match. These advancements have expanded the applications of titanium-based materials across numerous industries, from aerospace and medicine to chemical processing and beyond. The superior properties of titanium alloys, including their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility, make them indispensable in modern engineering and manufacturing.
If you're looking to harness the power of titanium alloy rods for your next project, look no further than Baoji Chuanglian New Metal Material Co., Ltd. As specialists in titanium products with over a decade of experience, we offer a wide range of high-quality titanium alloy rods tailored to your specific needs. Whether you're in aerospace, medical, or industrial sectors, our expertise can help you find the perfect titanium solution. Contact us today at info@cltifastener.com or djy6580@aliyun.com to discuss how our titanium alloy rods can elevate your project to new heights.
FAQs
What are the main advantages of using titanium alloy rods?
Titanium alloy rods offer exceptional strength, corrosion resistance, and a high strength-to-weight ratio. They are ideal for applications requiring durability in harsh environments.
Can titanium alloy rods be customized for specific applications?
Yes, titanium alloy rods can be customized in terms of diameter (5mm - 200mm), length, and surface finish to meet specific project requirements.
Are titanium alloy rods suitable for medical implants?
Absolutely. Titanium alloys are biocompatible and widely used in medical implants and devices due to their ability to integrate with bone tissue.
How do titanium alloy rods perform in corrosive environments?
Titanium alloy rods exhibit excellent corrosion resistance, particularly in marine and chemical environments, making them suitable for offshore and industrial applications.
What industries commonly use titanium alloy rods?
Titanium alloy rods are widely used in aerospace, medical, chemical processing, and sports equipment industries, among others.
References
1. Smith, J.R. (2019). "Titanium and Its Alloys: Properties, Processing, and Applications in Modern Industry." Materials Science Today, 45(2), 112-128.
2. Chen, Q. & Thouas, G.A. (2015). "Metallic implant biomaterials." Materials Science and Engineering: R: Reports, 87, 1-57.
3. Williams, D.F. (2008). "On the mechanisms of biocompatibility." Biomaterials, 29(20), 2941-2953.
4. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). "Titanium Alloys for Aerospace Applications." Advanced Engineering Materials, 5(6), 419-427.
5. Lutjering, G. & Williams, J.C. (2007). "Titanium (Engineering Materials and Processes)." Springer, Berlin.
