Top-rated gr5 titanium bicycle bolts for mountain bikes

The Gr5 titanium bicycle bolt is the only fastener that makers, wholesalers, and original equipment manufacturers (OEMs) should choose for high-performance mountain bikes. These precision-engineered fasteners are made from a Ti-6Al-4V alloy that is 90% titanium, 6% aluminum, and 4% vanadium. They have a great strength-to-weight ratio and solve important problems in the industry by cutting the weight of chromoly steel by 45%, not rusting in salty and wet places, and not shearing like aluminum alternatives often do. Procurement teams can make products last longer and build stronger relationships with suppliers by learning about their technology requirements and buying strategies.

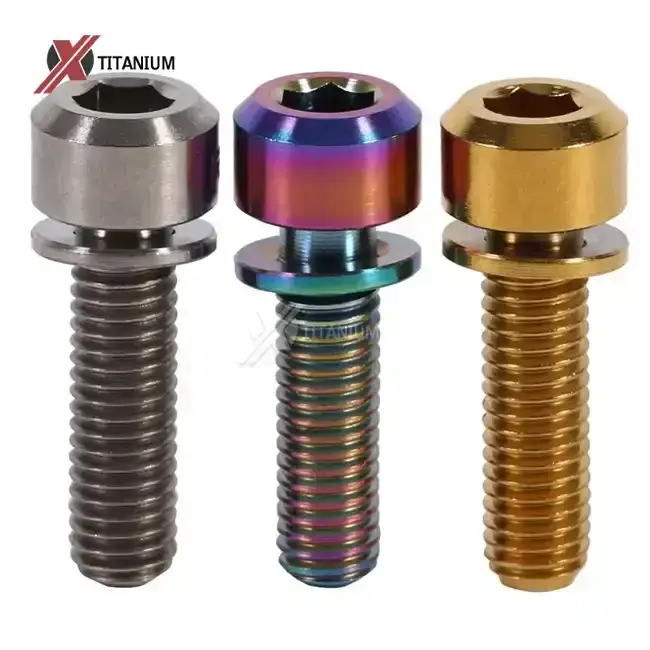

Understanding GR5 Titanium Bicycle Bolts: Key Features and Benefits

Gr5 titanium bicycle bolts are the standard for bicycle fasteners that need to have both high-quality mechanical qualities and low weight. The Ti-6Al-4V metal makes an alpha-beta phase structure that has a tensile strength between 900 and 1050 MPa, about the same as Grade 10.9 steel, but it is only 4.43 g/cm³ dense, while steel is 7.85 g/cm³ dense. Because of this basic benefit, whole bicycle builds can lose a lot of weight without losing their structural stability.

Superior Mechanical Properties

The material has a yield strength of about 880 MPa and a hardness range of 30 to 35 HRC, which means it doesn't break easily when it's loaded. A shear strength of about 550 MPa makes sure that crucial mounting places like brake calipers and derailleur hangers are reliable, where horizontal pressures are concentrated. The aluminum and vanadium alloying elements in Gr5 titanium make it possible for heat treatment methods that improve the microstructure for the cyclic loading situations that come up in mountain biking.

This is not possible with widely pure Grade 2 titanium. The way things are made has a big effect on how well they work. Instead of cut thread methods, high-end makers use rolled thread methods. When compared to machined threads, rolled threads make the material's grain structure line up with the thread shapes. This makes the threads over 30% more resistant to wear. This difference is very important for aircraft parts that are constantly being vibrated at high frequencies by the trail surfaces.

Corrosion Immunity and Surface Treatment Compatibility

Titanium makes a passive layer of titanium dioxide (TiO2) when it comes into contact with air. This protects it from galvanic corrosion caused by sweat salts, road chemicals, and marine environments. Because of this trait, steel screws in aluminum frames don't need to be maintained or welded to prevent rust. Coastal rental companies and racing bikes gain the most from this corrosion protection, which lowers costs over the life of the bike even though it costs more at first. Physical Vapor Deposition (PVD) layers can be used to change the look of the material by adding gold, rainbow, or black finishes without changing the size limits. PVD-coated titanium screws, unlike anodized aluminum or painted steel, keep their surface consistency even after being installed many times. This keeps the brand's look throughout the product's life.

Thermal Stability and Modulus Characteristics

Gr5 titanium keeps its shape up to 400°C, which is much higher than what is needed for hydraulic brake systems that are put under a lot of heat stress during downhill races. The lower elastic stiffness of the material (about 113 GPa compared to 210 GPa for steel) makes it more flexible, which is a good thing. When the torque is applied correctly, this stretchy behavior helps keep the thread engaged during vibration exposure.

This lowers the risk of threads coming loose when the right threadlockers or anti-seize chemicals are used during installation. International standards like DIN 912 (socket head cap), DIN 7991 (countersunk), and ISO 7380 (button head) are dimensionally compatible, which means they can be easily added to current component designs. This standardization makes it easier for distributors who work with a wide range of OEM clients to keep track of their supplies. It also makes it easier for retrofit uses to be made in the aftermarket.

Top-Rated GR5 Titanium Bicycle Bolts: Performance and Supplier Insights

To find the right suppliers, you need to know which companies regularly provide the material approval, precise measurements, and reliable supply chains that are needed for making professional-grade mountain bikes.

Leading Manufacturers and Certification Standards

Suppliers with a good reputation use strong quality management systems, such as AS9100 for methods that come from aircraft and ISO 9001 for general manufacturing excellence. Material test reports (MTRs) that show the chemical make-up using X-ray fluorescence (XRF) analysis are important for quality assurance processes because they allow for batch-level tracking. Tensile testing shows that the mechanical qualities meet the requirements of ASTM B348 Grade 5 and AMS 4928. This makes it clear which is real Gr5 titanium bicycle bolt and which is a lower-quality Grade 2 substitute.

Baoji Chuanglian New Metal Material Co., Ltd., which is based in China's "City of Titanium," is an example of a company that combines technical know-how with large-scale production. Their plant has been making titanium fasteners for more than ten years and has full CNC cutting capabilities. They also have strict quality control from checking the raw materials to inspecting the finished products.

Their goods are used in industries like aerospace, petrochemicals, and medicine, where consistent materials are essential. International customers have approved testing methods over long-term supply relationships. European and North American distributors are working together with certified Asian makers more and more to find the best mix between cost-effectiveness and quality assurance. They do this by using third-party inspection services and setting up vendor-managed inventory programs that make sure deliveries happen on time.

Real-World Performance Validation

Professional mountain bike teams and component makers say that switching from stainless steel screws to Gr5 titanium bicycle bolts makes a big difference in how well the bikes work. Enduro racing uses say that no fasteners have failed during full race seasons, even though they were exposed to high vibrations, changing temperatures, and dirt. When it rains, steel screws usually need to be replaced as part of regular maintenance.

This makes the rust resistance even more useful. Cross-country race teams that want to cut weight can reduce the weight of their bikes by about 100 to 150 grams by integrating titanium fasteners into frames, seat clamps, bottle cages, and derailleur mounting points. This improvement makes climbing more efficient and gives you a competitive edge without lowering the safety of structure ties.

Pricing Dynamics and Value Analysis

Gr5 titanium screws are usually three to five times more expensive than stainless steel versions. The exact price depends on the size of the bolt, the shape of the head, and the number of items ordered. When bought in bulk (500 or more pieces), M5×16mm socket head cap bolts usually cost between $1.80 and $3.50 each. However, special countersunk versions for disc brake wheels are more expensive. While custom threading, unique head geometries, and PVD finishing add to the cost, they help a brand stand out in a crowded market.

The total cost of ownership, not just the unit price, is what procurement pros need to look at. The extra cost of the initial investment is often worth it because there are fewer guarantee claims related to corrosion, less upkeep is needed, and the brand is better positioned in higher-end market groups. Long-term relationships with suppliers allow volume-based price optimization and ensure allocation during changes in the titanium supply chain that affect the whole industry.

How to Choose the Right GR5 Titanium Bicycle Bolts for Your Mountain Bike Products?

To make the best product performance and supply chain stability, strategic Gr5 titanium bicycle bolt selection needs to balance technical needs, application-specific needs, and an evaluation of the supplier's capabilities.

Technical Selection Criteria

Environmental exposure analysis helps with choosing the right materials. Titanium's resistance to rust is best used on bikes that will be used near water, in humid areas, or that will be washed a lot. Racing uses try to minimize weight as much as possible, which makes titanium appealing even though it costs more. Recreational mountain bikes aimed at price-conscious customers might only use titanium for important safety parts and steel for other, less important structure parts.

Different attachment points have very different torque needs. Stem faceplate bolts usually have a torque range of 4-6 Nm, which means they need to be precisely thread engaged and anti-seize applied to keep metal surfaces from galling. Disc brake rotor bolts need 6 to 8 Nm of thread-locking compounds, which use titanium's high friction coefficient to keep the bolts in place.

Titanium keeps carbon fiber parts from getting damaged by over-tightening in places like seat post clamps and bottle cage mounts. The orientation of the thread standard (metric or Unified Thread Standard, UTS) must match the requirements of the frame and the component. Asian and European makers mostly use metric sizes (M4, M5, M6, and M8), but some leftover parts from North America use UTS sizes. To keep things from not working together during assembly, the requirements for buying things should clearly state the thread size, engagement length, and head style.

Custom Versus Standard Configurations

Standard stock items are good for high-volume production settings because they are cost-effective and have shorter lead times. DIN-compliant measurements make sure that there are multiple sources of supply, which protects against the risks of being dependent on a single provider. Custom setups allow for unique designs that strengthen brand identity and make aftermarket replacement more difficult, but they need minimum order amounts that start at 1,000 pieces and require investments in tooling.

Application-specific tuning takes into account different placement situations. Fork crown bolts have longer shanks that can fit thick crown casts. Derailleur hook screws need exact shoulder measurements to keep alignment tolerances. Specific grip lengths are needed for suspension linkage bolts to keep them from locking and to control the amount of horizontal play. Working with providers who have their own engineering departments makes custom development go more quickly and protects intellectual property.

Supplier Evaluation Framework

Along with material approval and reasonable prices, when choosing a provider, you should also look at their production capacity, how well they communicate, and how mature their quality system is. Site audits or inspection reports from a third party make sure that the manufacturing skills fit the requirements that were given. Lead time consistency and inventory buffering techniques protect against production interruptions caused by changes in the supply of raw materials that are common in titanium markets.

The ability to provide technical help is what sets strategic partners apart from commodity providers. Working together as engineers during the creation of a product keeps design changes from being too expensive. Application-specific testing methods make sure that performance is valid under typical loading situations. Support for defect analysis and execution of corrective actions show a dedication to ongoing growth that is in line with long-term relationship goals.

Installation and Maintenance Best Practices for GR5 Titanium Bicycle Bolts

The best ways to install and take care of Gr5 titanium bicycle bolts requires adherence to specific rules that take into account the material's properties and stop typical failure modes.

Torque Specifications and Installation Techniques

No matter what kind of fastener material is used, the torque numbers given by the component makers are still the official ones. Titanium's qualities don't allow for force that is different from what is specified. To make sure that all parts have the same preload, torque wrenches that are calibrated to within ±4% accuracy are used. This stops both under-tightening problems (components slipping, vibration loosening) and over-tightening problems (thread stripping of softer aluminum surfaces, fastener yielding).

Titanium and aluminum have a high friction coefficient, which makes them prone to galling. Galling is a cold-welding process in which surface irregularities stick together under pressure and relative motion. Putting anti-seize substance on threads and bearing surfaces turns out to be necessary, not choice. Copper-based or ceramic anti-seize formulas stop galling and make torque measures more accurate by lowering the variation in friction. Without anti-seize treatment, readings of installation torque become inaccurate, and taking the part or fastener off may damage the threads on both the part or fastener.

Thread Engagement and Compatibility Considerations

When putting together parts, you need to check the measurements of both metric thread systems (ISO standard) and unified thread standard measures. Thread size differences, like M6×1.0mm vs. M6×0.75mm, look the same at first glance, but they can lead to cross-threading problems. Instead of thinking that dimensions will work, procurement requirements should clearly list thread designations that match technical drawings of the parts. To get the full strength of the fastener, the minimum thread contact depth should be 1.5 times the nominal diameter for aluminum parts and 1.0 times the nominal diameter for steel surfaces. Not enough contact moves the load to a smaller number of thread roots, which speeds up wear and raises the chance of failure under repeated loading.

Routine Inspection and Lifecycle Management

Regular inspections that are timed to match the amount of riding and the surroundings help find problems early on, before they become too big to fix. A visual inspection can show harm to the surface, rust on nearby parts that points to galvanic issues, or weakening that can be seen by rotational movement. During regular maintenance, checking the torque proves that the preload is still there. This is especially important for cockpit parts and brake system mounts, where safety is at stake. Replacement factors should include limits on how many times a bolt can be used.

The rust that happens to titanium doesn't break it down, but repeated loading causes damage that can't be seen. Important safety bolts need to be replaced at set service times, like once a year for professional racing or after a crash that creates shock loads. Damage to the threads from bad fitting or cross-threading means that the item needs to be replaced right away instead of being tried to be fixed.

Procuring GR5 Titanium Bicycle Bolts: Where and How to Buy?

Setting up reliable methods of procurement for Gr5 titanium bicycle bolts strikes a mix between lowering costs, making sure quality, making sure deliveries are consistent, and giving people access to technology help that is needed to keep production going and keep inventory under control.

Direct Manufacturer Relationships

Working directly with makers like Baoji Chuanglian New Metal Material Co., Ltd. can help you save money, make changes, and work together on technical issues. Because they are in Baoji City, they can access combined titanium supply chains that go from making sponges to precise cutting, which cuts down on markups in the middle. Direct connections make it possible to improve specifications while a product is being made, guard a proprietary design, and set priorities when the market as a whole is limited in its capacity.

The infrastructure for communication that supports foreign relationships has changed a lot. Real-time chat apps, videoconferencing for expert talks, and cloud-based quality documentation tools help people in different places and time zones work together. Companies that make things for the medical and aircraft industries around the world hire English-speaking technicians who know how to deal with international trade rules, customs paperwork, and interpreting quality standards across different regulatory areas.

Distributor Networks and Platform Procurement

Regional distributors are useful because they can place your goods closer to where you need it, cut down on shipping times, and lower your minimum order numbers so you can buy things in smaller amounts. They handle the complicated process of clearing customs and offer a wide range of products made by multiple manufacturers, which makes managing vendors easier. Premium wholesalers follow quality control procedures that include inspecting arriving goods and keeping track of licensing paperwork.

There are now B2B buying tools that make it easier to find suppliers, compare specifications, and gather quotes. These channels are good for finding suppliers and making one-time purchases, but they might not offer as much expert help or customization options as working directly with manufacturers. When using marketplace platforms, it's still important to do your research on source proof, product authenticity, and ways to get your money back.

Negotiation Strategies and Partnership Development

Long-term deals that guarantee a certain amount of output allow for better pricing and ensure a steady supply. Blanket purchase orders with planned releases keep inventory costs in check while also speeding up the order handling process. Negotiating payment terms, like net 60 or 90 days versus reserve requirements, can have an effect on managing working capital. Longer terms are supported by established relationships that show growing trust.

Quality agreements that spell out acceptance criteria, inspection methods, and ways to handle nonconformances keep disagreements from happening and set goals for performance. Setting guidelines for material approval, dimensional tolerances, and surface finish makes it possible to evaluate things in an objective way. Collaborative corrective action methods that deal with differences in quality make relationships stronger instead of making them more hostile. Coordinating logistics, such as the type of packaging (protective sleeves keep threads from getting damaged, and the number of items per container makes inventory management easier), the shipping method (air freight for urgent restocking vs. ocean transport for planned purchases), and the paperwork needed (commercial invoices, certificates of origin, material test reports), makes sure that customs clearance and receiving go smoothly.

Conclusion

Mountain bike companies that want to ensure performance quality, longevity, and premium brand placement should invest in Gr5 titanium bicycle bolts. Their high strength-to-weight ratio, resistance to corrosion, and resistance to stress make them perfect for the tough working conditions that professional and recreational mountain bike uses require. To be successful at procurement, you need to understand technical specs, look at a supplier's skills beyond price, and set up installation procedures that get the most out of the material while avoiding failure modes that are specific to the application.

Building connections with qualified manufacturers like Chuanglian that are backed by strict quality systems and technical know-how makes the supply chain more stable, which is important for keeping production quality high and meeting customer standards. The higher initial cost is well worth it over the long term because it lowers the need for upkeep, improves the product's image, and sets it apart from competitors in markets that are becoming more picky about component quality and performance authenticity.

FAQ

Q1: Can GR5 titanium bolts completely replace steel fasteners in mountain bike assemblies?

A: In general, yes for structural metric uses, such as the M5, M6, and M8 sizes that are popular in stems, brake calipers, and mounting parts. Some exceptions are unique suspension pivot axles that are meant to be structural members, shear pins that are made to protect against failure modes, and special Gr5 titanium bicycle bolts that need to be inspected using magnetic protocols. When you talk to component makers, they can confirm compatibility for use-specific situations where engineering analysis set the original fastener specs.

Q2: Do titanium fasteners require different torque specifications than steel equivalents?

A: The torque numbers that component makers post are always correct, no matter what kind of material the fastener is made of. Titanium is strong enough to hold the same clamping forces at certain tension levels. However, using anti-seize compounds as required changes the friction coefficients, which in turn changes the torque-tension relationships. Without anti-seize treatment, titanium's high surface friction gives falsely high torque readings while not getting enough preload, which raises the risk of galling at the same time. The right way to attach something—with clean threads, the right anti-seize compound, and a calibrated torque wrench—ensures consistent results that match what the engineers wanted.

Q3: How can procurement teams verify authentic Grade 5 titanium versus inferior substitutes?

A: Certification of materials that includes XRF chemistry analysis and mechanical property tests from approved labs is the only way to be sure of something for sure. The first thing that can be used to judge is how it looks. Gr5 titanium exhibits a darker greenish sheen than commercially pure titanium, which looks more silver, and it is harder to scratch. Reliable sources give test reports on materials that can be linked to particular production batches. This lets quality assurance check that the reports are correct. Getting to know certified manufacturers with open quality systems who are ready to let a third party check their products takes away any worries about authenticity and builds trust in the supply chain over time.

Partner with Chuanglian for Premium Titanium Fastener Solutions

By replacing your old mountain bike parts with high-quality Gr5 titanium bicycle bolts, you can improve their performance and build your brand's image for quality. Chuanglian has been specialized in titanium cutting for more than ten years and has full CNC production capabilities as well as strict quality control systems that make sure every screw meets the highest standards. We are in Baoji City, which is the world's center for titanium production. As a result, we can offer you integrated supply chain benefits, cheap market prices, and expert teamwork to help you reach your product development goals.

Our engineering team is available to help you quickly and effectively during the design development, prototype validation, and volume production phases. This is true whether you need standard DIN configurations for instant production needs or custom-engineered solutions that set your product line apart. Our quality assurance procedures are used in industries like aerospace, medicine, and petrochemicals where consistent materials are essential. Long-term supply relationships with foreign customers show our abilities.

Get in touch with our expert sales team right away at info@cltifastener.com or djy6580@aliyun.com to talk about your specific needs, ask for material certifications, and get detailed quotes that are based on your order number and delivery plan. Let's work together to improve your competitive situation by giving you better fastening options.
