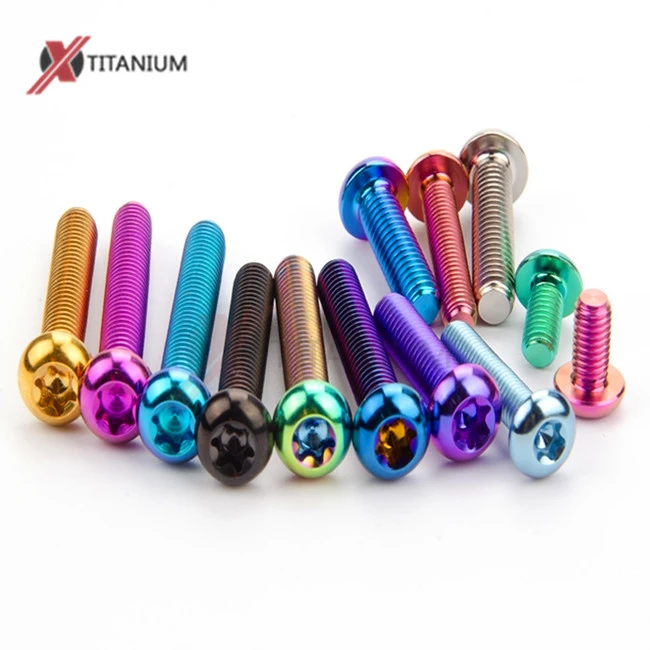

ISO7380 Hexagon Socket Button Torx Head Titanium Bolts M5

ISO7380 Hexagon Socket Button Torx Head Titanium Bolts M5 – Precision Fastening Solution for Aerospace and High-Performance Engineering

Baoji Chuanglian New Metal Material Co., Ltd. manufactures ISO7380 Hexagon Socket Button Torx Head Titanium Bolts M5 using Ti-6Al-4V alloy with a tensile strength of 950 MPa and a density of just 4.43 g/cm³. These bolts comply with ISO 7380 dimensional standards, featuring a 9.5mm button head diameter, 2.8mm head height, and M5x0.8 threading available in lengths from 8mm to 30mm. Weighing approximately 1.8g per M5x16mm bolt, they deliver 45% weight reduction compared to steel alternatives while maintaining exceptional structural integrity. With over ten years of titanium machining expertise, the company operates a full suite of CNC equipment and enforces rigorous quality control from raw material selection through final inspection, ensuring every batch meets international aerospace and industrial standards.

Technical Specifications and Material Performance

The ISO7380 Hexagon Socket Button Torx Head Titanium Bolts M5 are engineered from Ti-6Al-4V (Grade 5) titanium alloy, conforming to ASTM B348 standards. This alloy composition—90% titanium, 6% aluminum, and 4% vanadium—provides mechanical properties comparable to Grade 10.9 steel while offering superior corrosion resistance across acidic, alkaline, and chloride-rich environments.

The button head profile reduces aerodynamic drag and eliminates sharp edges, making these fasteners ideal for external assemblies. The Torx T25 drive enhances torque transmission while preventing cam-out during high-torque installation scenarios.

Why Choose Torx Drive Over Traditional Hex Socket

Traditional hex socket fasteners are prone to tool slippage under high torque, especially in repetitive assembly operations. The six-lobe Torx design distributes force more evenly across the drive interface, reducing wear on both the tool and the fastener head.

Your technicians will experience fewer damaged bolt heads during maintenance cycles. The Torx T25 geometry allows higher torque application without stripping, particularly critical when working with titanium's lower modulus of elasticity. This translates to faster assembly times and reduced tool replacement costs in production environments.

Additionally, the low-profile button head design ensures a smooth, snag-free surface. This is essential for applications where fabric, cables, or moving parts contact the fastener, preventing accidental snagging or injury in operational settings.

Applications Across Critical Industries

ISO7380 Hexagon Socket Button Torx Head Titanium Bolts M5 serve demanding applications where weight, strength, and corrosion resistance are non-negotiable. In aerospace and UAV manufacturing, these bolts fasten exterior panels, motor mounts, and sensor housings where every gram impacts flight duration and payload capacity.

Performance motorsport teams rely on these fasteners for brake caliper assemblies, chassis components, and fairings. The combination of high vibration resistance and negligible corrosion under exposure to road salts or hydraulic fluids ensures long-term reliability in extreme racing conditions.

Marine and subsea engineering operations benefit from titanium's immunity to saltwater corrosion. Unlike stainless steel, which suffers from pitting in low-oxygen saline environments, Ti-6Al-4V maintains structural integrity indefinitely. Yacht rigging, underwater sensor housings, and offshore drilling equipment utilize these bolts for critical joints requiring permanent corrosion protection.

Medical device manufacturers and robotics engineers specify these fasteners for external assemblies where biocompatibility and smooth surfaces prevent interference with sterile drapes, cables, or moving mechanisms in cleanroom environments.

Installation Guidelines and Anti-Galling Measures

Titanium fasteners require specialized handling due to their susceptibility to galling—a form of cold welding caused by the thin oxide layer wiping off under pressure. Always apply molybdenum disulfide (MoS2) anti-seize paste to threads before installation.

Your torque specifications should be reduced to 70-80% of standard steel bolt values. This accounts for titanium's lower modulus of elasticity and prevents thread stripping or head shearing. Use a calibrated torque wrench and refer to dry versus lubricated torque charts for accurate tightening.

For assemblies requiring frequent disassembly, consider requesting DLC (Diamond-Like Carbon) or anodized coatings. These surface treatments reduce the friction coefficient significantly, enabling multiple installation cycles without degradation.

Production workshop

​​

​

Production process

Our Services

Custom solutions, fast delivery, competitive pricing, and excellent service.

​​

01

Titanium Product Manufacturing

Baoji Chuanglian New Metal Material Co., Ltd specializes in manufacturing high-quality titanium and rare metal products. With over ten years of experience, we produce titanium rods, plates, tubes, fasteners, and customized components. Our products meet strict national and international standards, ensuring durability and reliability. We cater to industries such as aerospace, medical, and petrochemical, providing high-performance titanium solutions tailored to customer needs.

02

Precision Titanium Machining

Equipped with advanced CNC machines, we offer precision machining services, including cutting, milling, drilling, and turning. Our experienced technicians ensure high accuracy and quality in every component. By continuously upgrading our technology, we meet complex machining demands for various industries. Whether you need standard titanium parts or custom-designed solutions, we provide efficient and reliable services.

​​

​​

03

Strict Quality Control

We maintain a rigorous quality control system from raw material selection to final inspection. Every product undergoes thorough testing to ensure superior performance and longevity. Our titanium products have been trusted by global companies for years, earning a reputation for reliability. With strict adherence to quality standards, we guarantee high-quality products with on-time delivery.

04

Global Titanium Solutions

Serving industries worldwide, we provide professional titanium solutions, from production to after-sales support. Our products are widely used in aerospace, medical, marine, and industrial fields. We focus on customer satisfaction, offering customized services and technical assistance. With a commitment to innovation and quality, we strive to build long-term partnerships and deliver high-value titanium products globally.

​​

Be used in a wide range of industries.



​​

Automotive Industry

​​

Electronics Industry

​​

Aerospace Industry

​​

Medical Industry

​​

Cars and Racing

​​

Consumer Electronics

Quality Assurance and Manufacturing Standards

Baoji Chuanglian maintains ISO 9001 certification and implements comprehensive inspection protocols at every production stage. Raw titanium alloy undergoes spectrographic analysis to verify chemical composition before machining begins.

CNC turning and threading operations ensure dimensional accuracy within ±0.02mm tolerances. Button head geometry and Torx drive cavities are inspected using optical comparators to guarantee proper tool engagement. Final batches undergo tensile testing, thread gauge verification, and visual inspection to eliminate surface defects.

This multi-stage quality control system delivers consistent performance across production runs. Your supply chain benefits from predictable lead times—typically 15-20 days for stock items—and reliable dimensional conformity that eliminates assembly line rejections.

Packaging and Logistics

Each order of ISO7380 Hexagon Socket Button Torx Head Titanium Bolts M5 ships in polyethylene bags containing 100-500 pieces, packed within reinforced export cartons. This packaging method prevents moisture exposure during transit and simplifies inventory management in your receiving department.

FOB terms allow flexibility in freight arrangement based on your destination and volume requirements. The company's logistics team coordinates with major carriers to ensure timely delivery and provides complete customs documentation for international shipments.

Frequently Asked Questions

Q1: Can these titanium bolts replace Grade 12.9 steel bolts directly?

Grade 5 titanium offers tensile strength around 950 MPa, comparable to Grade 10.9 steel but below Grade 12.9 (1220 MPa). Direct replacement requires engineering analysis to verify adequate safety factors for your specific load conditions. Increasing bolt diameter may compensate for the strength difference while maintaining weight advantages.

Q2: Will these bolts cause galvanic corrosion with carbon fiber composites?

Titanium creates minimal galvanic potential difference with carbon fiber, making it the safest metal choice for composite assemblies. Unlike aluminum, which corrodes rapidly when coupled with carbon, titanium fasteners are industry standard for aircraft composite structures and high-end sporting equipment.

Q3: Why use Torx drive instead of hex socket?

Torx geometry distributes torque across six lobes rather than six corners, reducing stress concentrations that cause cam-out and tool wear. This allows higher torque application and extends tool life in high-volume production environments.

Q4: What surface treatments are available to prevent galling?

Standard options include passivation to enhance the natural oxide layer. For high-cycle assemblies, DLC coating or Type II/III anodizing dramatically reduce friction and prevent cold welding during repeated installations.

Q5: Are rolled or cut threads used in these bolts?

High-quality aerospace-grade fasteners use rolled threads, which follow the grain structure of the titanium rather than cutting through it. This process increases fatigue strength by approximately 30% compared to cut threads and improves thread shear resistance.

Contact Us for Custom Solutions

Whether you need standard M5 lengths or custom dimensions for specialized assemblies, our engineering team provides technical support throughout your procurement process. Request samples, detailed torque specifications, or volume quotations by reaching us at info@cltifastener.com today.
