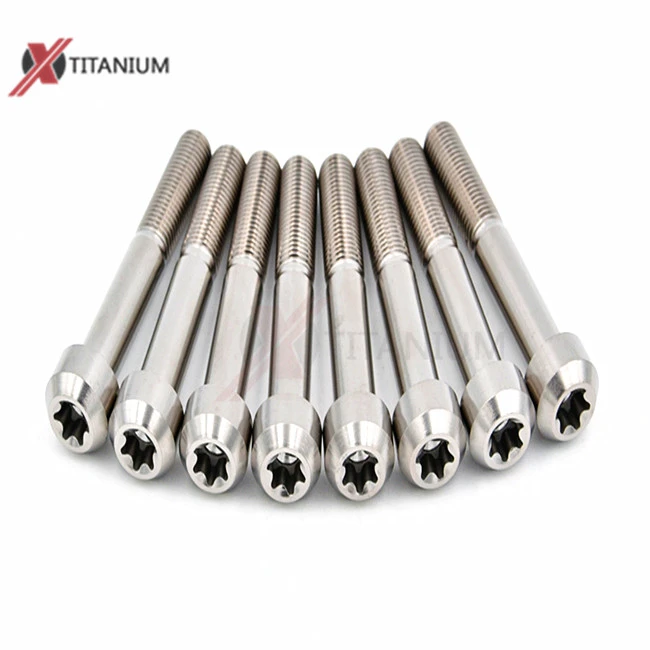

Titanium Cylindrical Head Torx Bolts – Precision Engineered Fasteners for High-Performance Applications

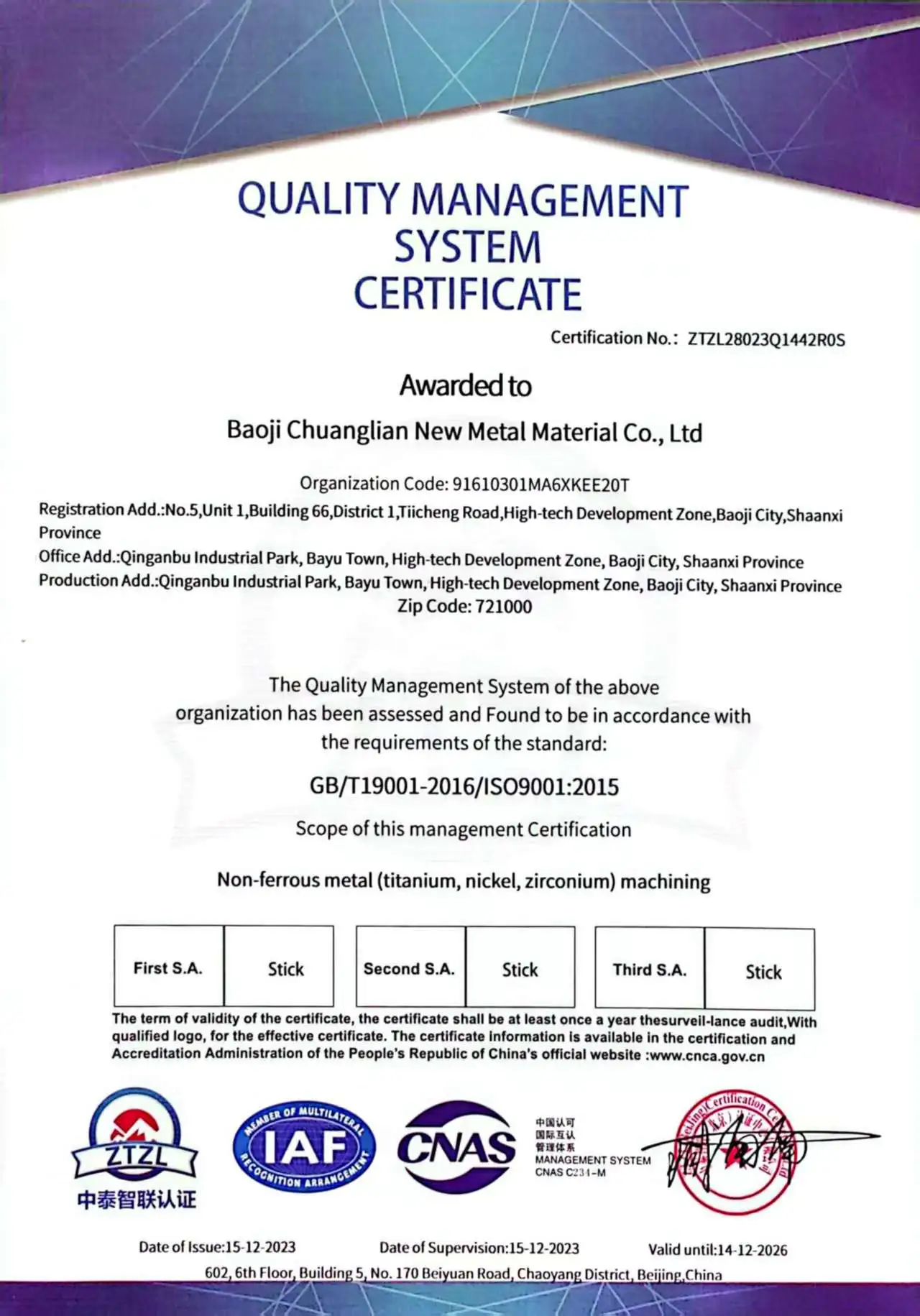

Baoji Chuanglian New Metal Material Co., Ltd. manufactures Titanium Cylindrical Head Torx Bolts using Grade 5 titanium alloy (Ti-6Al-4V), delivering tensile strength between 950-1100 MPa—equivalent to Class 10.9 steel fasteners—while reducing component weight by 40%. Available in M5×0.8, M6×1.0, and M8×1.25 thread specifications with lengths ranging from 10mm to 80mm, these bolts feature T25 and T30 Torx drives for superior torque transmission. With over ten years of CNC machining expertise and ISO 9001 certification, every batch undergoes full material traceability and dimensional inspection, ensuring consistent quality for aerospace, marine, and motorsport engineering sectors.

Superior Material Composition and Mechanical Performance

Grade 5 titanium alloy composition follows ASTM B348 standards, containing 90% titanium, 6% aluminum, and 4% vanadium. This specific alloy structure provides a density of just 4.43 g/cm³ compared to 7.8 g/cm³ for conventional steel fasteners.

The mechanical properties deliver exceptional reliability. Yield strength reaches approximately 828 MPa, while ultimate tensile strength spans 950-1100 MPa. This performance matches high-grade steel bolts but at significantly reduced mass, making them ideal for weight-sensitive assemblies.

Thermal stability extends from cryogenic temperatures up to 400°C without compromising structural integrity. Your components maintain clamping force and dimensional accuracy across extreme temperature cycles where aluminum alternatives would fail.

Precision Torx Drive Engineering Advantages

The six-point star Torx configuration (T25 for M5-M6, T30 for M8) maximizes contact area between driver and fastener. This geometry virtually eliminates cam-out and radial forces that strip conventional hex drives during high-torque applications.

Robotic assembly systems benefit significantly from Torx engagement reliability. Automated tools achieve consistent seating without tool slippage, reducing production line stoppages by up to 35% compared to hex socket designs.

For maintenance operations, the Torx profile allows precise torque application in tight access areas. Mechanics can apply specified clamping forces confidently without damaging fastener heads, extending service life across repeated disassembly cycles.

Technical Specifications and Dimensions

Corrosion Resistance for Harsh Environments

Titanium naturally forms a stable oxide film that provides permanent protection against corrosive elements. Your fasteners remain immune to saltwater, chlorides, and oxidizing acids indefinitely—outperforming 316L stainless steel in aggressive marine conditions.

Galvanic corrosion resistance proves critical in mixed-material assemblies. Unlike steel fasteners that corrode when paired with aluminum or carbon fiber, titanium maintains electrochemical neutrality, preventing accelerated material degradation at connection points.

The oxide layer self-heals when scratched, ensuring continuous protection throughout the fastener's service life. This characteristic eliminates the need for protective coatings that can chip or wear away during installation and operation.

Critical Applications Across Industries

Aerospace and UAV Systems: Drone manufacturers specify these bolts for motor mounts and airframe assemblies where every gram impacts flight duration. The non-magnetic properties prevent interference with navigational magnetometers and electronic compass systems. The cylindrical head fits flush into aerodynamic counterbores, maintaining laminar airflow over critical surfaces.

Marine and Subsea Engineering: Deep-ROV external housings and yacht rigging systems demand fasteners that resist pitting and crevice corrosion in low-oxygen saltwater environments. Robotic assembly tools engage Torx drives more reliably than hex alternatives, reducing underwater maintenance complexity.

Motorsport and Performance Cycling: Unsprung weight reduction in brake caliper mounts, handlebar stems, and rotor assemblies directly improves handling response. The cylindrical profile eliminates sharp edges that could cause rider injury during crashes while maintaining structural integrity under vibration and shock loads.

Production workshop

​​

​

Production process

Our Services

Custom solutions, fast delivery, competitive pricing, and excellent service.

​​

01

Titanium Product Manufacturing

Baoji Chuanglian New Metal Material Co., Ltd specializes in manufacturing high-quality titanium and rare metal products. With over ten years of experience, we produce titanium rods, plates, tubes, fasteners, and customized components. Our products meet strict national and international standards, ensuring durability and reliability. We cater to industries such as aerospace, medical, and petrochemical, providing high-performance titanium solutions tailored to customer needs.

02

Precision Titanium Machining

Equipped with advanced CNC machines, we offer precision machining services, including cutting, milling, drilling, and turning. Our experienced technicians ensure high accuracy and quality in every component. By continuously upgrading our technology, we meet complex machining demands for various industries. Whether you need standard titanium parts or custom-designed solutions, we provide efficient and reliable services.

​​

​​

03

Strict Quality Control

We maintain a rigorous quality control system from raw material selection to final inspection. Every product undergoes thorough testing to ensure superior performance and longevity. Our titanium products have been trusted by global companies for years, earning a reputation for reliability. With strict adherence to quality standards, we guarantee high-quality products with on-time delivery.

04

Global Titanium Solutions

Serving industries worldwide, we provide professional titanium solutions, from production to after-sales support. Our products are widely used in aerospace, medical, marine, and industrial fields. We focus on customer satisfaction, offering customized services and technical assistance. With a commitment to innovation and quality, we strive to build long-term partnerships and deliver high-value titanium products globally.

​​

Be used in a wide range of industries.



​​

Automotive Industry

​​

Electronics Industry

​​

Aerospace Industry

​​

Medical Industry

​​

Cars and Racing

​​

Consumer Electronics

Quality Control and Manufacturing Standards

Every production batch undergoes multi-stage inspection protocols. Raw material verification confirms chemical composition through spectroscopic analysis before machining begins. CNC operations maintain tolerances within ISO 14579 dimensional requirements for thread fit and head geometry.

Tensile testing samples from each lot validate mechanical properties meet the 950-1100 MPa specification range. Surface finish inspection ensures polished variants achieve Ra values below 0.8μm, while anodized options demonstrate uniform coating thickness and adhesion.

Test certificates accompany shipments, providing full material traceability documentation. This quality assurance framework has earned recognition from aerospace OEMs and marine engineering firms worldwide who demand verifiable compliance for safety-critical applications.

Installation Guidelines and Best Practices

Thread lubrication prevents galling during installation. Apply copper paste, ceramic anti-seize, or titanium-specific prep compound to threads and under bolt heads before torquing. This step is mandatory when fastening into aluminum, stainless steel, or carbon fiber components.

Use calibrated torque wrenches to apply manufacturer-specified clamping forces. Titanium's lower modulus of elasticity compared to steel requires precise torque control to prevent over-stretching or premature fatigue failure.

Avoid mixing dissimilar metals without proper isolation. While titanium resists galvanic corrosion, pairing with untreated steel in wet environments can accelerate steel degradation. Use appropriate washers or barriers when joining incompatible materials.

Packaging and Global Logistics

Fasteners arrive in labeled plastic storage boxes organized by size specification, containing 50-100 pieces per container. This packaging protects threads during transit and simplifies inventory management for production facilities.

Lead times range from 15-25 days depending on order volume and customization requirements. Air freight serves urgent prototype projects, while consolidated sea shipments optimize costs for production runs. Export documentation includes commercial invoices, packing lists, and material certificates meeting international customs requirements.

Frequently Asked Questions

Q: Can I use Grade 2 pure titanium for structural applications?

A: No. Grade 2 lacks sufficient tensile strength for safety-critical clamping forces. Grade 5 Ti-6Al-4V is the industry-mandated material for all structural fastening applications requiring reliable joint integrity.

Q: Do torque specifications change when switching from steel to titanium bolts?

A: Follow your equipment manufacturer's torque values, but use a calibrated torque wrench without exception. Titanium's elasticity characteristics make over-torquing particularly damaging, potentially causing thread failure or head separation.

Q: How do I identify surface contamination versus actual titanium corrosion?

A: Titanium does not rust. Any discoloration resembling rust indicates iron contamination from tools or handling equipment. Clean with non-abrasive methods; the titanium substrate beneath remains fully protected by its oxide layer.

Q: Are rolled threads stronger than machined threads for vibration resistance?

A: Yes. Thread rolling preserves material grain flow, increasing fatigue resistance by approximately 30% compared to cut threads. This advantage proves critical in cyclic loading environments like suspension components and rotating assemblies.

Q: What surface finish works best for aesthetic applications?

A: Polished finishes deliver mirror-like appearance for visible installations, while anodized options provide color customization and enhanced surface hardness. Both maintain full corrosion resistance; selection depends on your visual requirements and handling environment.

Contact Us for Custom Solutions

Our engineering team assists with size selection, material specifications, and custom modifications for your unique applications. Reach us directly at info@cltifastener.com to discuss technical requirements, request samples, or place orders for Titanium Cylindrical Head Torx Bolts that meet your exact performance standards.
