Benefits of using grade 5 titanium fairing bolts on motorcycles

When riders and procurement engineers ask what separates a premium fastener from an ordinary one, the answer often comes down to material science. Gr5 titanium fairing bolts for motorcycle applications — manufactured from Ti-6Al-4V alloy — deliver a rare combination of tensile strength reaching 1,200 MPa, a density of just 4.43 g/cm³, and passive corrosion immunity that outlasts zinc-plated steel by years. Whether you manage supply chains for OEM manufacturers or source aftermarket upgrades for high-performance builds, understanding why Grade 5 titanium outperforms conventional fasteners is essential before your next procurement decision.

Understanding Grade 5 Titanium Fairing Bolts for Motorcycles

What Ti-6Al-4V Actually Means for Fastener Performance?

Ti-6Al-4V is an alpha-beta titanium metal that is mostly made up of titanium (90%), aluminum (6%), and vanadium (4%). Because of its makeup, it performs better than widely pure Grade 2 titanium, with a stress strength of about 880 MPa compared to 275 MPa for Grade 2. These bolts are CNC-machined with rolled threads instead of cut threads. This keeps the grain flow throughout the fastener body, which directly improves fatigue resistance under cyclic vibration, which is something that always happens on motorcycles.

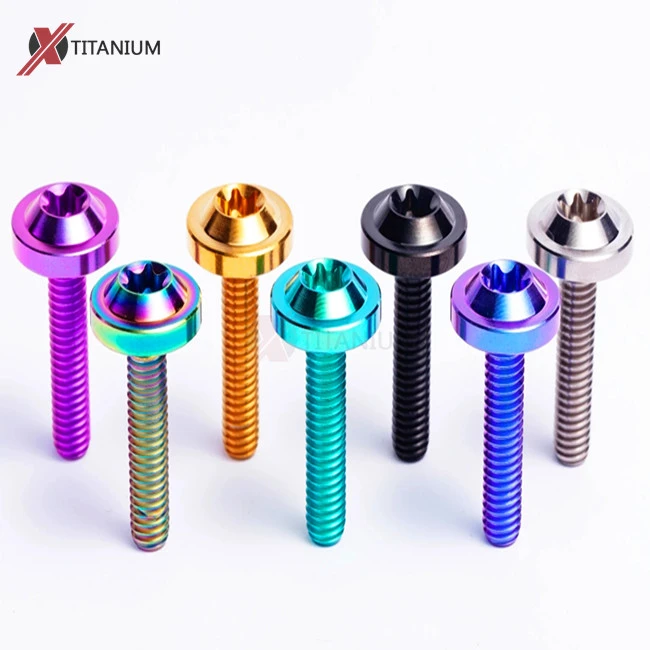

There are metric and UNC thread types in fairing bolt kits that match OEM mounting systems from Honda, Yamaha, Kawasaki, and Ducati, among other big brands. Sizes run from M4 to M12. Polishing, anodizing, and nitriding are some of the surface treatments that can be done. The colors that can be used are titanium natural, gold, blue, green, purple, black, and rainbow. Because each specification can be changed to fit the needs of the project, these bolts can really be used on both OEM production lines and aftermarket customization shops.

Core Benefits of Grade 5 Titanium Fairing Bolts

Ti-6Al-4V shield bolts are good because they reduce weight, keep the structure strong, and last a long time in harsh environments.

In terms of technology, these nuts are a good update because of the following:

• Exceptional Strength-to-Weight Ratio for Gr5 titanium fairing bolts for motorcycle: At roughly 4.43 g/cm³, Grade 5 titanium is approximately 45% lighter than steel (7.8 g/cm³) while maintaining tensile strength of 1,200 MPa. Replacing a full fairing bolt set on a sportbike can shave meaningful grams from the upper chassis structure, marginally lowering the center of gravity — a factor that professional racing teams document in mass optimization logs.

• Corrosion and Oxidation Immunity: A self-regenerating titanium oxide film forms naturally on the bolt surface, rendering it impervious to road salts, mild acids, and saltwater spray. Steel OEM bolts on coastal-ridden motorcycles often seize within 18 months of exposure; Ti-6Al-4V bolts remain serviceable after years in identical environments.
• Fatigue Resistance Under Vibration: Rolled thread production conforms to DIN 912 and ISO 7380 standards, which preserve the metallurgical grain structure that resists crack propagation. Engine and road vibration generate continuous cyclic stress on fairing panels; Grade 5 titanium's fatigue threshold supports consistent clamping force across extended service intervals.
• Temperature Stability: These bolts maintain structural integrity up to 500°C (932°F), well above any thermal load a motorcycle fairing assembly would realistically encounter, even near exhaust-adjacent panels.
• Non-Magnetic Properties: Titanium's non-magnetic nature makes these fasteners compatible with sensitive onboard electronics, particularly relevant in modern motorcycles equipped with traction control modules and ABS sensors positioned near fairing mounts.

"Extremely High Strength-to-Weight Ratio": Titanium Grade 5 is about 45% lighter than steel (7.8 g/cm³) and has a tensile strength of 1,200 MPa. It weighs about 4.43 g/cm³. When you replace a sportbike's full fairing bolt set, you can cut a few grams off the upper frame structure. This lowers the center of gravity by a small amount, which is something that professional race teams write down in logs for mass optimization.

Comparing Grade 5 Titanium vs. Alternative Fasteners

People who make decisions about purchases often compare Grade 5 titanium to Grade 2 titanium and stainless steel A2/A4. It's not just about price per unit; it's also about total cost of ownership and how well the products work across service cycles.

Stainless steel A4 nuts are easier to find, don't rust, and cost less per unit, but they are very dense (about 7.9 g/cm³), so they don't save any weight compared to Gr5 titanium fairing bolts for motorcycle. Even though Grade 2 titanium is lighter than stainless steel, its yield strength of about 275 MPa means it can't be used for fairings that will be subject to a lot of vibration and where clamping integrity is important. Even though aluminum 7075 bolts are lighter, they can head shear when torqued to the right level and can cold-weld to mounting clips made of different metals.

Grade 5 titanium is in a unique position because it is as strong as or stronger than Grade 8.8 steel bolts, weighs 45% less, and doesn't need any surface coatings to resist corrosion. For B2B buyers who sell to speed motorcycle makers or aftermarket distributors, this description means fewer replacements in the field, less guarantee risk, and a product that customers specifically ask for.

Procurement Insights for Grade 5 Titanium Fairing Bolts

Verifying Supplier Credibility and Material Authenticity

Verification of chemical makeup is a must. Reliable providers use spectrometer analysis to make sure that the Ti-6Al-4V meets ASTM B348 standards. This makes sure that no Grade 2 titanium is used instead. Tolerance class 6g Go/No-Go gages should be used to check the thread's accuracy. This will keep the motorcycle's mounting clips from getting thread damage during installation. For sampled batches, procurement teams should ask for mill certificates, dimensional inspection reports, and tensile test data. Before approving a new fastener source, engineering and quality departments need to see proof that the fastener comes from a supplier that follows the ISO 9001 or AS9100 quality systems.

Bulk Purchasing and Custom Kit Configuration

When you buy a lot of M5 and M6 Gr5 titanium fairing bolts for motorcycle fairing bolts, the unit costs usually go down enough that Grade 5 titanium is priced similarly to stainless steel when you consider how often the stainless steel needs to be replaced. Custom kit configurations with matched washers, different finish options, and brand-specific thread lengths make installation easier in OEM factories and motorcycle dealership service departments.

Practical Applications and Case Studies for Motorcycle Industry B2B Clients

Teams fighting in WSBK superbike races have shown that changing whole frame bolt sets to Ti-6Al-4V reduces the bikes' weight in a way that can be measured. While the weight saves are small for each bolt, they add up over dozens of fasteners spread out across the upper frame. This is where unsprung and high-center-of-gravity mass has a direct effect on how the car handles. Coastal adventure tour companies who are in charge of teams of bikes that are exposed to marine-grade salt say that OEM steel bolts need to be replaced or forced out after just two riding seasons. By switching to Grade 5 titanium fasteners, you can avoid the damage that forced bolt extraction often does to panels and the cost of work that goes along with it.

As a closing touch, high-end customizing shops choose gold, black, and burned blue Grade 5 titanium bolts that have been PVD-coated and anodized. Unlike painted or plated steel, these surface treatments don't flake, and the alloy underneath keeps its structural properties even if the surface gets worn down. In all of these situations, the best way to install something is to use copper or ceramic anti-seize powder on the threads before torqueing them. When clamping loads are very high, grade 5 titanium can gall against different metals. Anti-seize compound stops cold welding and makes sure that the part can be taken off cleanly during future maintenance.

Conclusion

If you work in sourcing or engineering and make speed motorcycles, sell aftermarket parts, or maintain a fleet, Gr5 titanium fairing bolts for motorcycle are a technically sound investment. The 1,200 MPa tensile strength, 45% lighter weight than steel, and passive corrosion resistance of the Ti-6Al-4V alloy make it a good choice for motorcycle service environments where fasteners often fail. If you base your choices on facts about the material instead of just the unit price, Grade 5 titanium always gives you lower lifecycle costs and more reliable performance.

FAQ

Q1: Can Grade 5 titanium fairing bolts be torqued to OEM specifications?

A: Yes, Ti-6Al-4V is about as strong as Grade 8.8 steel. The force that should be used for M5/M6 shield bolts is usually between 4 and 6 Nm. Always use a torque wrench that has been calibrated, and don't tighten too much against the plastic fairing panels.

Q2: How does corrosion resistance compare to stainless steel A4?

A: The natural oxide coat on grade 5 titanium makes it more resistant to corrosion, especially in chloride-rich places like seaside roads. Stainless steel A4 works well in most situations, but it can rust in cracks if it is exposed to salt for a long time.

Q3: What thread types and sizes are standard for motorcycle fairings?

A: The most common thread sizes on Japanese and European OEM models are M5 and M6. The M4 and M8 show up in certain mounting spots. For use in the North American market, UNC thread models are offered.

Q4: Will anodized colors fade over time?

A: PVD coatings last a long time and don't fade when exposed to UV light. Anodized colors may become dull over time if they are exposed to strong UV light for a long time, but they won't flake or peel.

Q5: How do I confirm I am receiving genuine Ti-6Al-4V and not a substitute?

A: You should ask for mill certificates and spectrometer makeup records. A magnet test is a quick way to check the field. Titanium is not magnetic, so any magnetic response means steel was used or contaminated.
