Custom Titanium Parts: From Prototype to Production

Custom titanium parts manufacturing has revolutionized precision engineering across multiple industries, delivering unmatched performance where traditional materials fall short. The journey from initial concept to full-scale production requires careful attention to material specifications, manufacturing processes, and quality control standards. Among the most critical components in this ecosystem are customized titanium countersunk washers, which provide essential load distribution and surface protection in high-performance assemblies. These specialized fasteners combine titanium's exceptional strength-to-weight ratio with precision engineering to meet the demanding requirements of aerospace, medical, and marine applications.

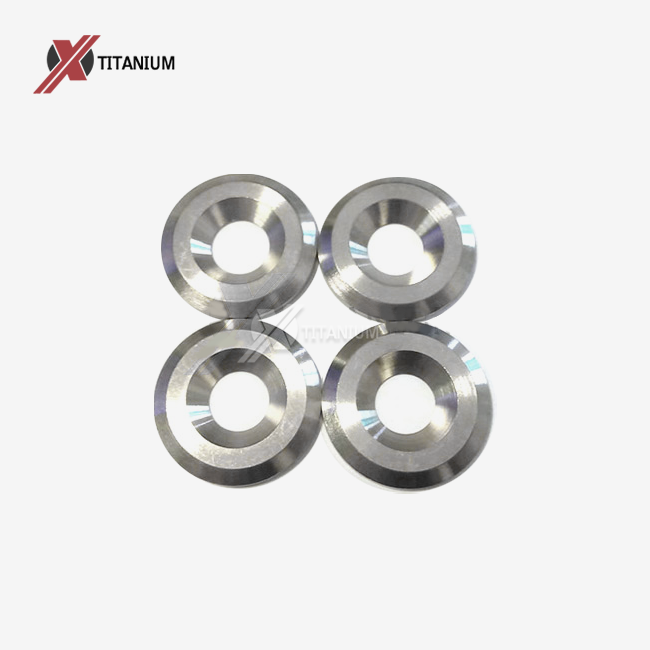

Comprehending Customized Titanium Countersunk Washers

Titanium countersunk washers that are customized are examples of precision-engineered fastener components that are tailored to satisfy the requirements of a particular application, especially in situations where weight, toughness, and corrosion resistance are the most important factors. Because of their countersunk design, they are able to be flush-fitted with screw heads, which improves both the structural integrity and the aesthetics of the product while preserving its best performance qualities.

Material Properties and Performance Advantages

In the aerospace, marine, among medical device production industries, these washers are a vital component due to the exceptional characteristics of titanium. The substance has an excellent resistance to corrosion, which enables it to work dependably in hostile chemical conditions, which would otherwise cause steel components to corrode very quickly. Furthermore, titanium is able to preserve its mechanical qualities even when subjected to very high temperatures, ranging from cryogenic atmospheres to high-temperature applications that surpass 400 degrees Celsius.

Titanium is a biocompatible material, which makes these washers especially useful in uses in medicine, where the purity of the material and the safety of the biological system are of the utmost importance. The smooth integration of titanium with biological systems makes it a suitable material for implanted devices and surgical equipment. Copper-based alloys, on the other hand, have the potential to trigger tissue responses via their presence.

Manufacturing Processes and Quality Control

Clients are able to take use of the full potential of titanium washers for high-performance assemblies if they have a thorough understanding of the production processes, which include CNC machining and forging, as well as stringent quality control and customisation tolerances. Advanced machining centers, which are capable of preserving tolerances of ±0.025mm, are used in modern production facilities. These centers are essential for providing good fit and load distribution among the components.

In order to provide comprehensive documentation for aero and medical certifications, quality control processes take into account the traceability of materials, beginning with raw titanium ingots and continuing through final components. Each batch is subjected to a chemical mix analysis, mechanical property examination, and dimensional verification in order to ensure that the performance of the product remains constant throughout the manufacturing runs.

Key Specifications and Measurements for Titanium Countersunk Washers

Titanium countersunk washers come in both standard and highly customizable sizes tailored to diverse industrial requirements. Accurate measurement of dimensions—including outer diameter, inner diameter, and countersink angle—is essential for ensuring a perfect fit and optimal load distribution.

Titanium Grades and Material Selection

Titanium comes in a variety of grades, each of which offers a unique combination of mechanical durability, hardness, and resistance to corrosion. This gives engineers the ability to choose the material that is most suited for their applications. As a result of its moderate strength and exceptional resistance to corrosion, grade 2 titanium is an ideal choice for applications involving chemical processing. Grade 5 (Ti-6Al-4V) is an excellent choice for aircraft structural components because it has high mechanical qualities, including tensile strengths that are more than 900 MPa.

A number of application criteria, including as the temperature of operation, chemical exposure, psychological loads, and weight limits, are evaluated as part of the selection process. When determining material grades, engineers are required to take into consideration factors such as machining ability and forming qualities, among other production needs.

Dimensional Standards and Customization Options

Standard dimensional ranges typically span from 3mm to 50mm outer diameter, with countersink angles ranging from 60° to 120° depending on application requirements, such as those for a customized titanium countersunk washer. Custom specifications can accommodate larger sizes, specialized angles, and unique geometries to meet specific assembly needs.

Titanium washers provide higher performance in comparison to aluminum and stainless steel washers. Titanium washers combine a large ratio of strength to weight with remarkable endurance in corrosive and harsh conditions. As a result, titanium washers are the material of choice in important engineering areas. It is possible to achieve weight reductions of more than forty percent in comparison to steel while yet keeping an identical or greater load-bearing capability.

Applications and Industry Benefits of Titanium Countersunk Washers

Countersunk washers made of titanium are extensively employed in the aerospace and heavy engineering industries. Their primary purpose is to lower the weight of assemblies without sacrificing their mechanical strength. This directly contributes to the improvement of fuel economy and structural safety. These components are used by makers of commercial aircraft in wing assemblies, powerplant mounts, and control surfaces, all of which are areas in which a decrease in weight immediately correlates to improvements in operating cost reductions.

Aerospace and Defense Applications

Every single gram of loss of weight that is achieved in aircraft applications adds to an improvement in fuel economy as well as an increase in payload capacity. Washers made of titanium that are used in engine components are required to be able to endure very high temperatures while also preserving their dimensions throughout thermal cycling. Fastener assemblies are protected from becoming loose as a result of temperature fluctuations because to the low thermal expansion factor of the material.

Components that are used in military applications must be able to work dependably in battle situations, which may include being subjected to ballistic blows and harsh weather conditions. As a result of its durability and resistance to fatigue, titanium is able to maintain its performance even after it has been subjected to damage that would affect the performance of other materials.

Marine and Chemical Processing Industries

In marine environments, their corrosion resistance significantly lowers maintenance costs and extends service life under harsh conditions. Saltwater exposure rapidly degrades steel fasteners, leading to frequent replacement and potential structural failures. Titanium components maintain their integrity for decades in marine service, reducing lifecycle costs and improving safety margins.

Because titanium is inert to the majority of industrial chemicals, include acids, bases, & organic solvents, chemical processing plants may reap the benefits of titanium's stability. This chemical stability minimizes the danger of failures in essential safety systems that are connected to fasteners and prevents the contamination of product streams throughout the manufacturing process.

Medical and Precision Electronics Applications

Titanium's its biocompatibility & material stability provide it an advantage for healthcare products and precision electronics. These qualities are particularly important for applications that are implanted or very sensitive. The washers that are used for surgical instruments need to be able to survive several rounds of sterilization without deteriorating or suffering from dimensional changes. Titanium can withstand hundreds of autoclave cycles without losing any of its qualities, and it is totally biocompatible throughout the process.

Electronics applications in harsh environments require non-magnetic materials that won't interfere with sensitive components. Titanium's non-magnetic properties and excellent EMI shielding characteristics make it ideal for aerospace and military electronics assemblies, where components such as customized titanium countersunk washers ensure both structural integrity and electromagnetic compatibility.

From Prototype to Production: Sourcing and Procurement Tips

Partnering with dependable suppliers that can provide evidence of verified certifications, strong production capabilities, and favorable customer feedback is essential to the successful purchase of bespoke titanium countersunk washers. When doing vendor evaluations, businesses that sell to other businesses should take into account lead times, minimum order values, and flexible customization possibilities.

Supplier Evaluation and Certification Requirements

The evaluation of the certifications held by the suppliers is the first step in the selection process. These certifications should include AS9100 for aerospace-related uses, ISO 13485 for healthcare equipment, and ISO 9001 to get general quality management. Suppliers are guaranteed to maintain quality systems that are capable of manufacturing components that are in accordance with severe industry criteria by virtue of these certifications.

When conducting an evaluation of manufacturing capabilities, it is important to include facility visits, inspections of equipment, and a study of the processes for process control. In order to manufacture titanium components of a constant high quality, it is necessary to have sophisticated CNC machining centers, precise measurement machines, and metal testing equipment.

Procurement Strategy and Cost Optimization

Understanding pricing strategies, including cost benefits of bulk purchases, enhances negotiation leverage while maintaining quality standards. Titanium raw material costs fluctuate based on market conditions, making long-term supply agreements beneficial for budget planning and cost stability.

Volume discounts typically begin at quantities above 1,000 pieces, with significant savings available for annual contracts exceeding 10,000 pieces. However, inventory carrying costs must be balanced against volume pricing to optimize total cost of ownership.

Supply Chain Management and Quality Assurance

Maintaining the continuity of the supply chain requires efficient delivery and transportation logistics, while after-sales support, which includes warranties and technical help, maintains quality compliance and the value of the relationship over the long term. These factors are essential for engineering companies, distributors, and original equipment manufacturers (OEMs) that are looking to incorporate titanium washers into their manufacturing processes in a smooth manner.

Risk mitigation strategies should include supplier diversification, safety stock planning, and alternative sourcing options—such as the use of customized titanium countersunk washers in critical assemblies—to prevent production disruptions. Regular supplier audits and performance monitoring ensure continued compliance with quality and delivery requirements.

Baoji Chuanglian: Your Partner for Custom Titanium Solutions

With considerable knowledge in the production of high-quality steel countersunk washers that are adapted to the demands of the customer, Baoji Hong Kong New Metal Resource Co., Ltd. is a company that specializes in the precise manufacture of bespoke titanium components. Our company, which is situated in Baoji City, sometimes referred to as the " City of Titanium," takes use of its advantageous location and has more than 10 years of expertise in the manufacture and development of titanium products.

Advanced Manufacturing Capabilities

The extensive machining procedures that our firm is able to provide are able to satisfy a wide range of industrial requirements since our company employs a dozen cutting-edge and innovative mechanical processing equipment. We maintain a rigorous adherence to national, worldwide, and industry rules while regularly upgrading our infrastructure and technological capabilities. This has been accomplished through years of collecting and development.

We provide assistance to our clients throughout the design, development, and mass production phases using cutting-edge CNC machine tools and quality control systems. This helps us to guarantee that our products are of the highest possible quality. Titanium fasteners, steel rods, wire products, plating, tubes, flanges, and a variety of machined components for a wide range of applications are all part of our production processes.

Quality Control and Certifications

We maintain a strict quality control system from raw material procurement through finished product delivery, with every production stage undergoing rigorous inspection to ensure high-quality products reach our customers. Our quality titanium products have been successfully tested by well-known companies worldwide for many years, earning recognition for excellent customer service, high quality, and prompt delivery times.

We cater to B2B procurement partners—including OEMs, distributors, and engineering firms—offering flexible customization, competitive pricing, and reliable delivery services. Our commitment to quality and collaboration positions us as a trusted partner for clients demanding precision titanium fasteners that meet stringent industrial standards across petrochemical, electrolysis, marine, desalination, racing, medical, and aerospace applications.

Conclusion

The evolution of custom titanium parts from prototype to production represents a sophisticated journey requiring expertise in material science, precision manufacturing, and quality control. Customized titanium countersunk washers exemplify the precision and performance capabilities achievable through advanced titanium processing technologies. Success in this specialized field depends on partnering with experienced manufacturers who understand both the technical requirements and commercial realities of titanium component production. As industries continue demanding higher performance standards with reduced weight and enhanced durability, titanium fasteners will remain essential components in next-generation engineering solutions.

FAQ

What advantages do titanium countersunk washers offer over steel alternatives?

Titanium countersunk washers provide superior corrosion resistance, approximately 40% weight reduction compared to steel, and maintain mechanical properties across extreme temperature ranges. These advantages result in longer service life, reduced maintenance costs, and improved performance in demanding applications such as aerospace and marine environments.

How do you specify dimensions for custom titanium washer orders?

Custom specifications require detailed drawings including outer diameter, inner diameter, thickness, countersink angle, and surface finish requirements. Engineers should also specify titanium grade, quantity requirements, and any special testing or certification needs. Working with experienced suppliers helps optimize designs for manufacturability while meeting performance requirements.

What are typical lead times for custom titanium washers?

Lead times vary based on complexity, quantity, and customization requirements. Standard configurations typically require 2-3 weeks for small quantities, while complex custom designs may require 4-6 weeks. Large volume orders or specialized testing requirements can extend lead times to 8-10 weeks. Planning procurement schedules around these timelines ensures project continuity.

Which titanium grades are best for different applications?

Grade 2 titanium offers excellent corrosion resistance for chemical and marine applications, while Grade 5 (Ti-6Al-4V) provides superior strength for aerospace and high-stress applications. Medical applications typically utilize Grade 2 or Grade 23 for biocompatibility. Consulting with material experts helps select optimal grades for specific operating conditions and performance requirements.

Partner with Chuanglian for Premium Customized Titanium Countersunk Washers

Ready to enhance your projects with precision-engineered titanium fasteners? Baoji Chuanglian combines decades of titanium manufacturing expertise with cutting-edge CNC machining capabilities to deliver customized titanium countersunk washers that exceed industry standards. Our comprehensive quality control systems and strategic location in China's titanium capital ensure reliable supply chain solutions for aerospace, medical, and industrial applications.

Whether you need prototype quantities for testing or large-scale production runs, our experienced team provides technical consultation, competitive pricing, and flexible customization options. As a trusted customized titanium countersunk washer manufacturer, we understand the critical importance of precision, quality, and delivery reliability in your procurement decisions. Contact our technical team at info@cltifastener.com or djy6580@aliyun.com to discuss your specific requirements and request detailed quotations.
