How do platinized titanium anodes function in electrolysis?

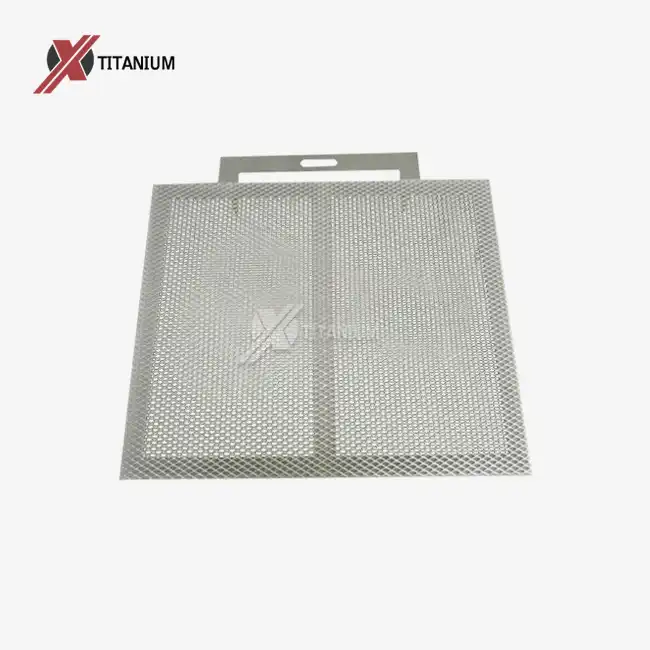

Platinized titanium anodes are stable electrodes made up of a titanium base (usually Grade 1 or Grade 2) and a thin layer of platinum (2 to 15 microns) that is carefully placed on top of it. The platinum layer acts as an electrocatalytic surface during electrolysis, making it easier for electrons to move between the anode and the liquid without using up any materials. Unlike other soluble anodes, this composite structure keeps its shape throughout its working life. It also offers better corrosion resistance and higher current efficiency, which are important for demanding electrochemical processes in the marine, petrochemical, and aerospace engineering fields.

​

Understanding Platinized Titanium Anodes in Electrolysis

The basic structure of platinized titanium anodes solves problems that come up over and over again in industrial electrochemical processes. With a high strength-to-weight ratio, the titanium layer has great mechanical strength, and its natural oxide film keeps the base metal from dissolving under anodic polarization. The platinum layer, which can be put on using precise electroplating or heat breakdown, is where the oxidation processes happen because it is an active electrochemical contact.

Core Working Principles

In electrolytic cells, these anodes are the positive electrodes where oxidation processes happen, making oxygen, chlorine, or other species based on the make-up of the electrolyte. The platinum surface has a very low overpotential for oxygen generation. This means that less electrical energy is lost as heat. This catalytic efficiency directly leads to lower running costs and better process economics. The titanium core doesn't react with electricity because it is covered by both its oxide layer and its platinum coating. This keeps the structure strong even after years of continuous use.

Electrochemical Advantages

Process engineers who are looking at electrode systems like how this combo improves performance in a way that can be measured. The current level ranges from 1 to 100 A/dm², so it can be used for a wide range of tasks, from gentle electrorefining to rough electrowinning. The fixed electrode-electrolyte gap distance stops voltage creep, which happens with graphite anodes that are wearing down. This keeps the cell voltage steady and the power use known over the anode's lifetime.

Material Composition and Manufacturing Standards

Several quality control steps are built into our production process. To get the best bonding properties, the titanium base's surface is carefully prepared by soaking or acid cleaning. When applying a coating, controlled electroplating procedures make sure that the platinum is spread out evenly across complicated shapes.

Before it is shipped, every finished platinized titanium anode is toughness tested, bending tested, and its electrochemical performance checked to make sure it meets the standards needed by AS9100 and ISO9001 approved businesses.

Comparison of Platinized Titanium Anodes with Other Anode Types

When buying expensive electrical systems, you need to do a lot of research to compare your options. Knowing how different anode technologies work lets you make smart decisions about buying capital equipment and planning operations.

Graphite Anodes

Traditional graphite anodes wear out quickly and need to be replaced often. They also make harmful particles that need to be cleaned up with filter systems. Their changing sizes make the gaps between the electrodes bigger, which raises the cell's resistance and energy use over time. Even though the initial costs of purchase may seem low, the total cost of ownership numbers show that the costs are much higher over the life of the product because it needs to be replaced more often, thrown away, and production stops while it is being replaced.

Mixed Metal Oxide (MMO) Anodes

MMO-coated titanium options have the same benefit of being stable in size, but they have different electrical properties. Most MMO coats have iridium, ruthenium, or tantalum oxides that work best for releasing chlorine in brine electrolysis. In most cases, these mixtures are less expensive than platinum coats, but they don't last as long in harsh settings. Platinum surfaces keep working better for longer amounts of time in sulfuric acid, chromic acid, or seawater solutions where stability is important.

Pure Platinum Electrodes

Solid platinum electrodes have the best electrochemical performance, but they are too expensive for most projects to afford. The method using platinized titanium has almost the same electrical properties as the other method, but it uses over 90% less valuable metal. This technical answer gives you the catalytic benefits of platinum at a price that is affordable and good for large-scale commercial setups.

Cost-Benefit Analysis for Procurement

A full lifespan analysis shows that platinized titanium anodes usually pay for themselves in 18–24 months compared to other options in settings with ongoing operation. When properly kept, systems can last for more than five years. This, along with the fact that they don't need to be replaced as often and use less energy, makes for a strong return on investment. When chemical processing plants switch from graphite electrodes to platinized titanium anodes, they use 15–25% less specific energy.

Applications and Industrial Relevance of Platinized Titanium Anodes

These electrode systems can be used in a wide range of high-value industries where dependability and regularity of performance have a direct effect on the quality of production and the efficiency of operations.

Electroplating and Surface Treatment

Platinized titanium anodes are used by companies that make aerospace parts to hard gold plate landing gear, hydraulic cylinders, and turbine parts. The physical stability makes sure that the layer thickness is the same across complicated part shapes, meeting the strict limits needed by aircraft quality standards. When there is no anode gunk, there are no problems with water contamination that weaken the coating and increase rejection rates in precise uses.

Water Treatment and Electrochlorination

These anodes are used in marine engineering to protect offshore platforms, ship decks, and the structures of desalination plants with impressed current cathodic protection systems. The high resistance to rust in chloride-rich seawater means that the product will last for more than 20 years with little upkeep. Municipal water treatment plants use the technology to make sodium hypochlorite on-site, which means they don't have to store or move dangerous chemicals.

Chemical Synthesis and Electrorefining

In petrochemical activities, platinized titanium anodes are used in electrolytic cells that make specific chemicals, hydrogen, and very pure metals. The electrodes can handle harsh acidic and alkaline fluids at high temperatures and keep working well across a wide range of process parameters. This chemical flexibility lets you build and improve processes in a creative way, without having to worry about how the electrode material limits your operating windows.

Maintenance Protocols and Operational Lifespan

To get the best return on investment, organized repair plans that are tailored to the specifics of the business must be put in place. Visual inspections done on a regular basis find patterns of covering wear before they affect production numbers. Periodic cleaning with approved chemical solutions gets rid of buildups that raise the overpotential and lower the current efficiency. Anodes that are properly kept can usually work for 40,000 to 60,000 hours before they need to be recoated or replaced. This is as long as they are used within certain current density ranges and temperature limits.

Procurement Insights: Sourcing Platinized Titanium Anodes

To find qualified platinized titanium anodes, you need to carefully evaluate suppliers and communicate clear specifications so that the goods you receive meet strict performance standards.

Supplier Qualification Criteria

Buyers in the industrial sector should check that a company can make things by having the factory inspected or getting a third-party approval that shows the quality management systems are in line with industry standards. Being able to provide full material tracking, from titanium mill test results to records of the finishing process, helps regulatory compliance paperwork and makes sure that people are held accountable. Suppliers who have their own testing labs that can do electrical analysis can give you even more confidence that the product will be the same from batch to batch.

Technical Specification Development

Specifications for buying something should be very clear about the base material grade, covering thickness, surface finish needs, and allowed deviations in size. When compared to normal store items, custom shapes that are made to fit current cell setups often work better. Talking to expert sales reps about factors that are specific to an application can help you find the best specs that balance performance needs with budget limits.

Lead Times and Order Planning

Custom platinized titanium anodes usually take between 6 and 12 weeks to make, but this depends on how complicated the design is and how far along the production line it is. Project managers should include these wait times in their equipment setup plans so that the delivery of electrodes and the fitting of cells happen at the same time. Setting up framework agreements with qualified suppliers makes it easier to place repeat orders and makes sure that urgent needs get priority production slots.

Quality Assurance and Acceptance Testing

When it is delivered, it should be inspected to make sure that the measurements are correct and the surface finish is good. Asking for X-ray fluorescence or other non-destructive measures of layer thickness at certain places proves that the manufacturing process is following the rules. Some buyers ask for witness testing, in which staff from the seller show the electrical performance features of the goods before accepting the shipment.

Baoji Chuanglian New Metal Material Co., Ltd. has strict quality control measures in place that include checking the raw materials and testing the finished products. Our location in Baoji City, which is known around the world as the "City of Titanium," gives us direct access to high-quality titanium material and specialized processing know-how that has been built up over decades of industry growth in the region. We help buying teams by providing them with full technical paperwork, application engineering support, and a range of flexible customization options that can be used to meet specific business needs.

Optimizing Electrolysis Performance with Platinized Titanium Anodes

To get the most out of electrolysis with platinized titanium anodes, you need to pay attention to how they are installed, how they work, and how often they are monitored.

Installation Best Practices

When electrodes are placed correctly, current flows evenly through the electrolytic cell space. Mounting gear must provide strong mechanical support while keeping structure parts electrically separate. At connection places, you need low-resistance contacts with the right electrical screws and anti-corrosion steps to keep the voltage from dropping, which wastes energy. During installation, be careful not to damage the platinum finish by hand and use protection covers until the final assembly.

Operational Parameter Management

Working within the current density limits given by the maker stops burning in one area, which speeds up the degradation of the layer. Controlling the temperature of the electrolyte keeps the conductivity at its best and keeps the electrode materials from being damaged by heat. Regularly checking and adjusting the electrolyte stops concentration shift that lowers the current's efficiency and adds impurities that could damage the platinum surface. Keeping the suggested flow rates across electrode surfaces helps get rid of gas bubbles that block the active surface area and cools things down.

Performance Monitoring and Troubleshooting

Tracking the voltage of a cell over time lets you know quickly if the coating is wearing off or getting dirty, which means you need to do some maintenance. Sudden voltage rises may mean that deposits are building up, while slow voltage rises may mean that the covering is being lost over time. Visual inspections done on a regular basis during planned shutdowns show areas that are wearing out too quickly, which leads to process changes that make the whole system last longer. Putting in place data logging tools lets you look at trends, which helps with predictive repair plans.

Emerging Technology Developments

New developments in the ways that platinum is coated make the covering stick better and be more even across complicated three-dimensional shapes. Using pulsed electrodeposition methods makes platinum microstructures with smaller particles that are better at catalysis and prevent wear. Platinum alloy coating research looks into how to improve performance for certain solution formulas while lowering the amount of valuable metal used. These new developments continue improving the value proposition of platinized titanium anode systems.

Conclusion

Platinized titanium anodes are an advanced technology that has been used for many years and has been shown to be useful in a wide range of difficult electrochemical uses. When you combine the structural qualities of titanium with the electrical quality of platinum, you get electrode systems that meet the high standards for performance, stability, and life that are common in aircraft, petroleum, and marine engineering. Industrial buyers can make confident buying choices that meet operating goals and budget limits when they understand the technical principles, comparison benefits, and procurement factors. When you install, maintain, and run something correctly, you get the most out of your investment because it lasts longer and uses less energy.

FAQ

What determines the appropriate platinum coating thickness for my application?

When choosing a coating thickness, the original cost is weighed against the service life and working conditions that are needed. Thinner layers (2–5 microns) work best in situations with less current density or irregular use, where long-term durability is not expected to be very high. 10–15 micron coats are better for heavy-duty ongoing processes because they last longer before they need to be recoated. Our expert team looks at your unique working hours, current density, and battery chemistry to give you the best advice.

How frequently should platinized titanium anodes be replaced?

Platinized titanium anodes that are well taken care of and work according to the manufacturer's instructions should last between 5 and 10 years before they need to be recoated or replaced. Longevity is greatly affected by operational factors such as current density, chemical aggression, and temperature cycles. Regularly checking the voltage of the cells and visually inspecting them on a regular basis give data-driven replacement plans instead of random calendar-based ones.

Can existing anode designs be replicated with platinum-titanium construction?

Custom manufacturing lets you make electrodes with almost any shape that works with titanium cutting and platinum finishing. By giving detailed plans, photos, or example units, you can make an exact copy of an existing design while also possibly adding design changes that make it work better or be easier to make.
