How Titanium Dowel Pins Ensure Precision Alignment

Titanium dowel pins represent a revolutionary solution for achieving exceptional precision alignment in critical manufacturing applications. These specialized fastening components leverage titanium's unique material properties to deliver unmatched dimensional stability, corrosion resistance, and strength-to-weight ratios that traditional steel alternatives simply cannot match. When precision matters most—whether in aerospace assembly lines, medical device manufacturing, or high-performance automotive applications—titanium dowel pins provide the reliability and accuracy that engineers demand for maintaining perfect component alignment throughout extended operational lifecycles.

There has never been a time when manufacturing accuracy was more important than it is right now. Industrial customers in the aerospace, medical, petrochemical, but electronics industries are under increasing pressure to remove alignment mistakes, which may cascade into expensive production delays or operational failures. Tolerances are measured in microns, and quality requirements have reached levels that have never been seen before. When confronted with the harsh temperatures, acidic surroundings, or rigorous load conditions that are characteristic of current high-performance applications, traditional alignment techniques often fail to meet the requirements or expectations.

Comprehending Titanium Dowel Pins and Their Precision Alignment Role

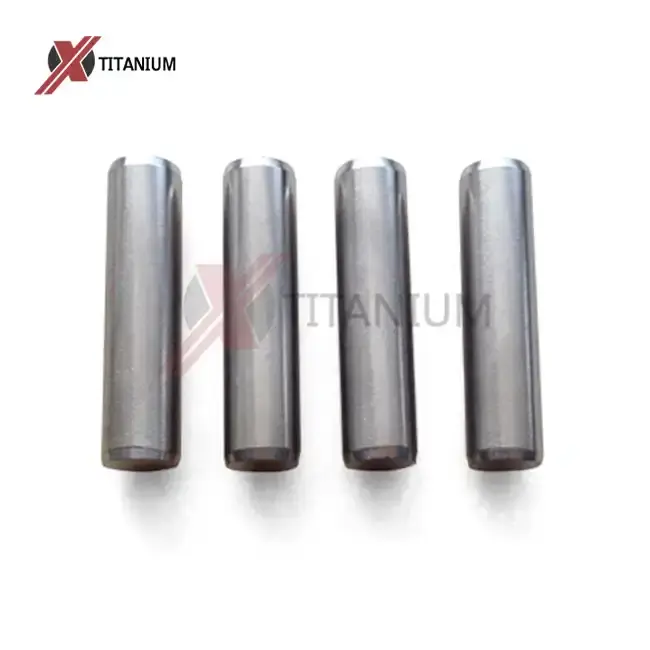

Dowel pins made of titanium are cylindrical components that are machined with precision and are meant to preserve perfect positioning relationships between mating elements in crucial assemblies. Additionally, in contrast to traditional steel pins, all of these parts are made from medical-grade titanium alloys, which combine remarkable mechanical qualities with outstanding resistance to the environment.

Material Composition and Manufacturing Excellence

Two grades of commercial pure titanium Grade 5 (Ti-6 Al-4 V) titanium alloy are the two types of titanium that are most often specified for use in dowel pin applications. Because of its superior resistance to corrosion and formability, grade 2 titanium is a suitable choice for applications in which chemical compatibility is among the most important considerations. Grade 5 titanium is distinguished by its improved strength properties, which include tensile strengths that are more than 130,000 pounds per square inch (psi), while yet preserving the lightweight benefits that titanium is famous for.

In order to manufacture precise titanium dowel pins, the manufacturing procedures comprise a series of multi-stage machining operations. These operations aim to produce surface finishes that are less than 32 microinches and tolerances for dimensions that are within ±0.0002 inches. The maintenance of these stringent requirements is accomplished by the use of computer-controlled turning activities, precision grinding, and stringent quality control processes that check dimensional correctness at several stages of production.

Titanium is used by manufacturers because of its excellent machinability, which enables them to generate complicated geometries and specific features that boost alignment accuracy. Individualized designs may consist of tapered the profiles, slotted sections, or customized surface treatments that are designed to improve performance in accordance with the needs of a particular application.

Precision Alignment Capabilities

When it comes to applications that need accurate alignment, titanium dowel pins have a number of major benefits, one of the most important of which is their dimensional stability. Titanium alloys have a relatively small coefficient of thermal expansion, which guarantees that alignment relationships stay stable throughout a large temperature range. This is an important factor for applications in the aerospace and automotive industries, which often involve thermal cycling.

Titanium's excellent fatigue resistance enables these components, such as titanium dowel pins, to maintain their precision alignment function through millions of operational cycles without dimensional degradation. This characteristic is particularly valuable in dynamic assemblies where repeated loading and unloading cycles would compromise the performance of conventional materials.

The corrosion resistance properties of titanium ensure that dimensional accuracy is preserved even in aggressive chemical environments. Unlike steel alternatives that may experience corrosion-induced dimensional changes over time, titanium dowel pins maintain their original specifications throughout extended service intervals.

Titanium Dowel Pins vs. Alternatives: Making the Right Choice for Precision

In order to pick the appropriate material for precision alignment applications, it is necessary to conduct a thorough analysis of the performance characteristics, environmental reliability, and long-term dependability aspects. Being able to make educated procurement choices that maximize performance as well and cost-effectiveness is made possible by having a thorough understanding of how zirconium compares to traditional alternatives.

Comparative Performance Analysis

Due to their readily accessible and cheaper initial cost, steel dowel pins have historically been the most popular choice for alignment applications throughout history. Steel's vulnerability to corrosion, increased density, and restricted temperature stability, on the other hand, offer substantial restrictions in conditions that are very demanding. Certain protective coatings are necessary for carbon steel pins; nevertheless, these coatings have the potential to compromise precision in dimensions and may degrade over time, which might result in alignment drift and more assembly failures.

Stainless steel offers improved corrosion resistance compared to carbon steel but still falls short of titanium's performance in aggressive environments. The higher density of stainless steel (approximately 0.29 lb/in³ compared to titanium's 0.16 lb/in³) creates weight penalties that can be significant in aerospace and automotive applications where every gram matters.

Aluminum dowel pins provide weight savings but lack the strength and durability required for high-stress applications. The relatively soft nature of aluminum can lead to deformation under load, compromising alignment precision over time. Aluminum's tendency to gall when in contact with similar metals further limits its suitability for critical alignment applications.

Real-World Application Benefits

When it comes to engine assembly, producers in the aerospace industry have shown that switching from steel into titanium dowel pins results in considerable performance increases. Titanium's use results in a decrease in weight, which directly leads to gains in fuel economy. Additionally, the increased corrosion resistance prevents maintenance-related alignment drift, which may have an impact on engine performance.

Medical device manufacturers particularly value titanium's biocompatibility characteristics in applications where precision alignment is critical for device functionality. The non-magnetic properties of titanium enable these components to be used in MRI-compatible devices without interfering with imaging quality or patient safety.

Titanium is an excellent material for use in petrochemical applications because of its great resistance to salt stress corrosion cracking. This is a kind of failure mode that often affects stainless steel elements in situations that include chemical processing or maritime conditions. The capacity to preserve perfect alignment in these harsh circumstances allows for an extension of the service life of the equipment and a reduction in the expenses of unexpected repair.

How Titanium Dowel Pins Ensure Precision Alignment in Practice?

The engineering principles underlying titanium dowel pin performance extend beyond basic material properties to encompass design optimization, manufacturing precision, and installation best practices that collectively deliver superior alignment capabilities.

Engineering Fundamentals of Precision Alignment

Fit tolerance relationships represent the foundation of effective dowel pin alignment systems. Titanium's superior dimensional stability enables the use of tighter tolerance fits without the risk of binding or galling that can occur with steel components. The typical specification calls for H7/m6 fit relationships that provide secure positioning while allowing for thermal expansion differences between mating components.

When it comes to alignment accuracy and long-term performance, the quality of the surface finish is an extremely important factor. Titanium dowel pins have the ability to attain surface finishes that are similar to mirrors, which effectively reduces the amount of friction that occurs during assembly and lessens the chance of wear-induced physical changes. Due to the fact that titanium has exceptional work hardening qualities, its surface attributes actually enhance with service, which ultimately results in an increase in alignment durability over time.

Load distribution characteristics of titanium enable more uniform stress transfer between aligned components. The elastic modulus of titanium (16 million psi) closely matches that of aluminum alloys commonly used in aerospace applications, creating compatible deformation patterns that maintain alignment integrity under varying load conditions.

Quality Control and Verification Methods

Coordinate measuring machines (CMM) inspection is generally used in the process of dimensional verification procedures for titanium dowel pins. This inspection validates the diameter, dimension, and straightness variables to sub-micron error levels. Statistical process control systems guarantee that the variances that occur during manufacturing are kept within the limitations that have been defined across the production runs.

Material certification testing includes tensile strength verification, chemical composition analysis, and corrosion resistance validation according to relevant ASTM standards. These tests provide documented evidence of material performance that supports traceability requirements in aerospace and medical applications.

Alignment verification procedures involve specialized fixturing that simulates actual assembly conditions while measuring positional accuracy, including for titanium dowel pins. These tests validate that dowel pin performance meets design requirements and identify any potential issues before components reach production applications.

The implementation of these quality control measures ensures that titanium dowel pins deliver consistent performance that justifies the premium associated with advanced materials. Documentation packages typically include material test reports, dimensional inspection records, and certification statements that support quality management system requirements.

Procurement Insights for Titanium Dowel Pins in B2B Settings

Titanium dowel pins are guaranteed to give constant performance, which justifies the premium that is associated with sophisticated materials, thanks to the application among these quality control methods. Documentation packages often consist of substances test results, dimensional examination records, and certified statements that are designed to fulfill the needs of quality management systems.

Supplier Selection and Qualification Criteria

The capabilities of suppliers in terms of processing titanium are notably different from one another, which is why technical certification is an important component of the the purchasing procedure. For titanium machining, leading providers maintain specialist equipment, such as carbide tooling systems while regulating atmosphere processing capabilities. These capabilities are essential for reaching the level of accuracy that is needed in critical applications.

Certification requirements typically include AS9100 aerospace quality management systems, ISO 13485 medical device standards, or equivalent quality frameworks that demonstrate systematic approaches to precision manufacturing. These certifications provide assurance that suppliers have implemented the process controls necessary for consistent quality delivery.

Given the highly specialized nature of platinum processing, supply chain stability is another important factor to take into account. Even during times of strong market demand, qualified suppliers are able to retain strategic stockpile positions and have additionally established ties with titanium mill sources, which enables them to provide products in a predictable manner.

Technical support capabilities distinguish leading suppliers from commodity providers. The complexity of titanium applications often requires collaborative engineering support during the specification development process, making supplier technical expertise a valuable procurement consideration.

Commercial Considerations and Cost Optimization

Minimum order quantities for custom titanium dowel pins typically range from 100 to 500 pieces, reflecting the setup costs associated with precision machining operations. Volume breaks become significant at quantities exceeding 1,000 pieces, where per-unit costs can decrease substantially through optimized manufacturing processes.

Lead time considerations vary based on material grade, dimensional complexity, and current market conditions. Standard configurations in common titanium grades may be available within 4-6 weeks, while custom specifications requiring special tooling or exotic alloys may require 8-12 weeks for delivery.

Value engineering opportunities often emerge through collaboration with qualified suppliers who can suggest design modifications that reduce manufacturing complexity without compromising performance. These optimizations can include standardization on common diameters, length specifications, or tolerance requirements that enable more efficient production.

Long-term supply agreements provide mutual benefits by enabling suppliers to invest in specialized tooling and processes while providing buyers with predictable pricing and delivery performance. These relationships are particularly valuable in titanium markets where material costs can be volatile.

Company Introduction and Our Titanium Dowel Pin Solutions

Baoji Chuanglian New Metal Material Co., Ltd. stands as a leading manufacturer and exporter of precision titanium components, such as titanium dowel pins, strategically located in Baoji City, renowned globally as the "City of Titanium." Our company represents a technological and innovative enterprise specializing in the research, production, and machining of various titanium and rare metal products that serve the most demanding industrial applications.

Manufacturing Excellence and Technical Capabilities

Our comprehensive manufacturing capabilities encompass more than ten years of specialized experience in titanium product machining and research. This extensive background enables us to deliver titanium dowel pins that meet the exacting requirements of aerospace, medical device, petrochemical, and high-performance automotive applications where precision alignment is absolutely critical.

The company operates a dozen CNC machine tools and advanced mechanical processing equipment specifically optimized for titanium machining. Our manufacturing processes incorporate the latest technology updates and equipment enhancements, ensuring that we remain at the forefront of precision titanium component production. This commitment to technological advancement enables us to achieve the sub-micron tolerances and superior surface finishes that distinguish our titanium dowel pins in competitive markets.

Our quality control systems extend from raw material inspection through finished product verification, with every production step subject to rigorous inspection protocols. This systematic approach ensures that titanium dowel pins delivered to customers meet the highest quality standards while maintaining the dimensional accuracy and material properties essential for precision alignment applications.

Comprehensive Product Range and Value-Added Services

Our titanium dowel pin product line encompasses standard sizes from 1mm to 50mm diameter with custom length specifications available to meet unique application requirements. Material options include Grade 2 commercial pure titanium for maximum corrosion resistance and Grade 5 (Ti-6Al-4V) titanium alloy for enhanced strength characteristics in demanding structural applications.

Value-added services complement our manufacturing capabilities through specialized packaging solutions, expedited delivery options, and comprehensive technical documentation packages. Our engineering team provides application-specific consultation services that help customers optimize dowel pin specifications for their unique alignment requirements.

The global reach of our distribution network enables efficient delivery to customers across aerospace, medical device, petrochemical, and electronics industries worldwide. Our established partnerships with international logistics providers ensure that quality titanium dowel pins reach customers with the reliability and timing that critical applications demand.

Conclusion

Titanium dowel pins represent a superior solution for precision alignment applications where traditional materials fall short of performance requirements. The unique combination of dimensional stability, corrosion resistance, and strength-to-weight advantages positions titanium as the optimal choice for demanding aerospace, medical, petrochemical, and electronics applications.

The engineering benefits of titanium dowel pins extend beyond basic material properties to encompass manufacturing precision, quality assurance, and long-term reliability characteristics that justify premium pricing through reduced maintenance costs and enhanced system performance. Procurement professionals who understand these value propositions can make informed decisions that optimize both technical performance and commercial outcomes.

FAQ

Why do titanium dowel pins provide superior corrosion resistance compared to steel alternatives?

Titanium forms a stable oxide layer on its surface that provides exceptional protection against corrosion in aggressive environments. This passive layer continuously regenerates if damaged, ensuring long-term dimensional stability even in chloride-rich or acidic conditions where steel components would experience significant degradation.

How do I select the appropriate titanium grade for my specific dowel pin application?

Grade 2 commercial pure titanium offers maximum corrosion resistance and is ideal for chemical processing or marine applications. Grade 5 (Ti-6Al-4V) provides higher strength characteristics suitable for structural applications in aerospace or automotive environments. Your application's stress levels, environmental conditions, and weight requirements will determine the optimal grade selection.

What lead times and minimum order quantities should I expect for custom titanium dowel pins?

Standard titanium dowel pin configurations typically require 4-6 weeks for delivery with minimum order quantities of 100-500 pieces. Custom specifications involving special dimensions or exotic alloys may require 8-12 weeks with higher minimum quantities. Volume pricing becomes significant at quantities exceeding 1,000 pieces.

Partner with Chuanglian for Superior Titanium Dowel Pin Solutions

Chuanglian's precision titanium dowel pins deliver the dimensional accuracy and reliability that your critical alignment applications demand. As a leading titanium dowel pins manufacturer with over ten years of specialized experience, we combine advanced manufacturing capabilities with comprehensive quality control systems to ensure consistent performance in the most demanding environments.

Our engineering team provides expert consultation services that help optimize your titanium dowel pin specifications while our flexible manufacturing capabilities accommodate both standard and custom requirements. Whether you need medical-grade biocompatibility, aerospace-level quality certifications, or specialized configurations for unique applications, Chuanglian delivers solutions that exceed expectations. Contact our technical specialists at info@cltifastener.com or djy6580@aliyun.com to discuss your precision alignment requirements and request custom quotations.
