Key Benefits of GR5 Titanium Axle Adjuster Bolts M8 for Export

If you run a motorcycle racing shop or supply performance parts to competitive riders, you already know that bolt selection is never trivial. GR5 titanium axle adjuster bolts M8 deliver a measurable combination of tensile strength exceeding 950 MPa, a density of just 4.43 g/cm³, and corrosion resistance that outlasts steel in the harshest track environments. For B2B buyers sourcing performance fasteners internationally, these bolts represent a technically defensible, commercially competitive upgrade over conventional steel or stainless alternatives.

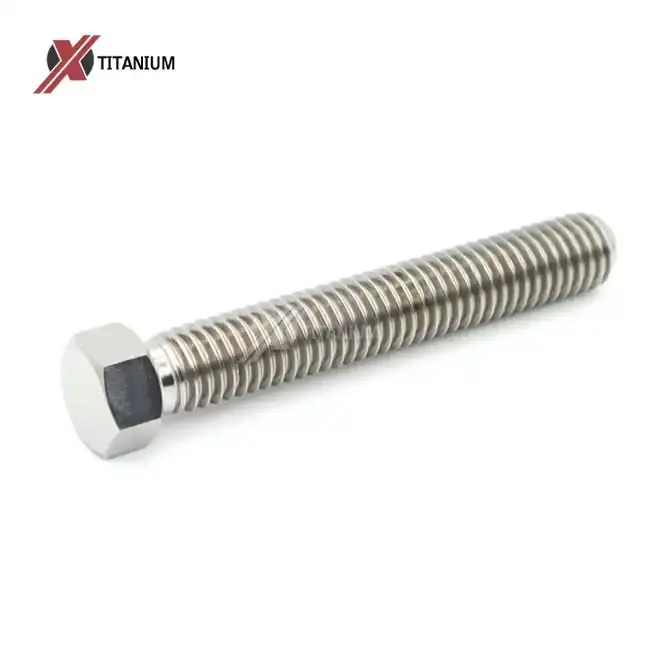

Understanding GR5 Titanium Axle Adjuster Bolts M8

The GR5 designation comes from an alloy called Ti-6Al-4V, which is made up of 90% titanium, 6% aluminum, and 4% vanadium. ASTM B348 and AMS 4928, two of the strictest material standards in the fastener business, say what this makeup must do. The end product is a combination that is about 45% lighter than Grade 10.9 steel but has the same level of strength.

What Makes the M8 Thread Profile Significant?

The M8 x 1.25 metric thread is a globally standard pitch that is used on many motorcycle swingarms, such as those for the Suzuki SV650 and Honda CBR600. At Chuanglian's factory, thread tolerances are kept to ISO 965-2 class 6g standards, and Go/No-Go gages are used to check them during production. When you use rolled threads instead of cut threads, you align the alloy's grain structure and increase its fatigue resistance by up to 30%. This is a huge benefit when you consider the high-frequency vibration loads that racing rear axle hardware has to handle.

Why Corrosion Resistance Matters on Track?

Road salt, chain lube, and pressure washing can speed up galvanic rust, which causes steel adjuster bolts to get stuck inside aluminum swingarms. Titanium's electrical neutrality greatly lowers this reaction, which makes taking it apart after the race easy and protects the swingarm from damage. In race areas near the coast or in the rain, this feature alone makes the material improvement worthwhile.

Performance Comparison: GR5 Titanium vs Other Materials

To make a good buying choice for Gr5 titanium axle adjuster bolts M8, you need to understand the material trade-offs. The table below shows how Ti-6Al-4V compares to other materials commonly used in axle adjusters.

Grade 8.8 steel bolts have enough static strength, but they weigh almost twice as much and rust in wet places if they don't have coatings that protect them. Stainless steel doesn't rust, but it's not very strong for its weight, and it can hurt when torqued. Aluminum is a good way to cut down on weight, but it loses tensile strength and wear life, which can be a problem in safety-critical situations. GR5 titanium is the only material that does well in all four areas at the same time.

Technical Specifications and Usage Guidelines

All of these requirements make sure that the bolt works in a wide range of weather situations, from dry desert courses to wet coastal tracks.

Core Product Specifications

• Material: GR5 Titanium (Ti-6Al-4V), compliant with ASTM B348, AMS 4928, ISO 5832-3
• Thread Size: M8 x 1.25 pitch, tolerance class 6g
• Tensile Strength: ≥950 MPa ultimate tensile strength
• Density: 4.43 g/cm³ — approximately 45% lighter than equivalent steel hardware
• Surface Treatment Options: Polishing, anodizing (Gold, Blue, Green, Purple, Rainbow), PVD nitriding (Black)
• Heat Treatment: Solution treated and aged for optimal mechanical performance
• Hardness: HRC 30–35 range, verified by batch testing

Always use a copper- or nickel-based anti-seize compound on the holes of titanium M8 adjuster bolts before fitting them into aluminum swingarms. To get the right clamping force, lower the OEM-specified torque value by about 15–20%. This is because anti-seize acts as a lubricant and lowers friction. In this case, the torque range for M8 titanium hardware is usually between 15 and 22 Nm, but you should always follow the manufacturer's instructions. In a racing setting, you have to use a torque wrench that has been calibrated.

Installation Best Practices

When installing Gr5 titanium axle adjuster bolts M8 into aluminum swingarms, always apply a copper-based or nickel-based anti-seize compound to the threads. Because anti-seize acts as a lubricant and reduces friction, reduce the OEM-specified torque value by approximately 15–20% to achieve accurate clamping force. The typical torque range for M8 titanium hardware in this application falls between 15 and 22 Nm, though always defer to the vehicle manufacturer's specification. Using a calibrated torque wrench is non-negotiable in a racing environment.

Procurement Considerations for Global Buyers

When racing shop owners buy titanium screws from other countries, they have to deal with a unique set of business and logistics problems. These are directly dealt with by Chuanglian.

Here are the most important things that make a solid relationship for buying performance fasteners:

• Small-batch acceptance: Chuanglian accepts orders from 50 to 200 pieces, accommodating the irregular demand cycles common to race teams and boutique modification shops without forcing excess inventory.
• Rapid lead times: Standard production runs ship within 7–10 business days; expedited handling is available during peak racing season when timing is critical.
• Material traceability: Every batch ships with a Material Test Certificate (MTC) to EN 10204 3.1 standard, documenting chemical composition and mechanical properties of the specific production lot.
• Custom anodizing: Riders who specify color-matched hardware receive anodized finishes in Gold, Blue, Purple, Green, or Rainbow through voltage-controlled electrolytic processes. PVD Black is available for maximum surface hardness.

For shops with tight plans during race season, Gr5 titanium axle adjuster bolts M8 directly mean less trouble with buying things. A supplier that knows about the geometry of swingarms, what an SV650 axle block needs, and can ship a tested batch in less than two weeks is more than just a vendor; they are an asset to the supply chain.

Why Ti-6Al-4V Adjuster Bolts Are the Preferred Choice?

As regulations put more pressure on minimum weight limits and riders want hardware that lasts and doesn't rust, the market for racing fasteners is steadily shifting toward titanium. Teams can hit minimum weight limits with lightweight titanium parts that don't compromise structural integrity. This is a benefit in compliance that steel alternatives at the same mass can't match. In their 2023 titanium fastener study, industry experts at Persistence Market Research said that the motorsport and car performance sectors are two of the fastest-growing use cases in the world.

For more than ten years, Chuanglian has been selling titanium fasteners to speed and race customers in the US, Europe, and Japan. They do business out of Baoji, which is known as the center of titanium production in China. The fact that raw materials, machining skills, and high-quality infrastructure are all in one place gives Chuanglian a structural cost and lead-time edge that other selling companies can't match.

Conclusion

Gr5 titanium axle adjuster bolts M8 are in a very specific technical area where weight, strength, resistance to corrosion, and accuracy in measurements all matter at the same time. They are lighter and less likely to rust than steel, stronger and last longer than aluminum when it comes to tensile strength and fatigue life, and they come with material certifications that help with both quality audits and following the rules. The safest way for racing shops and performance service providers to build long-term supply relationships is to buy from a manufacturer that is vertically integrated, has CNC capabilities, and can make parts in small batches.

FAQ

Q1: Are GR5 titanium axle adjuster bolts as strong as the steel bolts they replace?

A: Yes, Ti-6Al-4V has a tensile strength of 950 MPa or higher, which is higher than Grade 8.8 steel's 800 MPa and about the same as Grade 10.9 high-tensile steel. They are a lot stronger than the mild steel that most OEM adjuster bolts are made of.

Q2: Will titanium bolts gall when threaded into aluminum swingarms?

A: Titanium-on-aluminum can galle when there is a lot of torque and no oil is used. Before installing, you should always use an anti-seize substance that is based on copper or nickel.

Q3: How do I verify the material is genuine Grade 5 titanium?

A: Ask your source for a Material Test Certificate (MTC) that meets EN 10204 3.1. The real GR5 titanium is not magnetic and is much lighter than steel. Every shipment from Chuanglian comes with batch-specific MTCs as standard.

Q4: What anodizing colors are available?

A: Voltage-controlled anodizing lets Chuanglian offer Gold, Blue, Green, Purple, and Rainbow. PVD Black is also offered to make the surface harder and less likely to scratch.

Q5: What is the minimum order quantity?

A: With orders starting at 50 pieces, Chuanglian is a good place for race shops whose needs change with the seasons to get Gr5 titanium axle adjuster bolts M8.

Source Your Titanium Fasteners Directly From Chuanglian

The team at Baoji Chuanglian New Metal Material Co., Ltd. is ready to help you with your next purchase. They offer material-certified Gr5 titanium axle adjuster bolts M8 in custom lengths and anodized finishes at competitive prices. You can email us at info@cltifastener.com or djy6580@aliyun.com to get a sample price that is specific to your car fitment and batch size needs.

References

1. ASTM International. ASTM B348: Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. ASTM International, 2019.

2. AMS. AMS 4928: Titanium Alloy Bars, Billets, and Rings, 6Al-4V, Annealed. SAE International, 2020.

3. Donachie, Matthew J. Titanium: A Technical Guide. ASM International, 2000.

4. Leyens, Christoph, and Manfred Peters. Titanium and Titanium Alloys: Fundamentals and Applications. Wiley-VCH, 2003.

5. Persistence Market Research. Titanium Fasteners Market: Global Industry Analysis and Forecast. Persistence Market Research, 2023.

6. ISO. ISO 5832-3: Implants for Surgery — Metallic Materials — Part 3: Wrought Titanium 6-Aluminium 4-Vanadium Alloy. International Organization for Standardization, 2021.
