What Is Ti-6Al4V? Titanium Grade 5 Explained

Ti-6Al4V, commonly known as Grade 5 titanium, is the most flexible and widely used titanium metal in industrial settings around the world. The titanium in this alpha-beta titanium alloy is mixed with 6% aluminum and 4% vanadium to make a material that is very strong for its weight, very resistant to rust, and very long-lasting. While this alloy is used to make many different parts, Ti-6Al4V Gr5 Titanium Flat Washers stand out as being very important for high-performance systems in the aerospace, medical, marine, and automobile fields. They distribute load and protect against damage.

Understanding Ti-6Al4V Titanium Grade 5

Ti-6Al4V titanium alloy is made by carefully controlling a metalworking process that adds pure titanium to aluminum and vanadium. The aluminum content makes it stronger while decreasing its bulk, and the vanadium content makes it harder to break and stronger at high temperatures. Because of this carefully controlled makeup, the alloy has a dual-phase microstructure with both alpha and beta phases, which helps it have great mechanical qualities.

Chemical Composition and Metallurgical Structure

The chemicals that make up Ti-6Al4V are very specific and meet the strict requirements set by ASTM B348 and AMS standards. The metal is mostly made up of titanium (90%), aluminum (5.5–6.75%), vanadium (3.5–4.5%), and small amounts of iron, oxygen, carbon, nitrogen, and hydrogen. Through this exact mix, a microstructure is made that has a high tensile strength of 895–1000 MPa and a yield strength of about 828 MPa.

The dual-phase structure of Ti-6Al4V makes it the perfect mix of strength and flexibility. The alpha phase helps the metal stay stable and be welded, and the beta phase makes it stronger and better at responding to heat treatment. Because of the way the metal is structured, it is perfect for parts that need to be both strong and easy to shape.

Mechanical Properties and Performance Characteristics

Ti-6Al4V has unique mechanical qualities that set it apart from other types of titanium. With a mass of 4.43 g/cm³, the metal is about 45% lighter than stainless steel while still being as strong as or stronger than stainless steel. With an elastic modulus of 114 GPa, the material is very stiff, and its mechanical qualities stay the same at temperatures ranging from very cold to 400°C.

The wear resistance of Ti-6Al4V is very high; at 10^7 cycles, the fatigue strength reaches about 600 MPa. This quality is very useful in situations where loads change over time, like in aircraft structures and spinning machinery parts. The breaking hardness of the material is 44 to 66 MPa√m, which means it will work reliably even when it is loaded with impacts.

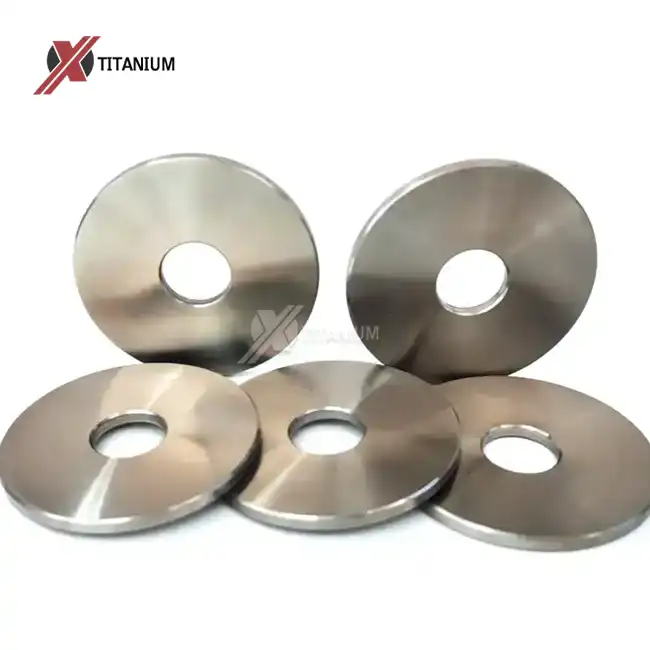

Properties and Benefits of Ti-6Al4V Flat Washers

Grade 5 titanium flat washers have performance benefits that can't be beat, which makes them essential in important situations. These parts use the natural qualities of Ti-6Al4V to offer better load distribution, resistance to rust, and durability compared to other washer materials.

Corrosion Resistance and Environmental Durability

There is a constant titanium dioxide (TiO2) inactive layer on the surface of Ti-6Al4V Gr5 Titanium Flat Washers that keeps them from rusting. This oxide layer heals itself and protects very well against many corrosive conditions, like ocean, acids, chlorides, and industrial chemicals. Titanium washers don't break down in harsh settings like sea and chemical processes, while stainless steel washers can get pitting rust or stress corrosion cracking.

The outdoor longevity goes beyond just being resistant to corrosion. It also includes great performance under UV light, changing temperatures, and weather conditions. Because they don't break down easily in salt spray, acid rain, or industrial pollutants, these washers are great for long-term service and setups outside.

Load Distribution and Mechanical Performance

Ti-6Al4V flat washers are great for spreading out loads because they are both strong and flexible. The washers effectively spread the loads of the fasteners over a bigger surface area. This stops the buildup of bearing stress, which could damage substrates like carbon fiber composites, metal structures, or materials that are easily broken. Because it has a high yield strength, washers stay flat even when they are clamped under heavy loads without permanently changing shape.

Grade 5 titanium's high resistance to wear is especially useful when it is being loaded and unloaded quickly. Washers keep their structural integrity through millions of load cycles, which keeps joints from coming loose and keeps the loading on them for long periods of time. In aerospace uses, where fastener dependability has a direct effect on safety and speed, this trait is very important.

Temperature Stability and Thermal Properties

When used in industrial settings, Grade 5 titanium washers show great heat stability across a wide range of temperatures. From very cold temperatures to 400°C, the material keeps its mechanical qualities. This means it can be used in both high-temperature aerospace processes and high-temperature commercial processes. The low coefficient of thermal expansion (8.6 × 10^-6/°C) keeps thermal stress in systems made of more than one material to a minimum.

Comparative Analysis - Titanium Grade 5 Washers vs Alternatives

To fully understand how Ti-6Al4V washers work better, they need to be compared in detail to other materials that are widely used in industrial settings. This study helps people who work in buying make smart choices based on the needs of the application and long-term value factors.

Ti-6Al4V vs Stainless Steel Washers

There are a number of important benefits to using Ti-6Al4V washers instead of 316L stainless steel washers. Titanium is stronger than stainless steel by about 40%, which makes it possible to use much lighter materials in aircraft and automotive uses. Titanium is more resistant to corrosion than even high-grade stainless steels in chloride-rich settings. This means that pitting corrosion and pocket corrosion can't happen.

Titanium washers are very important in aircraft and medical devices because they don't conduct magnetic fields. This means they don't interact with sensitive electronics and guidance systems. Titanium washers may cost three to five times more than stainless steel at first, but they usually end up costing less in the long run because they last longer and don't need as much upkeep.

Grade 5 vs Grade 2 Titanium Performance

Ti-6Al4V Gr5 Titanium Flat Washers have much better mechanical qualities than Grade 2 titanium washers that are sold in stores. Grade 5's tensile strength (895–1000 MPa) is almost 300% higher than Grade 2's (345 MPa), so it can be used in high-stress situations where Grade 2 wouldn't work. The higher strength lets the washers be thinner while still being able to hold the same amount of weight.

Because Grade 5 responds well to heat treatment, controlled cooling and age methods can be used to make it even stronger. This feature gives makers the freedom to change the mechanical qualities to fit the needs of a particular application, which isn't possible with Grade 2 titanium.

Cost-Benefit Analysis and Value Proposition

Even though titanium washers cost more at first, the total cost study shows that they are a great choice for demanding uses. The longer service life—usually two to three times longer than stainless steel in settings that rust—lowers the cost of replacement and downtime for upkeep. The lighter materials help vehicles use less gas and aircraft systems have lighter structures that carry more weight.

Purchasing and Procurement Guide for Ti-6Al4V Flat Washers

To get high-quality Grade 5 titanium washers, you need to pay close attention to the qualifications of the seller, the certifications of the materials, and the quality control methods. Knowing about these things makes sure that you can always get parts that meet strict performance standards.

Supplier Qualification and Certification Requirements

Ti-6Al4V Gr5 Titanium Flat Washers from reputable providers have full quality management systems that are approved to AS9100, ISO 9001, and standards specific to the industry. These certificates show that the company is dedicated to quality control methods that are important for medical devices and aerospace uses. Suppliers should give full material tracking from the source of the raw materials to the final check. This should include mill test records and chemical composition analyses.

Checking a supplier's skills involves looking at their production methods, inspection tools, and professional know-how. Leading providers keep processing centers with controlled atmospheres, precision machining tools, and certified testing labs. Premium suppliers are different from commodity suppliers because they can offer custom solutions and tech help.

Quality Assurance and Testing Protocols

Comprehensive quality assurance encompasses inspection of arriving materials, controls during production, and proof of the finished product. Material certification should include chemical composition analysis, mechanical property tests, and dimensional inspection records. Ultrasonic screening and dye penetrant testing are examples of non-destructive testing methods that can be used to make sure that the inside and outside of something is sound.

Statistical process control and group tracking tools make it possible to keep quality high and quickly fix any problems with quality. To support efforts to keep getting better, suppliers should keep thorough records of processing parameters, inspection results, and customer comments.

Procurement Strategies and Supply Chain Management

Lead times, minimum order amounts, and inventory management needs are all things that should be thought about when making a buying strategy for titanium washers. Standard configurations usually have lead times between 6 and 12 weeks, but important uses can get them faster. Setting up framework deals with qualified providers makes sure that priority is given and prices stay stable when the market changes.

To lower the risk in the supply chain, you should qualify multiple sources, keep strategic inventory levels, and set up different material standards when needed. Partnering with suppliers for a long time can help with professional support, product growth, and making sure there is a steady flow of goods.

Applications and Industry Use Cases of Ti-6Al4V Flat Washers

Because Grade 5 titanium washers are so flexible and work well, they can be used in many different businesses where dependability, resistance to corrosion, and weight reduction are very important. By understanding these uses, you can see the value offer and market possibilities for these specialized parts.

Aerospace and Defense Applications

The biggest market for Ti-6Al4V Gr5 Titanium Flat Washers is in aerospace uses, where lighter weight and greater dependability directly affect safety and fuel economy. A lot of these washers are used in engine mounts, landing gear systems, aircraft structures, and control surface fasteners. Because they are strong, don't rust, and don't wear down easily, they are perfect for main structural uses that must meet strict approval standards.

Military and defense applications leverage the non-magnetic properties and environmental resistance of titanium washers in radar systems, communication equipment, and weapon systems. The ability to maintain performance under extreme temperature variations and harsh environmental conditions ensures mission reliability in critical applications.

Medical Device and Biomedical Applications

Because Ti-6Al4V is biocompatible and doesn't rust, these washers can be used in medical devices that need to be implanted or sterilized for a long time. Titanium washers are used to make sure that surgical tools, orthopedic implants, and testing equipment are safe for patients and reliable. Because it is non-toxic and works well with many types of tissue, there are no worries about bad biological responses.

Medical gadget makers like that certified titanium suppliers offer uniform quality and can be tracked. Being able to go through multiple cleaning processes without breaking down ensures long-term dependability in critical healthcare settings.

Marine and Offshore Engineering

Marine applications exploit the exceptional seawater corrosion resistance of Grade 5 titanium washers in subsea equipment, offshore platforms, and marine power systems. The complete immunity to chloride-induced corrosion eliminates maintenance requirements and ensures reliable operation in harsh marine environments. Applications include underwater vehicles, seawater piping systems, and marine research equipment.

The lightweight nature of titanium washers contributes to payload optimization in marine applications where weight and buoyancy are critical design considerations. The long-term reliability reduces maintenance costs and downtime in remote offshore installations.

Conclusion

Ti-6Al4V Grade 5 titanium is the best titanium alloy ever made. It has the best mix of strength, resistance to corrosion, and flexibility, which is why it is used in so many high-performance industries. Because this alpha-beta alloy has special qualities like a higher strength-to-weight ratio and the ability to last in harsh environments, it is the best choice for important uses in the aircraft, medical, marine, and automobile industries. Ti-6Al4V Gr5 Titanium Flat Washers are a good example of these benefits because they reliably distribute pressure and protect components in tough construction tasks where other materials fail. Engineers and procurement workers can make good use of this advanced material in their work by understanding its metallurgical qualities, performance traits, and sourcing issues.

FAQ

What makes Ti-6Al4V different from other titanium grades?

Ti-6Al4V is different because it has an alpha-beta crystal that was made by adding aluminum and vanadium. This gives it a compressive strength of 895–1000 MPa, which is higher than Grade 2 titanium's 345 MPa. This makes it stronger so it can be used in high-stress situations while still being biocompatible and resistant to rust.

How do Ti-6Al4V washers compare to stainless steel in corrosive environments?

Ti-6Al4V Gr5 Titanium Flat Washers make them more resistant to corrosion than stainless steel because the titanium dioxide layer on their surface heals itself. This prevents pitting corrosion and stress corrosion cracks that happen in stainless steel. When used in chloride-rich areas, like marine settings, this benefit stands out even more.

What certifications should I look for when purchasing Grade 5 titanium washers?

Suppliers of good quality should offer material certifications from ASTM B348 or AMS, certifications for the AS9100 quality system, and full paperwork for tracking materials. Reports on chemical composition analysis, mechanical property tests, and dimensional checking make sure that the product meets the requirements.

Can Ti-6Al4V washers be used in high-temperature applications?

Grade 5 titanium keeps its mechanical properties up to 400°C, which means it can be used in high-temperature aircraft motors and industrial processes. The low thermal expansion rate and thermal stability of the material keep multi-material structures from experiencing thermal stress.

What are typical lead times for custom Ti-6Al4V washer orders?

Standard lead times vary from 6 to 12 weeks, based on the amount and specs. For urgent needs, faster shipping is also possible. For regular needs, providers usually offer framework deals, but custom configurations may need more engineering time.

Partner with Chuanglian for Premium Ti-6Al4V Titanium Solutions

Baoji Chuanglian New Metal Material Co., Ltd. is your reliable source for Ti-6Al4V Gr5 Titanium Flat Washers. We have been making titanium products for over ten years in China's famous "City of Titanium." Our strict quality control system tests every washer from the raw materials to the finished product to make sure it meets ASTM and AMS standards. We offer precision-engineered titanium parts that work better than expected in aircraft, medical, and marine uses thanks to our AS9100 certification and advanced CNC machining skills.

Our technical team can help you choose the right materials and make the best use of them for your project. They can also help you make sure your project is a success by keeping to plan and offering low prices. Get in touch with our technical experts at info@cltifastener.com or djy6580@aliyun.com to talk about your unique needs and get personalized quotes. Our full line of titanium fixing options are made for tough industrial uses.

References

1. Boyer, R., Welsch, G., & Collings, E.W. Materials Properties Handbook: Titanium Alloys. ASM International, 1994.

2. Donachie, Matthew J. Titanium: A Technical Guide, 2nd Edition. ASM International, 2000.

3. Lutjering, Gerd & Williams, James C. Titanium: Engineering Materials and Processes. Springer-Verlag Berlin Heidelberg, 2007.

4. American Society for Testing and Materials. ASTM B348-13 Standard Specification for Titanium and Titanium Alloy Bars and Billets. ASTM International, 2013.

5. Aerospace Material Specification. AMS 4928: Titanium Alloy Bars, Wire, Forgings, and Rings. SAE International, 2019.

6. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. Titanium Alloys for Aerospace Applications. Advanced Engineering Materials, Volume 5, Issue 6, 2003.
